Schneider Electric Preventa Series PLC Expansion Module, 4 Safety Inputs, 24V
- RS 제품 번호:
- 276-2708
- 제조사 부품 번호:
- XPSMCMAI0400G
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩2,824,419.00
제조사가 재고 비축중
- 2026년 5월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,824,419.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 276-2708
- 제조사 부품 번호:
- XPSMCMAI0400G
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | PLC Expansion Module | |
| Series | Preventa | |
| Number of Safety Inputs | 4 | |
| Mount Type | DIN Rail | |
| Safety Category | CAT 4 | |
| Supply Voltage | 24V | |
| Terminal Type | Spring Clamp | |
| Depth | 114.5mm | |
| Width | 22.5mm | |
| Standards/Approvals | EN/IEC 61508, EN/ISO 13849-1, EN/IEC 61800-5-1, IEC 62061 | |
| IP Rating | IP20 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type PLC Expansion Module | ||
Series Preventa | ||
Number of Safety Inputs 4 | ||
Mount Type DIN Rail | ||
Safety Category CAT 4 | ||
Supply Voltage 24V | ||
Terminal Type Spring Clamp | ||
Depth 114.5mm | ||
Width 22.5mm | ||
Standards/Approvals EN/IEC 61508, EN/ISO 13849-1, EN/IEC 61800-5-1, IEC 62061 | ||
IP Rating IP20 | ||
제외
- COO (Country of Origin):
- IT

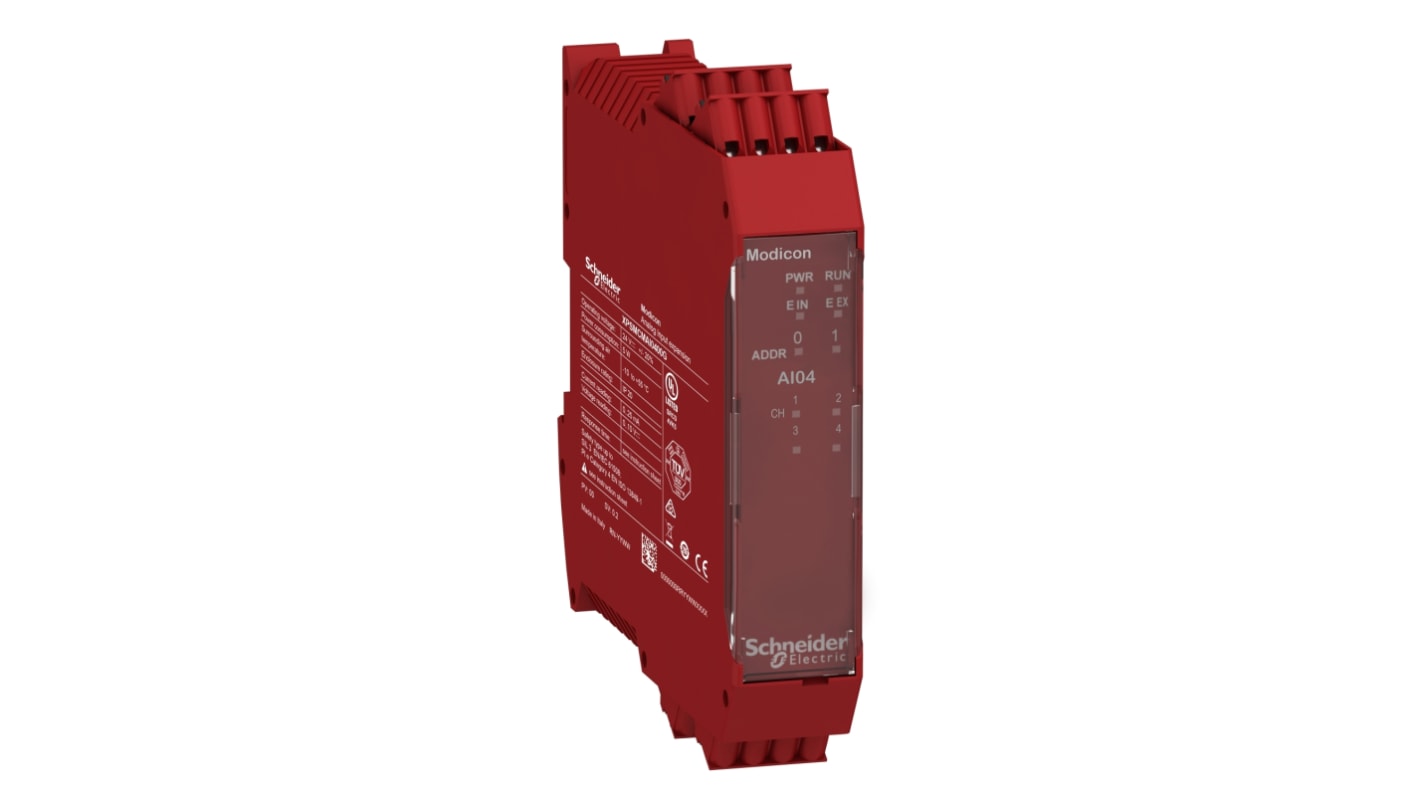

The Schneider Electric I/O expansion module has 4 configurable analogue inputs and is fitted with captive spring clamp terminals. It is designed to monitor remotely safe I/O. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe I/O module figures configurable filters and delays for each single input. This module figures LEDs on its front face, displaying the status. This safe I/O module is connected to the safety controller via the backplane expansion connector.
Operational temperature -10 to 55 °C
Overvoltage category II
