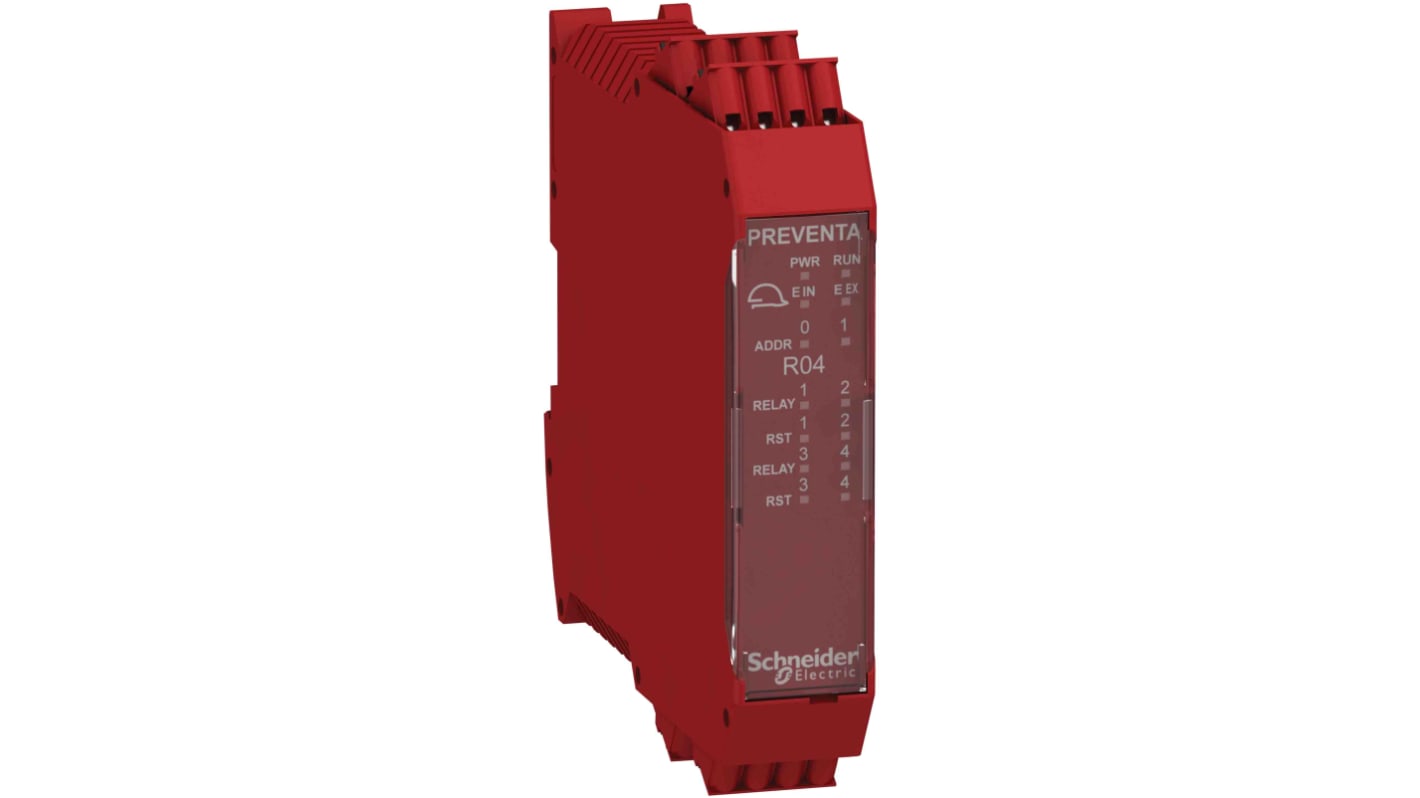

Schneider Electric Preventa Series Safety Controller, 8 Safety Inputs, 4 Safety Outputs, 24V dc
- RS 제품 번호:
- 211-2480
- 제조사 부품 번호:
- XPSMCMRO0004G
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩937,638.00
제조사가 재고 비축중
- 2026년 6월 26일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩937,638.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 211-2480
- 제조사 부품 번호:
- XPSMCMRO0004G
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Series | Preventa | |
| Product Type | Safety Controller | |
| Number of Safety Inputs | 8 | |
| Number of Safety Outputs | 4 | |
| Display Type | LED | |
| Safety Category | CAT 4 | |
| Mount Type | DIN Rail | |
| Expansion Available | Yes | |
| Supply Voltage | 24V dc | |
| Width | 22.5mm | |
| Terminal Type | Spring Terminal | |
| Depth | 114.5mm | |
| Standards/Approvals | EN/ISO 13849-1, EN/IEC 61508, IEC 62061, EN/IEC 61800-5-1 | |
| IP Rating | IP20 | |
| Better World Product | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Series Preventa | ||
Product Type Safety Controller | ||
Number of Safety Inputs 8 | ||
Number of Safety Outputs 4 | ||
Display Type LED | ||
Safety Category CAT 4 | ||
Mount Type DIN Rail | ||
Expansion Available Yes | ||
Supply Voltage 24V dc | ||
Width 22.5mm | ||
Terminal Type Spring Terminal | ||
Depth 114.5mm | ||
Standards/Approvals EN/ISO 13849-1, EN/IEC 61508, IEC 62061, EN/IEC 61800-5-1 | ||
IP Rating IP20 | ||
Better World Product Yes | ||
제외
- COO (Country of Origin):
- IT
The Schneider Electric Preventa XPSMCM expansion modules with 4 independent safety relay outputs and the corresponding 4 inputs for the external feedback contacts (EDM).The relay can be configured according to Category 1, 2 and 4 architectures.
Spring clamp Connector type
