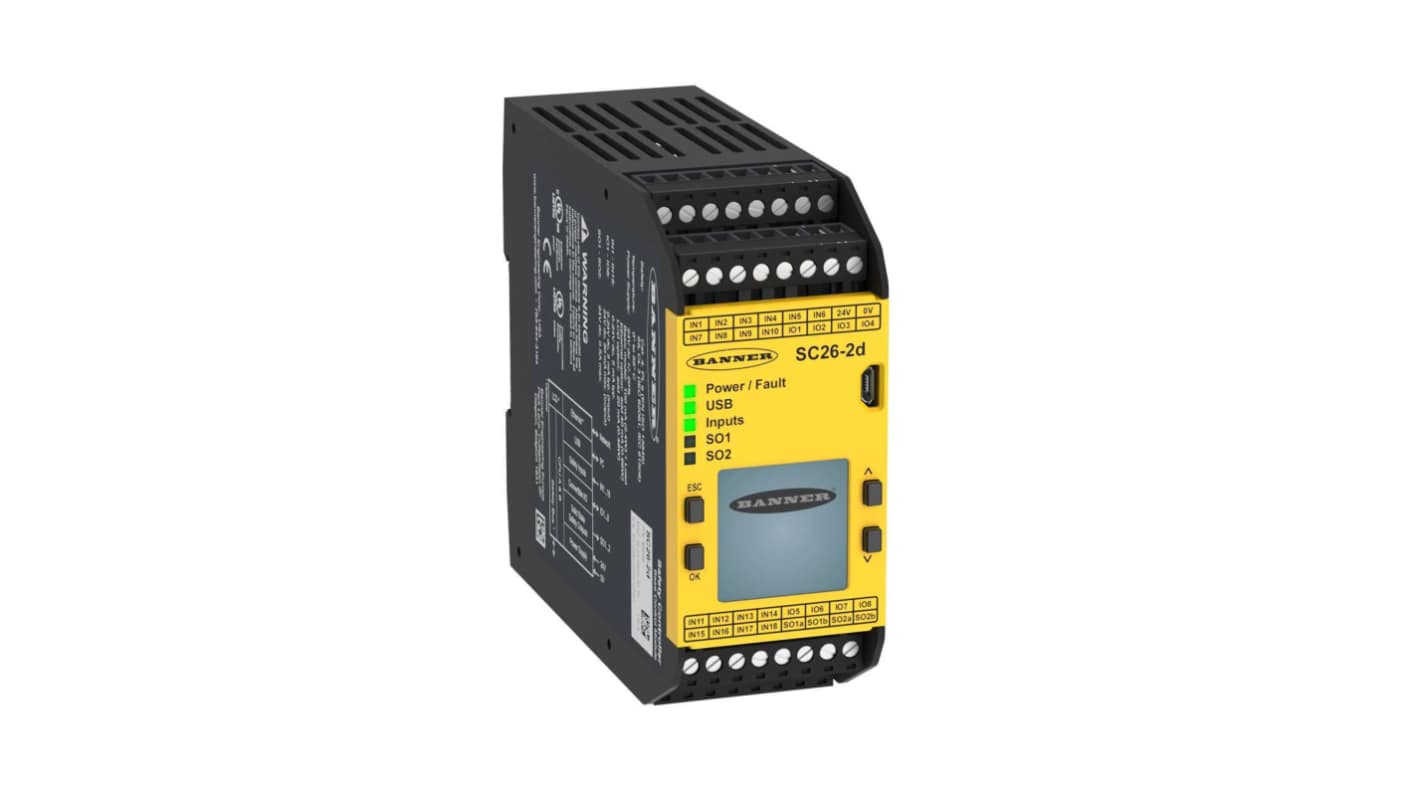

Banner XS/SC26 Series Safety Controller, 26 Safety Inputs, 4 Safety Outputs, 24V dc
- RS 제품 번호:
- 294-982
- 제조사 부품 번호:
- SC26-2D
- 제조업체:
- Banner
Subtotal (1 unit)*
₩1,483,590.00
제조사가 재고 비축중
- 2026년 11월 25일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,483,590.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 294-982
- 제조사 부품 번호:
- SC26-2D
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Product Type | Safety Controller | |
| Series | XS/SC26 | |
| Number of Safety Inputs | 26 | |
| Number of Safety Outputs | 4 | |
| Display Type | LCD | |
| Safety Category | ISO 13849-1, ISO 12100 | |
| Mount Type | DIN Rail | |
| Field Bus Communication Type | Ethernet | |
| Expansion Available | No | |
| Supply Voltage | 24V dc | |
| Number of I/Os | 28 | |
| Contact Current | 50mA | |
| Contact Voltage | 24V dc | |
| Depth | 129mm | |
| Length | 110mm | |
| Width | 45mm | |
| Standards/Approvals | EN 61508, RoHS, EN 61131-2, IEC 61131-2, UKCA, EMC, TUV, CE, EN IEC 63000, EN ISO 13849-1, EN 61326-3 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Product Type Safety Controller | ||
Series XS/SC26 | ||
Number of Safety Inputs 26 | ||
Number of Safety Outputs 4 | ||
Display Type LCD | ||
Safety Category ISO 13849-1, ISO 12100 | ||
Mount Type DIN Rail | ||
Field Bus Communication Type Ethernet | ||
Expansion Available No | ||
Supply Voltage 24V dc | ||
Number of I/Os 28 | ||
Contact Current 50mA | ||
Contact Voltage 24V dc | ||
Depth 129mm | ||
Length 110mm | ||
Width 45mm | ||
Standards/Approvals EN 61508, RoHS, EN 61131-2, IEC 61131-2, UKCA, EMC, TUV, CE, EN IEC 63000, EN ISO 13849-1, EN 61326-3 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
- COO (Country of Origin):
- US
The Banner Safety Controller is a non-expandable model with 26 inputs and two pairs of PNP safety outputs (0.5 A each). It features a display for easy monitoring and operation, and does not include Ethernet connectivity, making it a straightforward solution for safety control applications.
IP20 protection rated
