Banner SC10-2 Series Safety Controller, 10 Safety Inputs, 2 Safety Outputs, 24V dc
- RS 제품 번호:
- 188-1247
- 제조사 부품 번호:
- SC10-2ROE
- 제조업체:
- Banner
Subtotal (1 unit)*
₩1,042,548.00
재고있음
- 2 개 단위 배송 준비 완료
- 추가로 2026년 5월 11일 부터 2 개 단위 배송
- 추가로 2026년 7월 06일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,042,548.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 188-1247
- 제조사 부품 번호:
- SC10-2ROE
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Product Type | Safety Controller | |
| Series | SC10-2 | |
| Number of Safety Inputs | 10 | |
| Number of Safety Outputs | 2 | |
| Display Type | LED Indicator | |
| Safety Category | EN ISO 13849 | |
| Mount Type | Chassis | |
| Field Bus Communication Type | Profibus, Modbus | |
| Expansion Available | No | |
| Supply Voltage | 24V dc | |
| Contact Current | 50mA | |
| Number of I/Os | 10 | |
| Contact Voltage | 24V dc | |
| Width | 100mm | |
| Standards/Approvals | No | |
| Terminal Type | Spring Clamp | |
| Length | 45mm | |
| Depth | 115mm | |
| IP Rating | IP20 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Product Type Safety Controller | ||
Series SC10-2 | ||
Number of Safety Inputs 10 | ||
Number of Safety Outputs 2 | ||
Display Type LED Indicator | ||
Safety Category EN ISO 13849 | ||
Mount Type Chassis | ||
Field Bus Communication Type Profibus, Modbus | ||
Expansion Available No | ||
Supply Voltage 24V dc | ||
Contact Current 50mA | ||
Number of I/Os 10 | ||
Contact Voltage 24V dc | ||
Width 100mm | ||
Standards/Approvals No | ||
Terminal Type Spring Clamp | ||
Length 45mm | ||
Depth 115mm | ||
IP Rating IP20 | ||
- COO (Country of Origin):
- US

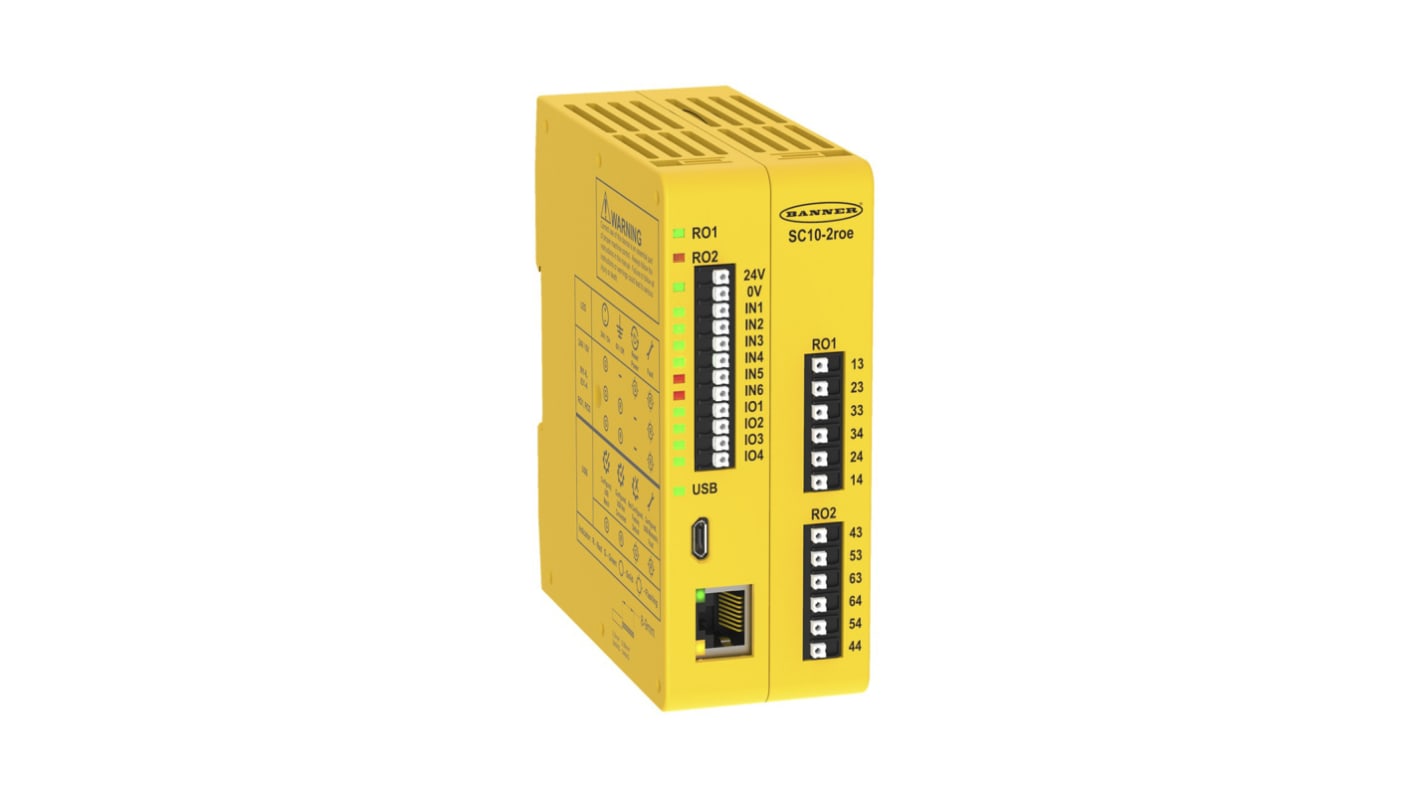

Banner Safety Controller, 10 Inputs, Push-In Terminals - SC10 Series - SC10-2ROE
Keep your machine guard doors and light curtains in check with this safety controller from Banner. The all-round monitor does the job of a three-safety relay, helping to reduce installation time and wiring complexities. Setting up the device is a breeze, thanks to its drag-and-drop PC configuration and icon-based programming. Its in-series diagnostics mean it provides detailed data, so you can stay up to speed with your safety tools' performance. A long mechanical lifespan of up to 20 million operations means you can count on this component to go the extra mile, even in harsh operating environments.
• IP20 rating means it's finger-safe and protected against objects larger than 12mm
• Push-in spring clamp terminals for quick and trouble-free wiring
• Voltage rating of 24V DC for use in low-power systems
• Wide operating temperature range of 0°C to +55°C for use in demanding environments
Applications
• Automated assembly lines
• Medical and pharmaceutical manufacturing
• Oil and gas industries
• Aerospace engineering
SC10-2ROE Safety Controller, 10 Inputs 2 Relay Outputs (3 NO, 6 Amp each), Terminal LEDs, 4 Convertible Inputs, Push-in Spring Clamp Terminals, 24 V dc, 240 to 580 mA
How do I monitor the status of this safety controller?
This safety controller has multiple LED indicators, so you can determine its operating status in the blink of an eye.
