RS PRO PT100 RTD Detector, 1.5mm Dia, 15mm Long, 2 Wire, Probe, Pack A +650°C Max
- RS 제품 번호:
- 262-3184
- 제조업체:
- RS PRO
Subtotal (1 pack of 5 units)*
₩136,224.80
재고있음
- 5 개 단위 배송 준비 완료
- 추가로 2026년 2월 16일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 + | ₩27,244.96 | ₩136,224.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 262-3184
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Sensor Type | PT100 | |
| Probe Length | 15mm | |
| Probe Diameter | 1.5mm | |
| Minimum Temperature Sensed | -200°C | |
| Maximum Temperature Sensed | +650°C | |
| Termination Type | Solder | |
| Probe Material | Platinum | |
| Process Connection | Probe | |
| Number Of Wires | 2 | |
| Accuracy | Pack A | |
| Response Time | 0.4s | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Sensor Type PT100 | ||
Probe Length 15mm | ||
Probe Diameter 1.5mm | ||
Minimum Temperature Sensed -200°C | ||
Maximum Temperature Sensed +650°C | ||
Termination Type Solder | ||
Probe Material Platinum | ||
Process Connection Probe | ||
Number Of Wires 2 | ||
Accuracy Pack A | ||
Response Time 0.4s | ||
- COO (Country of Origin):
- GB

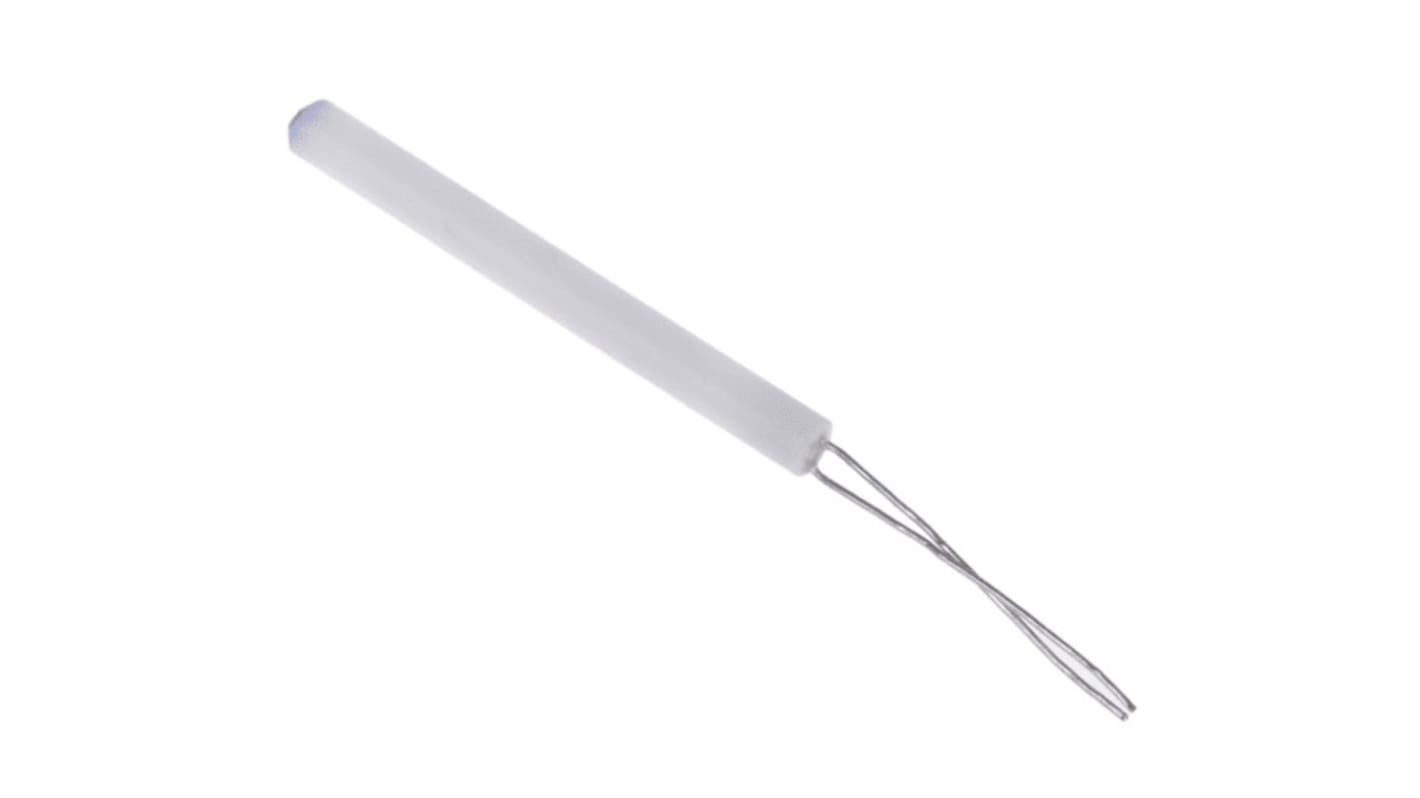

RS PRO Wire Wound Pt100 Resistance Temperature Detector (1.5 x 15mm)
A high quality and reliable wire wound Pt100 RTD (Resistance Temperature Detector) often referred to as a PRT (Platinum Resistance Thermometer) featuring a spiral wound wire designed to expand and contract in response to temperature changes for a highly accurate temperature reading.
The RTD temperature sensor features a cylindrical design perfect for insertion into tubes or sheaths or immersion readings and is constructed from Platinum for its excellent response time to temperature changes and high levels of resistivity.
Suitable for a wide range of applications and environments due to their high level of reliability including in laboratories, air liquid and gas measurement, chemical processing, and the automotive industry.
Supplied in packs of 5, for packs of 1 see RS PRO 611-7839
Features and Benefits
Platinum Wire Wound RTD
Class A tolerance
High reliability and accurate output
A fast thermal response time of 0.4s
Temperature resistance of 100Ω
Temperature measurement range from -200 to +650°C
10 mm lead wires
Class A tolerance
High reliability and accurate output
A fast thermal response time of 0.4s
Temperature resistance of 100Ω
Temperature measurement range from -200 to +650°C
10 mm lead wires
Standards and Approvals: IEC 60751
What is an RTD?
An RTD is a type of temperature sensor based on the correlation between metals and temperature. As the temperature of a metal increases so does the resistance to the flow of electricity. This resistance is then measured and converted to a temperature reading.
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Note
