RS PRO PT100 RTD Detector, 1.5mm Dia, 25mm Long, Probe, +650°C Max
- RS 재고 번호:
- 174-1657
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩33,727.20
재고있음
- 53 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 - 4 | ₩33,727.20 |
| 5 + | ₩27,748.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 174-1657
- 제조업체:
- RS PRO
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Sensor Type | PT100 | |
| Probe Length | 25mm | |
| Probe Diameter | 1.5mm | |
| Minimum Temperature Sensed | -200°C | |
| Maximum Temperature Sensed | +650°C | |
| Termination Type | Solder | |
| Probe Material | Aluminia Ceramic (Body) | |
| Process Connection | Probe | |
| Response Time | 0.4 s | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Sensor Type PT100 | ||
Probe Length 25mm | ||
Probe Diameter 1.5mm | ||
Minimum Temperature Sensed -200°C | ||
Maximum Temperature Sensed +650°C | ||
Termination Type Solder | ||
Probe Material Aluminia Ceramic (Body) | ||
Process Connection Probe | ||
Response Time 0.4 s | ||
- COO (Country of Origin):
- GB
RS PRO Sensor

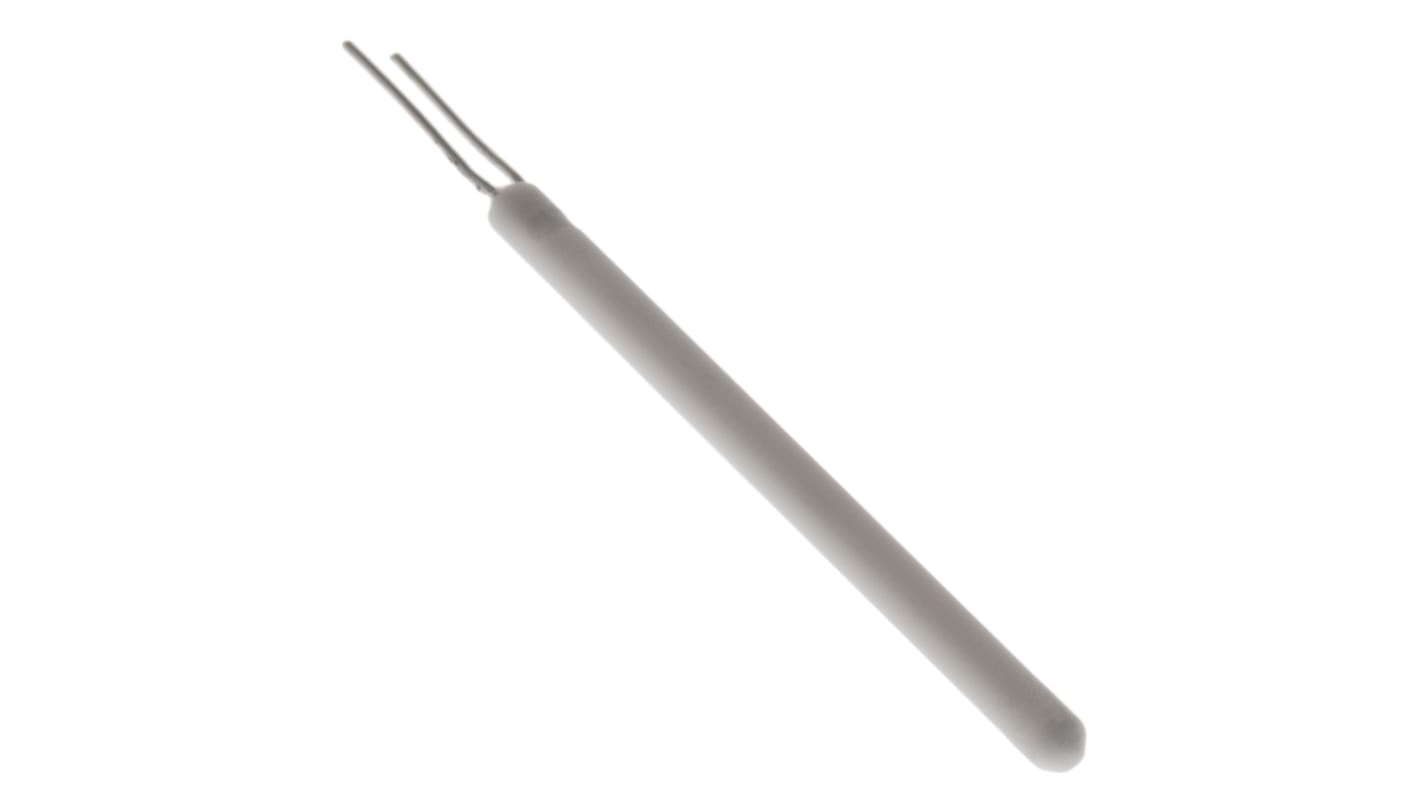

The RS PRO 2 wire resistance thermometer has a Pt100 type sensor. It has a 25mm long probe and a diameter of 1.5mm. It has a class A tolerance sensor. The wire wound RTD is suitable for general applications requiring long term stability.
Features and Benefits
• 0.4s response time
• 100ohm resistance at 0°C
• 10mm tails
• Compact in dimensions
• Optimum performance and stability
• Platinum coil wire wound construction sealed inside a high purity alumina ceramic body
• Service temperature ranges between -200°C and 650°C
• 100ohm resistance at 0°C
• 10mm tails
• Compact in dimensions
• Optimum performance and stability
• Platinum coil wire wound construction sealed inside a high purity alumina ceramic body
• Service temperature ranges between -200°C and 650°C
Applications
• Thermometers
Certifications
• IEC 60751
