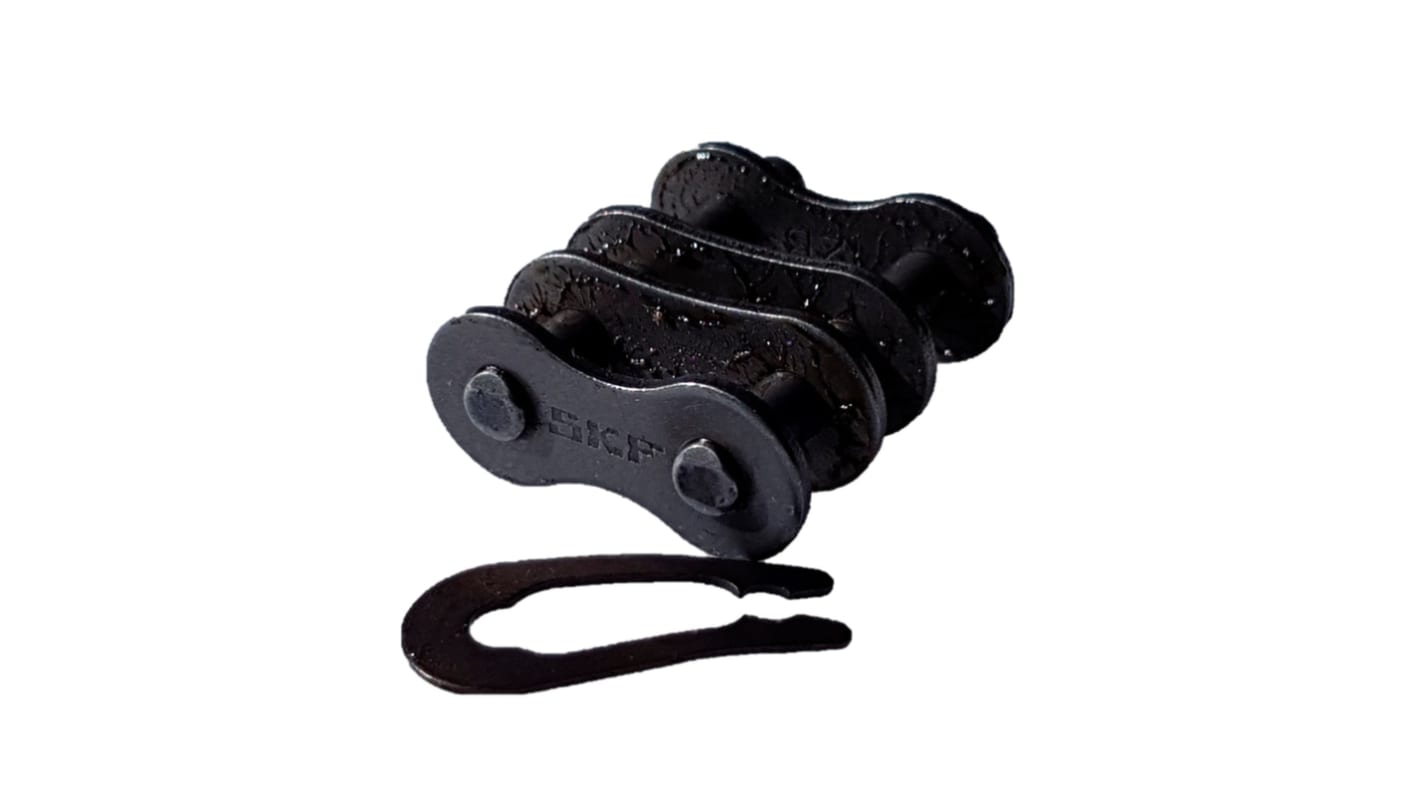

SKF PHC 12B-2 Connecting Link Carbon Steel Roller Chain Link

RS 제품 번호:: 267-9730
제조사 부품 번호:: PHC 12B-2C/L
제조업체:: SKF

SKF PHC 12B-2 Connecting Link Carbon Steel Roller Chain Link

모든 Roller Chain Links 열람하기

Subtotal (1 unit)*

₩4,800.00

재고있음

72 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩4,800.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 267-9730
제조사 부품 번호:: PHC 12B-2C/L
제조업체:: SKF

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SKF
	Chain Type	12B-2
	Product Type	Roller Chain Link
	Mechanical Link Type	Connecting Link
	Material	Carbon Steel
	Pitch	19.05mm
	Series	PHC
	Width Between Roller Link Plates	11.68mm
	Pin Type	Transmission Chain Link
	Standards/Approvals	BS
	Roller Diameter	12.07mm

	모두 선택
	브랜드 SKF
	Chain Type 12B-2
	Product Type Roller Chain Link
	Mechanical Link Type Connecting Link
	Material Carbon Steel
	Pitch 19.05mm
	Series PHC
	Width Between Roller Link Plates 11.68mm
	Pin Type Transmission Chain Link
	Standards/Approvals BS
	Roller Diameter 12.07mm

Datasheet - PHC 12B-2C/L

로그인하여 CAD 모델 다운로드

COO (Country of Origin):: CN

SKF PHC Series Roller Chain Link, 19.05mm Pitch, 12.07mm Roller Diameter - PHC 12B-2C/L

This roller chain link is a mechanical connecting component designed to join sections of industrial roller chain for transmission applications. It is intended for use where robust connection and standard conformity are required, operating within typical power-transmission assemblies in manufacturing and material-handling equipment.

Features and Benefits:

• Carbon steel construction provides Durable wear resistance
• BS approval ensures conformity with recognised standards
• Transmission-style pin offers secure load transfer under tension
• Mechanical connecting link format simplifies on-site assembly
• PHC series design supports compatibility with matched chains

Applications

• Suitable for conveyor drive assemblies in factories
• Ideal for power transmission in light industrial machinery
• Used with sprockets in material-handling systems
• Can be used for repair of installed roller chains
• Appropriate for field maintenance of drive lines

How is the link secured within a chain assembly?

It uses a transmission-type pin within a mechanical connecting link arrangement to engage adjacent plates and transfer tensile load.

What material properties influence its service life?

The carbon steel composition provides the fundamental hardness and wear characteristics necessary for repeated articulation and bearing contact.

Which dimension dictates pitch compatibility with sprockets?

The 19.05 mm pitch determines engagement spacing and must match the mating sprocket tooth spacing.

How does plate spacing affect chain alignment?

The 11.68 mm width between link plates controls lateral tolerance and helps maintain correct sprocket alignment during operation.

What roller size must sprocket teeth accommodate?

The roller diameter of 12.07 mm sets the rolling contact profile that interacting sprocket teeth and links must accept.
