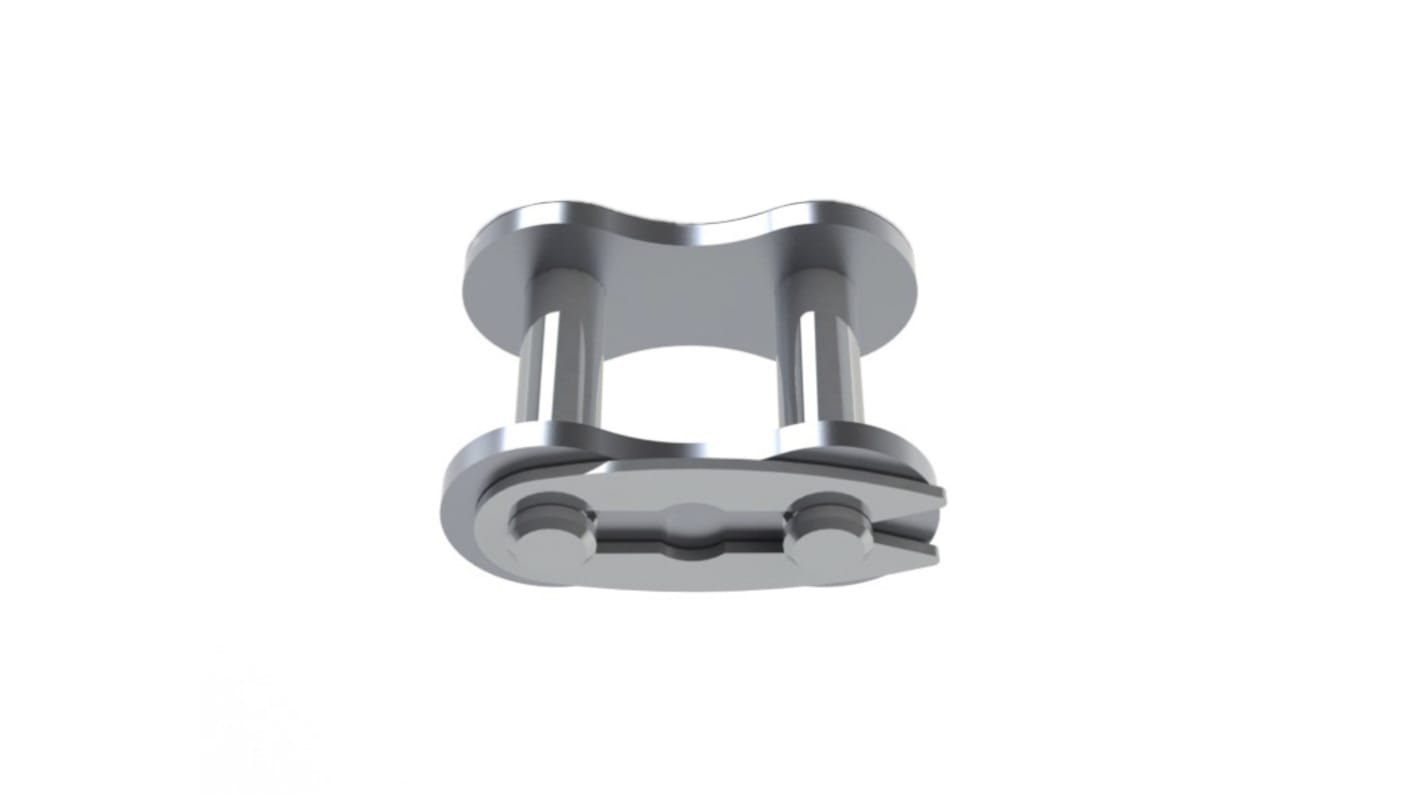

Sedis ALPHA 06B-1 Spring Clip Stainless Steel Roller Chain Link

모든 Roller Chain Links 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Bag of 5 units)*

₩24,921.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 25 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Bag(s)
Per Bag
한팩당*
1 - 4₩24,921.00₩4,984.20
5 - 9₩23,907.00₩4,781.40
10 - 24₩23,419.50₩4,683.90
25 +₩22,932.00₩4,586.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
161-7348
제조사 부품 번호:
3NIN6P05206
제조업체:
Sedis
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Sedis

Product Type

Roller Chain Link

Chain Type

06B-1

Mechanical Link Type

Spring Clip

Material

Stainless Steel

Series

ALPHA

Pitch

9.53mm

Width Between Roller Link Plates

5.77mm

Pin Type

Spring Clip

Standards/Approvals

DIN 8187, BS 228

Roller Diameter

6.35mm

제외

From 08B to 16B

Pins and plates in stainless steel series 300

Solid bushes in stainless steel series 300

Extruded rollers in stainless steel series 300

Other chains of the range :

Articulations and plates in Stainless steel series 300

Solid rollers in stainless steel series 300

Chains without initial lubrication

These chains are designed for use in high power transmission systems.

These chains are designed for use in high power transmission systems.

These chains correspond to the following national standards, British Standard BS 228 (short pitch chains), German Standard DIN8187 (short pitch chains) and DIN8181 (long pitch chains)

In these conditions, our chains are interchangeable with all other chains produced to the quoted standards.
