RF Solutions QUANTA-4S4 Remote Control System,433 MHz 100 m
- RS 제품 번호:
- 264-7789
- 제조사 부품 번호:
- QUANTA-4S4
- 제조업체:
- RF Solutions
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩200,811.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩200,811.00 |
| 10 - 24 | ₩192,796.50 |
| 25 + | ₩185,094.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 264-7789
- 제조사 부품 번호:
- QUANTA-4S4
- 제조업체:
- RF Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RF Solutions | |
| Frequency | 433MHz | |
| Product Type | Remote Control System | |
| Modulation | FM | |
| Number of Channels | 4 | |
| Number of Key Fob Buttons | 4 | |
| Nominal Supply Voltage | 12/30 V dc | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 13mm | |
| Standards/Approvals | CE | |
| Width | 65mm | |
| Range | 100 m | |
| Depth | 90mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RF Solutions | ||
Frequency 433MHz | ||
Product Type Remote Control System | ||
Modulation FM | ||
Number of Channels 4 | ||
Number of Key Fob Buttons 4 | ||
Nominal Supply Voltage 12/30 V dc | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Height 13mm | ||
Standards/Approvals CE | ||
Width 65mm | ||
Range 100 m | ||
Depth 90mm | ||
- COO (Country of Origin):
- GB

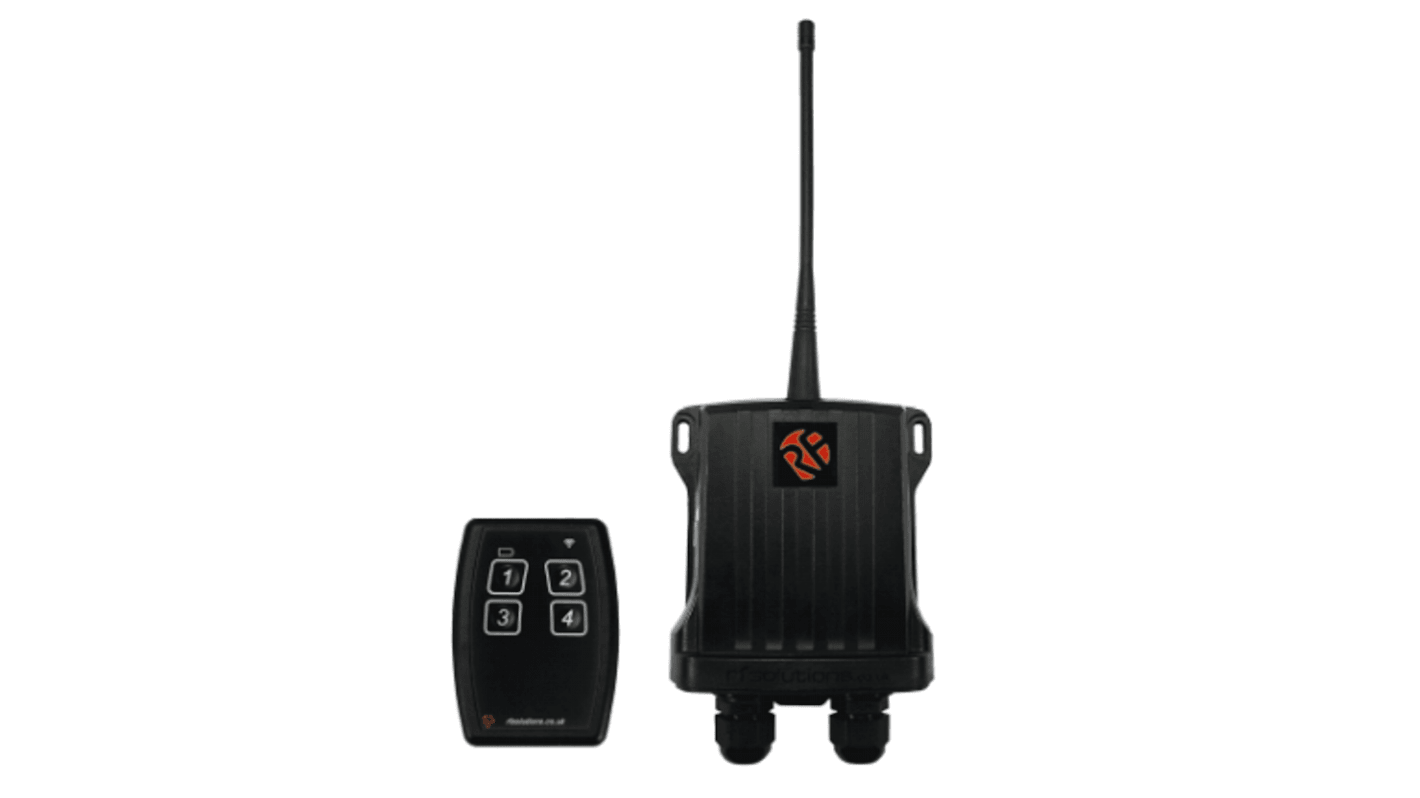

The RF Solutions QUANTA is a versatile general purpose remote control system consisting of the transmitter and receiver. The output relays are activated by the button press on the transmitter. Each relay output can be controlled from any switch on any QUANTA transmitter. Additional transmitters may be added to the system using the same easy-learn process without opening the receiver enclosure. This remote control is used in wide variety of applications such as industrial remote control, electric gates, roller shutter doors, etc.
Up to 100 m range
Splash proof transmitter with IP54 rating
Waterproof receiver with IP68 rating
High security RF protocol
