제조사부품번호

RF Solutions QUANTA-4S2 Remote Control System,433 MHz 100 m

RS 제품 번호:: 264-7788
제조사 부품 번호:: QUANTA-4S2
제조업체:: RF Solutions

RF Solutions QUANTA-4S2 Remote Control System,433 MHz 100 m

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩217,522.50

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 - 9	₩217,522.50
10 - 24	₩208,825.50
25 - 49	₩198,393.00
50 - 99	₩195,390.00
100 +	₩191,509.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 264-7788
제조사 부품 번호:: QUANTA-4S2
제조업체:: RF Solutions

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RF Solutions
	Product Type	Remote Control System
	Frequency	433MHz
	Modulation	FM
	Number of Channels	2
	Number of Key Fob Buttons	2
	Nominal Supply Voltage	12/30 V dc
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Height	13mm
	Depth	90mm
	Width	65mm
	Standards/Approvals	CE
	Range	100 m

	모두 선택
	브랜드 RF Solutions
	Product Type Remote Control System
	Frequency 433MHz
	Modulation FM
	Number of Channels 2
	Number of Key Fob Buttons 2
	Nominal Supply Voltage 12/30 V dc
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Height 13mm
	Depth 90mm
	Width 65mm
	Standards/Approvals CE
	Range 100 m

COO (Country of Origin):: GB

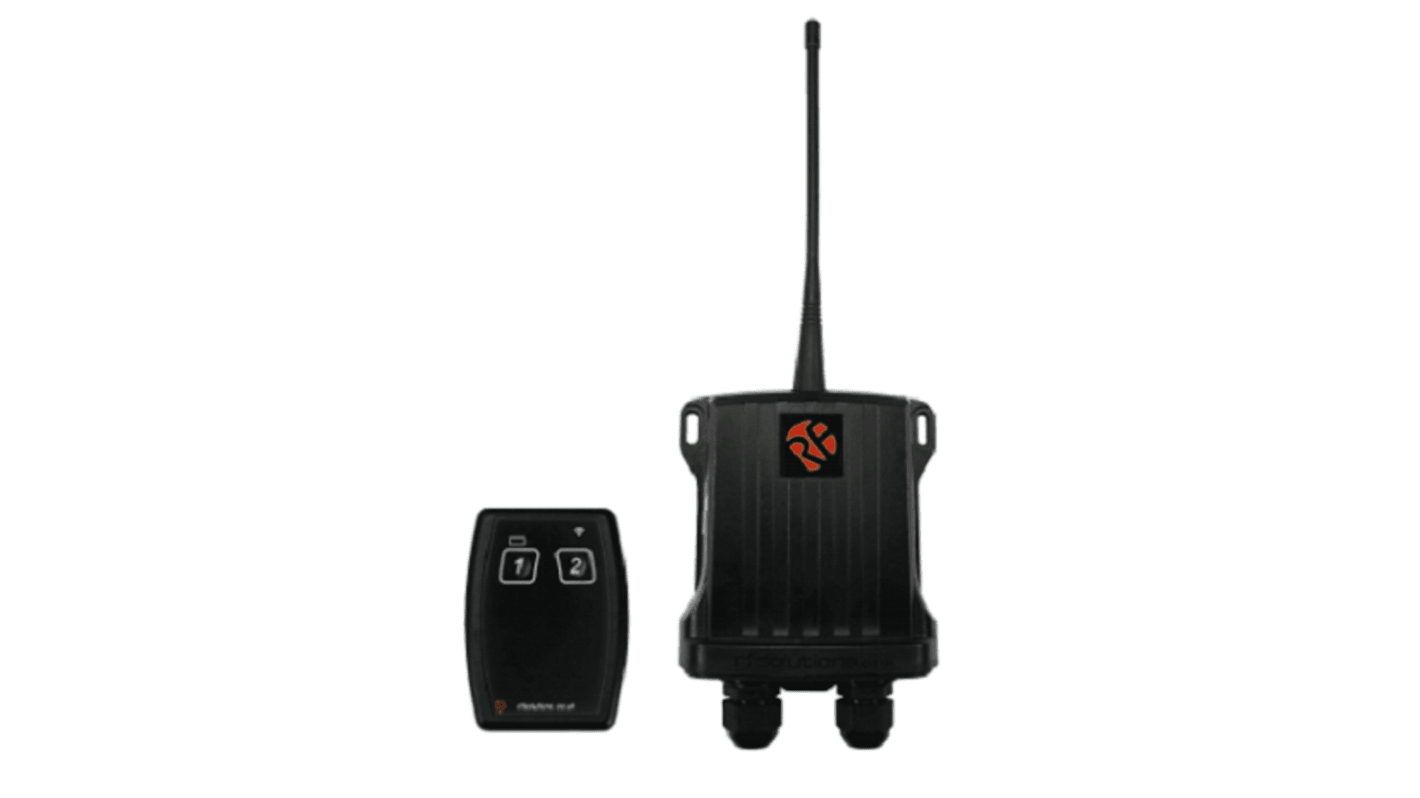

The RF Solutions QUANTA is a versatile general purpose remote control system consisting of the transmitter and receiver. The output relays are activated by the button press on the transmitter. Each relay output can be controlled from any switch on any QUANTA transmitter. Additional transmitters may be added to the system using the same easy-learn process without opening the receiver enclosure. This remote control is used in wide variety of applications such as industrial remote control, electric gates, roller shutter doors, etc.

Up to 100 m range

Splash proof transmitter with IP54 rating

Waterproof receiver with IP68 rating

High security RF protocol
