RF Solutions QUANTAFOB-4S1 Remote Control System,433 MHz 100 m
- RS 제품 번호:
- 181-3277
- 제조사 부품 번호:
- QUANTAFOB-4S1
- 제조업체:
- RF Solutions
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩162,454.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩162,454.50 |
| 5 + | ₩153,913.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-3277
- 제조사 부품 번호:
- QUANTAFOB-4S1
- 제조업체:
- RF Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RF Solutions | |
| Product Type | Remote Control System | |
| Frequency | 433MHz | |
| Modulation | FM | |
| Number of Channels | 1 | |
| Number of Key Fob Buttons | 1 | |
| Nominal Supply Voltage | 12/30 V dc | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Range | 100 m | |
| Height | 42mm | |
| Depth | 130mm | |
| Standards/Approvals | RoHS | |
| Width | 112mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RF Solutions | ||
Product Type Remote Control System | ||
Frequency 433MHz | ||
Modulation FM | ||
Number of Channels 1 | ||
Number of Key Fob Buttons 1 | ||
Nominal Supply Voltage 12/30 V dc | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Range 100 m | ||
Height 42mm | ||
Depth 130mm | ||
Standards/Approvals RoHS | ||
Width 112mm | ||
- COO (Country of Origin):
- GB

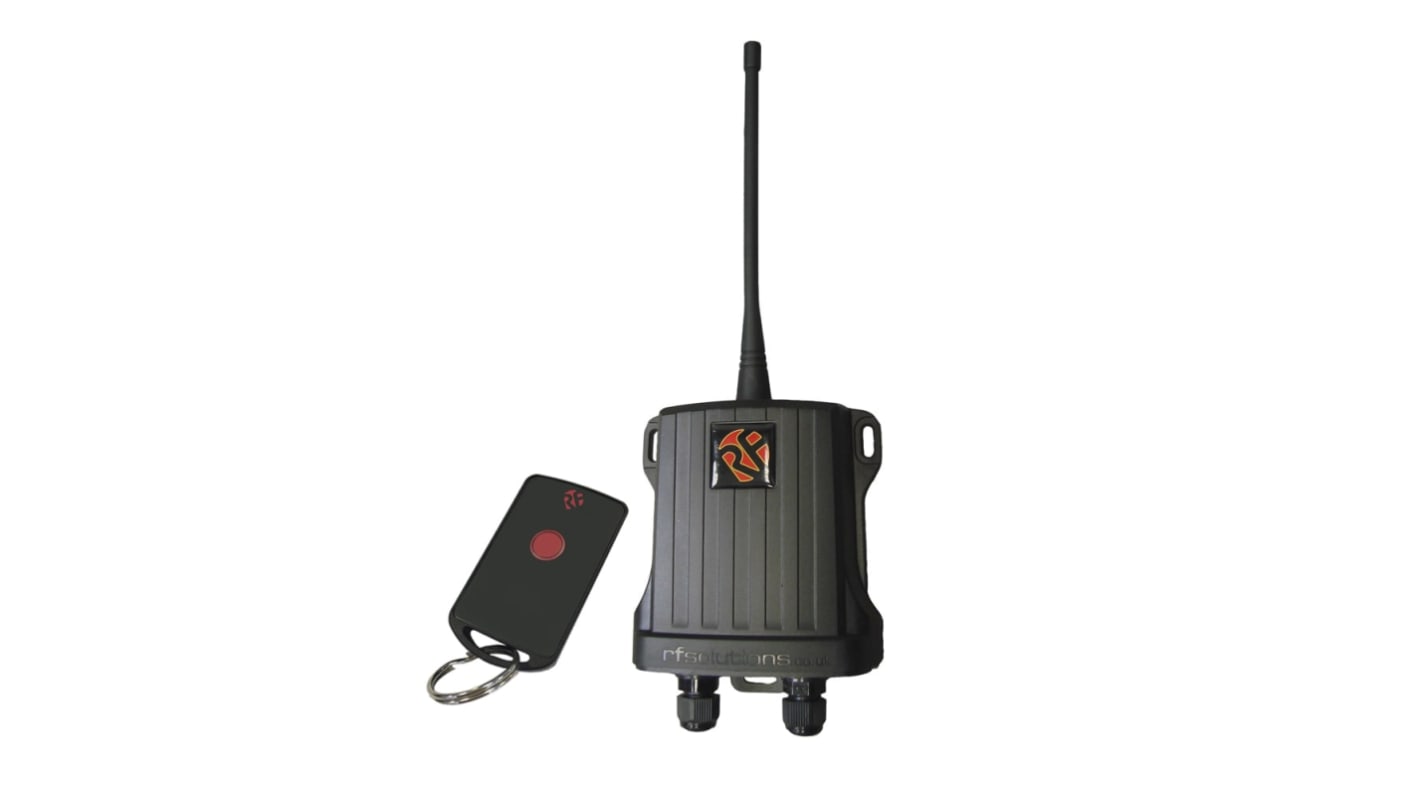

A highly versatile general purpose Remote Control System for many different applications. Housed in a rugged weatherproof enclosure, The new QUANTAFOB system is ideally suited to any remote switch requirement. Each receiver has 4 relays, using the ’easy-learn’ process each relay can be controlled from any switch on any transmitter. Additional transmitters may be added to the system using the same ’easy-learn’ process. Installation is by screw terminals to the power supply and the output relay contacts. The output relays are activated by the button press on the transmitter encoder.
Up to 150m Range
433MHz FM Technology
1 – 4 Channels each 1000W
Waterproof Receiver
New High Security RF Protocol
4 Changeover Relays 5A @ 230Vac
Outputs Momentary or Latching
Any Switch Map to Any Relay
Systems supplied ’ready to Go’
