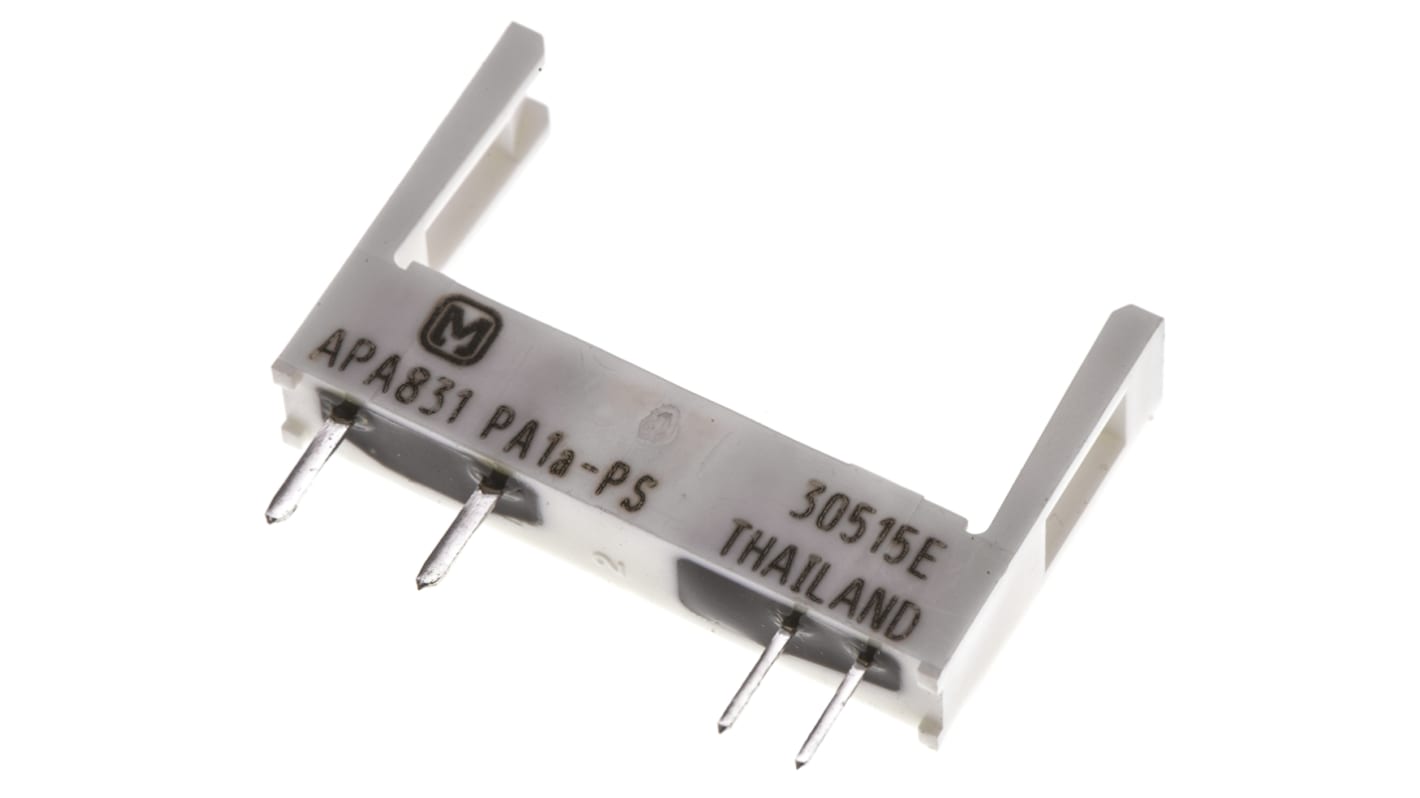

Panasonic PA 4 Pin 250V ac PCB Mount Relay Socket
- RS 제품 번호:
- 173-8183
- 제조사 부품 번호:
- PA1APS
- 제조업체:
- Panasonic
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tube of 50 units)*
₩187,718.00
일시적 품절
- 2026년 4월 20일 부터 150 개 단위 배송
- 추가로 2026년 4월 27일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tube* |
|---|---|---|
| 50 - 50 | ₩3,754.36 | ₩187,718.00 |
| 100 - 150 | ₩3,660.36 | ₩183,018.00 |
| 200 + | ₩3,587.04 | ₩179,370.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 173-8183
- 제조사 부품 번호:
- PA1APS
- 제조업체:
- Panasonic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Panasonic | |
| Voltage | 250V ac | |
| Series | PA | |
| Termination Type | PCB Pin | |
| Current Rating | 5A | |
| Mounting Type | PCB Mount | |
| Number of Contacts | 4 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Panasonic | ||
Voltage 250V ac | ||
Series PA | ||
Termination Type PCB Pin | ||
Current Rating 5A | ||
Mounting Type PCB Mount | ||
Number of Contacts 4 | ||
- COO (Country of Origin):
- JP
PA Series
These slim design of these PCB mount power relays means they are suitable for higher density mounting, gold plated contacts enable control of low level loads. These PCB mount power relays also offer high vibration and shock resistance and have a sealed construction that allows automatic washing. Typical applications for these PCB relays include industrial and office equipment, measuring devices and test equipment, programmable controllers, timers, counters, sensors and temperature controllers.
Slim size (H12.5 W5 x L20mm) permits higher density mounting
Min. switching capacity 100μA 100mV DC
Reinforced according to IEC1131-2 (TÜV)
High surge breakdown voltage (4kV) and high breakdown voltage (2kV)
High vibration and shock resistance
Sealed construction allows automatic washing
Applications include interface relay for programmable controllers, output relay for measuring equipment, timers, counters, temperature controllers etc
Min. switching capacity 100μA 100mV DC
Reinforced according to IEC1131-2 (TÜV)
High surge breakdown voltage (4kV) and high breakdown voltage (2kV)
High vibration and shock resistance
Sealed construction allows automatic washing
Applications include interface relay for programmable controllers, output relay for measuring equipment, timers, counters, temperature controllers etc
Approvals
UL, CSA, TUV
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
