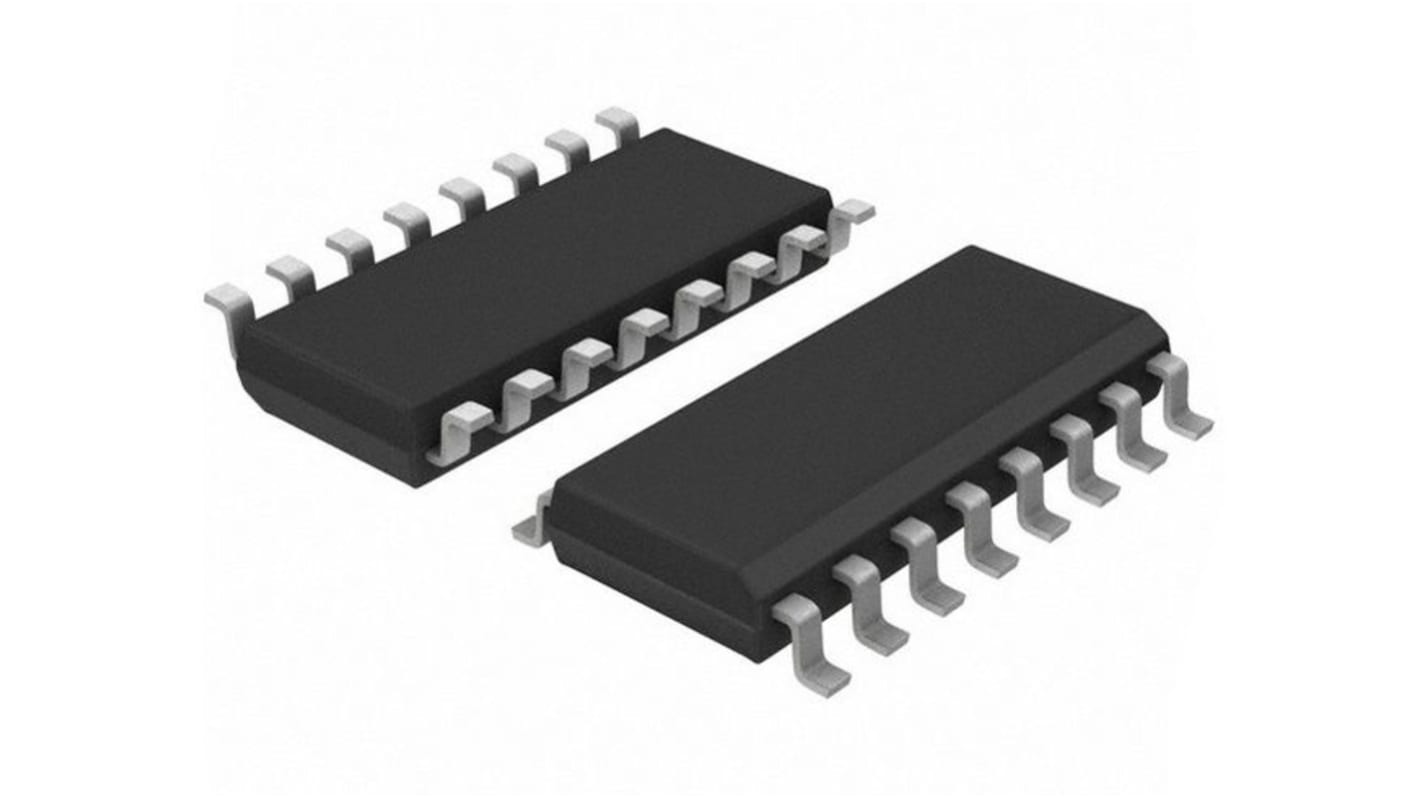

NXP, Real Time Clock 128 bit Real Time Clock D:W:M:Y, 16-Pin SO-16 Surface
- RS 제품 번호:
- 219-4634
- 제조사 부품 번호:
- PCF2129T/2,518
- 제조업체:
- NXP
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 219-4634
- 제조사 부품 번호:
- PCF2129T/2,518
- 제조업체:
- NXP
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NXP | |
| Product Type | Real Time Clock | |
| Date Format | D:W:M:Y | |
| Time Format | SS:MM:HH | |
| Sub Type | Real Time Clock | |
| Mount Type | Surface | |
| Package Type | SO-16 | |
| Pin Count | 16 | |
| RTC Memory Size | 128bit | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 2.65mm | |
| Series | PCF2129 | |
| Length | 12.8mm | |
| Maximum Supply Voltage | 4.2V | |
| Minimum Supply Voltage | 1.8V | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 NXP | ||
Product Type Real Time Clock | ||
Date Format D:W:M:Y | ||
Time Format SS:MM:HH | ||
Sub Type Real Time Clock | ||
Mount Type Surface | ||
Package Type SO-16 | ||
Pin Count 16 | ||
RTC Memory Size 128bit | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 2.65mm | ||
Series PCF2129 | ||
Length 12.8mm | ||
Maximum Supply Voltage 4.2V | ||
Minimum Supply Voltage 1.8V | ||
Automotive Standard No | ||
The NXP PCF2129 is a CMOS1 real time clock (RTC) and calendar with an integrated temperature compensated crystal (Xtal) oscillator (TCXO) and a 32.768 kHz quartz crystal optimized for very high accuracy and very low power consumption. The PCF2129 has a selectable I2C bus or SPI bus, a backup battery switch over circuit, a programmable watchdog function, a timestamp function, and many other features.
Battery backed output voltage
Battery low detection function
