NXP, Real Time Clock 128 bit Real Time Clock D:W:M:Y, 14-Pin TSSOP Surface
- RS 제품 번호:
- 219-4629
- 제조사 부품 번호:
- PCF2123TS/1,118
- 제조업체:
- NXP

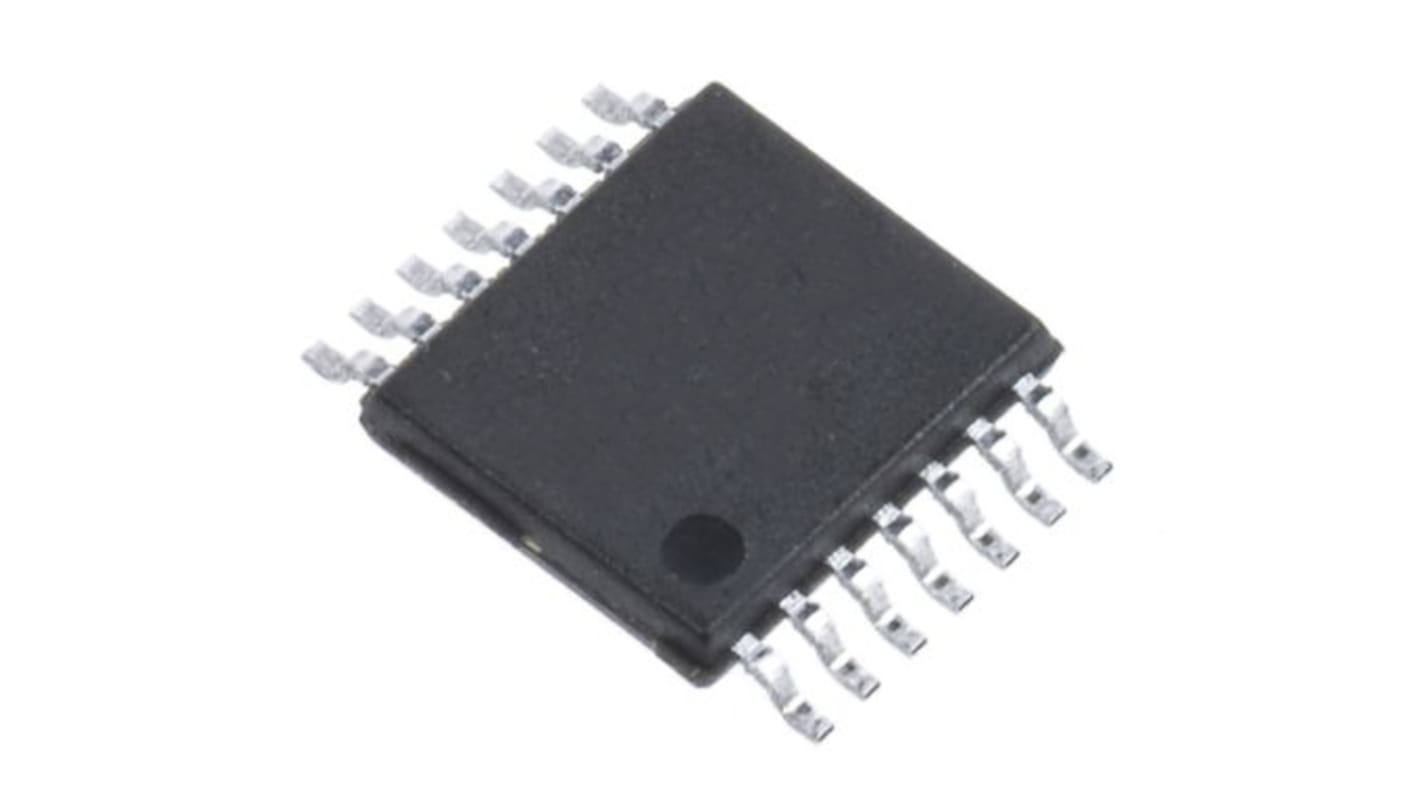

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 219-4629
- 제조사 부품 번호:
- PCF2123TS/1,118
- 제조업체:
- NXP
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NXP | |
| Product Type | Real Time Clock | |
| Date Format | D:W:M:Y | |
| Time Format | SS:MM:HH | |
| Sub Type | Real Time Clock | |
| Mount Type | Surface | |
| Interface Type | SPI | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| RTC Memory Size | 128bit | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Height | 1.1mm | |
| Series | PCF2123 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 1.8V | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 NXP | ||
Product Type Real Time Clock | ||
Date Format D:W:M:Y | ||
Time Format SS:MM:HH | ||
Sub Type Real Time Clock | ||
Mount Type Surface | ||
Interface Type SPI | ||
Package Type TSSOP | ||
Pin Count 14 | ||
RTC Memory Size 128bit | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 5mm | ||
Standards/Approvals No | ||
Height 1.1mm | ||
Series PCF2123 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 1.8V | ||
Automotive Standard No | ||
The NXP PCF2123 is a CMOS1 real time clock (RTC) and calendar optimized for low power applications. Data is transferred serially via a Serial Peripheral Interface (SPI bus) with a maximum data rate of 6.25 Mbit or s. An alarm and timer function is also available providing the possibility to generate a wake up signal on an interrupt pin. An offset register allows fine tuning of the clock.
Internal power-on reset (POR)
Open-drain interrupt and clock output pins
Programmable offset register for frequency adjustment
