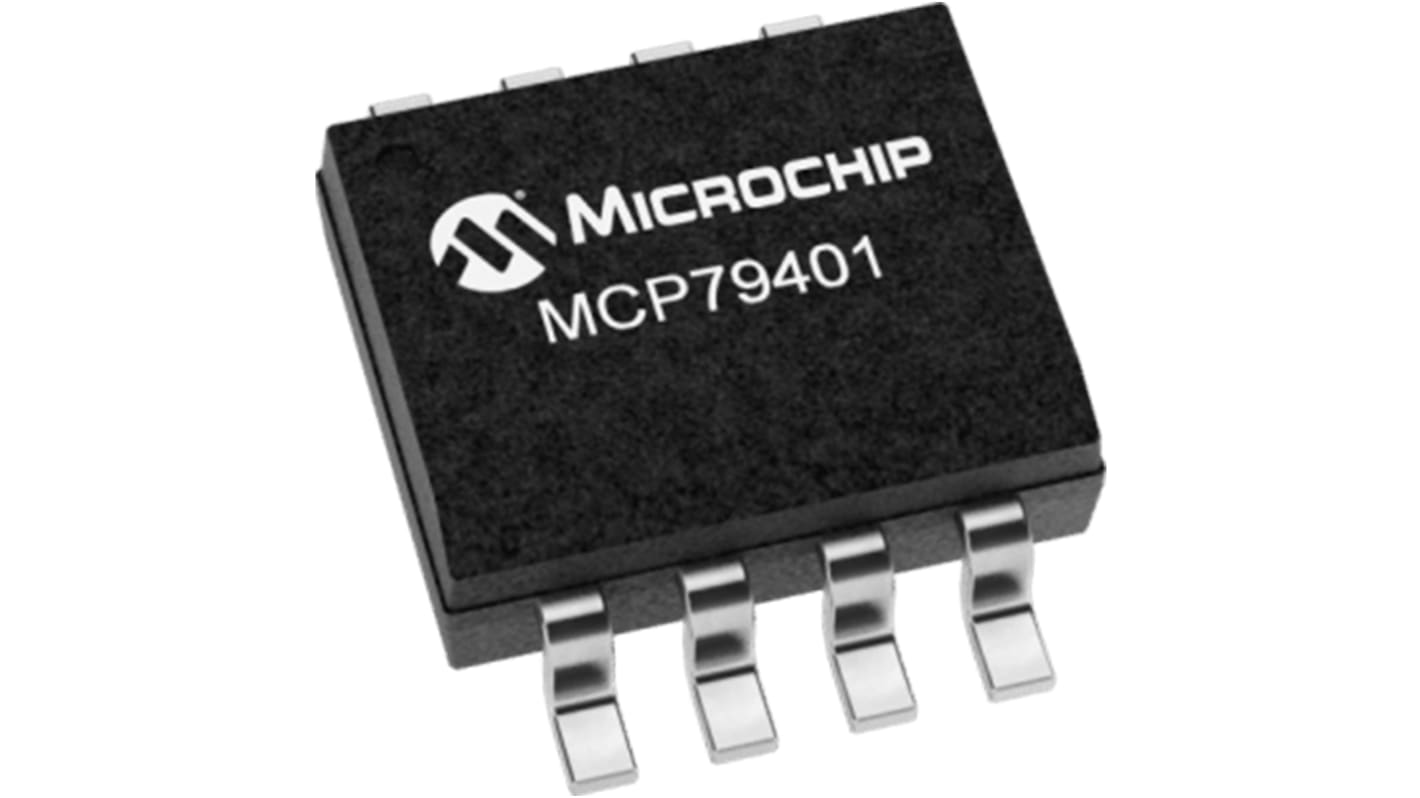

Microchip MCP79401-I/SN, Real Time Clock (RTC) Serial-I2C, 8-Pin SOIC
- RS 제품 번호:
- 177-0776P
- 제조사 부품 번호:
- MCP79401-I/SN
- 제조업체:
- Microchip
대량 구매 할인 기용 가능
Subtotal 30 units (supplied in a tube)*
₩47,883.60
재고있음
- 390 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 30 - 40 | ₩1,596.12 |
| 50 + | ₩1,564.16 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 177-0776P
- 제조사 부품 번호:
- MCP79401-I/SN
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Date Format | D:M:Y, DW | |
| Time Format | HH:MM:SS | |
| Bus Type | Serial-I2C | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Dimensions | 4.9 x 3.9 x 1.5mm | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| Height | 1.5mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 1.8 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Date Format D:M:Y, DW | ||
Time Format HH:MM:SS | ||
Bus Type Serial-I2C | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 8 | ||
Dimensions 4.9 x 3.9 x 1.5mm | ||
Length 4.9mm | ||
Width 3.9mm | ||
Height 1.5mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 1.8 V | ||
Microchip Technology Real Time Clock
The Microchip Technology MCP79401 8-pin, SOIC package, surface mount device has a voltage rating between 1.8V and 5.5V. It is a general-purpose I2CTM compatible real-time clock/calendar (RTCC) which is integrated with memory and advanced features normally found in higher priced devices. These features include a timestamp to log power failures and digital trimming for accuracy. It supports I2C communications up to 400kHz. This device is used in industries.
Features and Benefits
• Automatic battery switchover with timestamp
• Dual programmable alarms
• On-chip digital trimming/calibration
• Operating temperature ranges between -40°C and 85°C
• Oscillator for 32.768kHz crystals
• Power-fail timestamp
• Versatile output pin
• Dual programmable alarms
• On-chip digital trimming/calibration
• Operating temperature ranges between -40°C and 85°C
• Oscillator for 32.768kHz crystals
• Power-fail timestamp
• Versatile output pin
