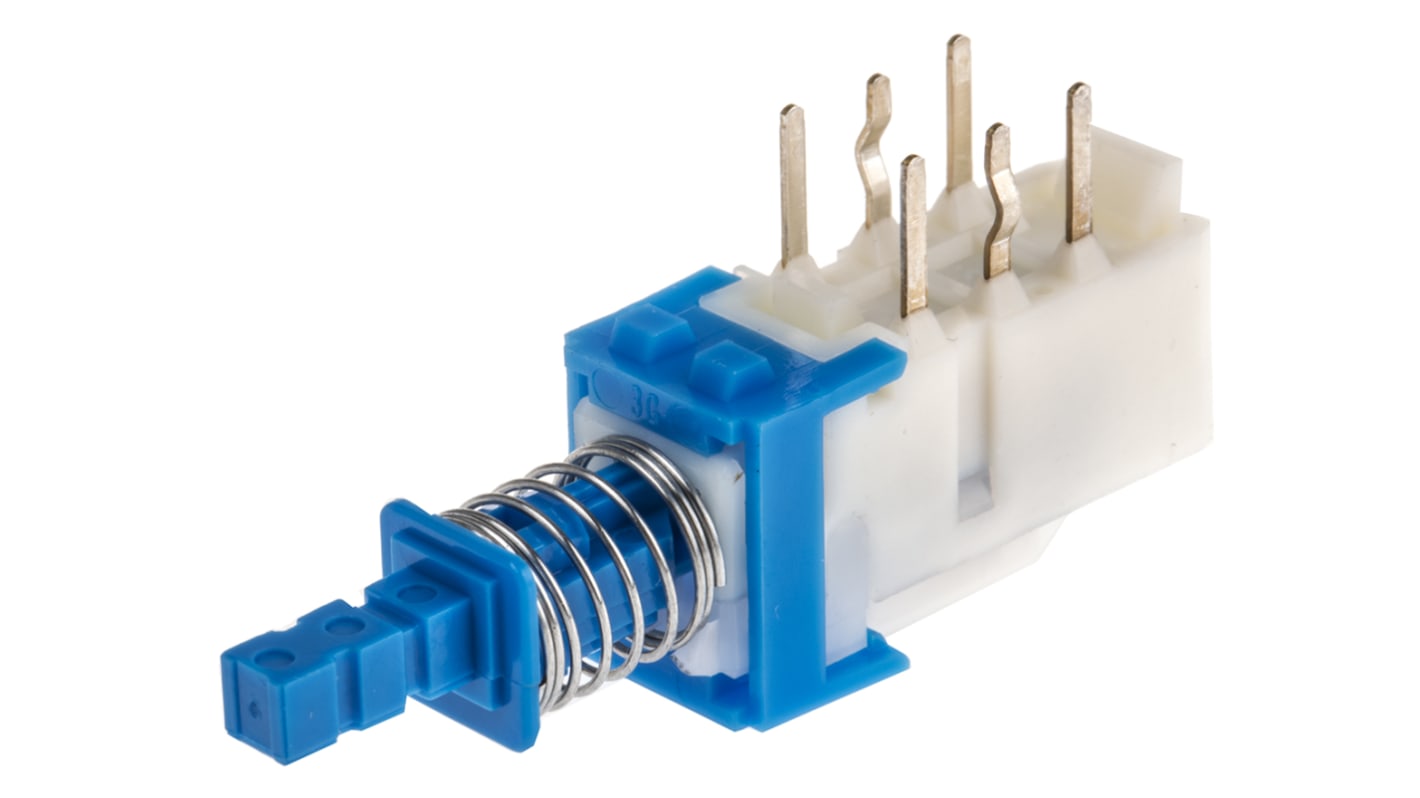

Alps Alpine Push Button Switch, Latching, PCB, DPDT
- RS 제품 번호:
- 758-2091
- 제조사 부품 번호:
- SPUN191600
- 제조업체:
- Alps Alpine
대량 구매 할인 기용 가능
Subtotal (1 Box of 4 units)*
₩15,055.04
재고있음
- 추가로 2026년 1월 12일 부터 112 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 4 - 196 | ₩3,763.76 | ₩15,058.80 |
| 200 - 396 | ₩3,609.60 | ₩14,438.40 |
| 400 - 996 | ₩3,462.96 | ₩13,855.60 |
| 1000 + | ₩3,399.04 | ₩13,592.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 758-2091
- 제조사 부품 번호:
- SPUN191600
- 제조업체:
- Alps Alpine
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alps Alpine | |
| Product Type | Push Button Switch | |
| Switch Operation | Latching | |
| Illuminated | No | |
| Mount Type | PCB | |
| Contact Configuration | DPDT | |
| Terminal Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 500V | |
| Switch Configuration | Latching, Momentary, Non-shorting | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 100 mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alps Alpine | ||
Product Type Push Button Switch | ||
Switch Operation Latching | ||
Illuminated No | ||
Mount Type PCB | ||
Contact Configuration DPDT | ||
Terminal Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 500V | ||
Switch Configuration Latching, Momentary, Non-shorting | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Switch Contact Current 100 mA | ||
- COO (Country of Origin):
- JP
Alps Push Switches - SPUJ & SPUN Series
From Alps, this SPUJ and SPUN series of Push Switches are non-shorting, horizontal mounted, signal switches suitable for through hole PCB mounting. With a choice of straight or formed snap-in pins,
these Push Switches are also available in momentary (non-lock) or latching (self-lock) action, with two and four pole contact configurations, various switching travel and operating forces.
The SPUJ series have a 2mm travel while the SPUN Push Switches have 2.5mm switch travel. They are rated to 0.1A at 30V dc and 50μA at 3V dc with a 20mΩ contact resistance, 100MΩ minimum insulation resistance and 500V ac withstand voltage for one minute.
Available in this Series:
• Stock number 758-2114 is a 2 pole Momentary Straight switch
• Stock number 758-2111 is a 2 pole Latching Straight switch
• Stock number 758-2118 is a 4 pole Latching Straight switch
• Stock number 758-2127 is a 4 pole Latching Snap-in switch
• Stock number 758-2095 is a 2 pole Momentary Straight switch
• Stock number 758-2105 is a 2 pole Momentary Snap-in switch
• Stock number 758-2098 is a 2 pole Latching Straight switch
• Stock number 758-2091 is 2 pole Latching Snap-in switch
• Stock number 758-2108 is a 4 pole Latching Straight switch
• Stock number 758-2102 is a 4 pole Latching Snap-in switch
Dimensions:
• SPUJ 2 pole = 25mm overall depth, 8.8mm height, 7.5mm width
• SPUJ 4 pole = 32.5mm overall depth, 8.8mm height, 7.5mm width
• SPUN 2 pole = 42mm overall depth, 13mm height, 10mm width
• SPUN 4 pole = 54mm overall depth, 13mm height, 10mm width
Alps Push Switches
