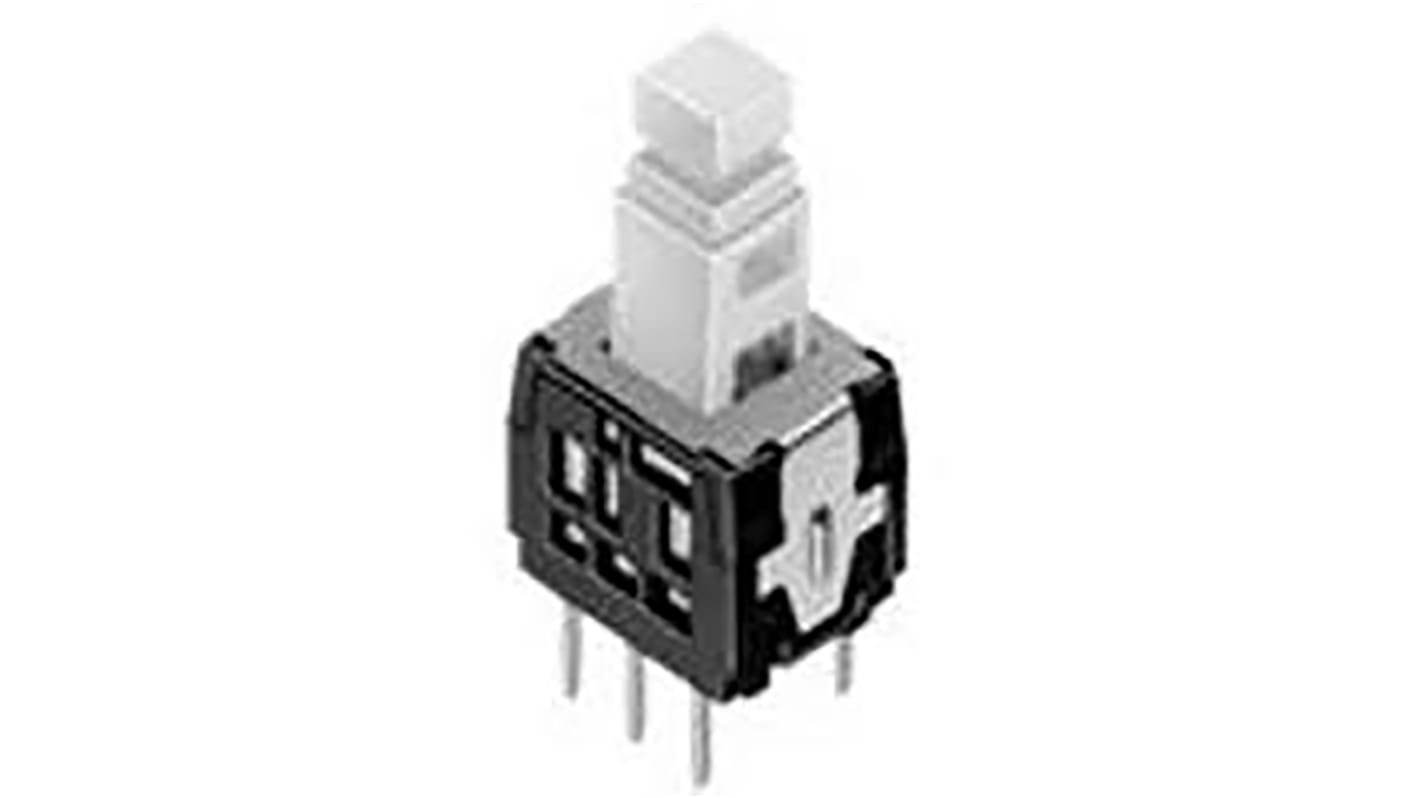

Alps Alpine Push Button Switch, Latching, PCB, DPDT, 30 V dc
- RS 제품 번호:
- 123-9052
- 제조사 부품 번호:
- SPPH420100
- 제조업체:
- Alps Alpine
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩9,907.60
재고있음
- 추가로 2026년 2월 23일 부터 235 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 20 | ₩1,981.52 | ₩9,907.60 |
| 25 - 45 | ₩1,943.92 | ₩9,719.60 |
| 50 - 95 | ₩1,876.24 | ₩9,381.20 |
| 100 - 245 | ₩1,823.60 | ₩9,118.00 |
| 250 + | ₩1,786.00 | ₩8,930.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 123-9052
- 제조사 부품 번호:
- SPPH420100
- 제조업체:
- Alps Alpine
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alps Alpine | |
| Switch Operation | Latching | |
| Product Type | Push Button Switch | |
| Actuator Colour | White | |
| Illuminated | No | |
| Mount Type | PCB | |
| Contact Configuration | DPDT | |
| Terminal Type | Solder Pin | |
| Actuator Style | Square | |
| Minimum Operating Temperature | -10°C | |
| Contact DC Voltage | 30V dc | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 100 mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alps Alpine | ||
Switch Operation Latching | ||
Product Type Push Button Switch | ||
Actuator Colour White | ||
Illuminated No | ||
Mount Type PCB | ||
Contact Configuration DPDT | ||
Terminal Type Solder Pin | ||
Actuator Style Square | ||
Minimum Operating Temperature -10°C | ||
Contact DC Voltage 30V dc | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Switch Contact Current 100 mA | ||
Alps SPPH Series Push Button Switches
Alps SPPH series of vertical push button switches and have been designed for ease of use in mind. The SPPH series has been designed for PCB mounting, with various terminal types such as straight fit or snap-in. The SPPH series also comes supplied with standard or short knob styles so your application is covered.
Features and Benefits
Various knob styles available.
Easy to use PCB mounting style.
10,000 cycle mean time before failure (MTBF).
Alps Push Switches
