EOZ R Series Push Button Switch, Momentary, Panel, 19.2 mm Cutout, SPST, IP65, 48 V 250 V
- RS 제품 번호:
- 690-3283
- 제조사 부품 번호:
- R19FFNSTAG
- 제조업체:
- EOZ
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩14,175.20
제한된 재고
- 추가로 2026년 1월 19일 부터 343 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩14,175.20 |
| 10 - 49 | ₩13,742.80 |
| 50 - 99 | ₩13,329.20 |
| 100 - 249 | ₩13,047.20 |
| 250 + | ₩12,765.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 690-3283
- 제조사 부품 번호:
- R19FFNSTAG
- 제조업체:
- EOZ
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EOZ | |
| Product Type | Push Button Switch | |
| Actuator Colour | Silver | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | R | |
| Panel Cutout Size | 19.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Screw | |
| IP Rating | IP65 | |
| Contact DC Voltage | 48V | |
| Contact AC Voltage | 250V | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Button | |
| Switch Configuration | 1 NO | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 2 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 EOZ | ||
Product Type Push Button Switch | ||
Actuator Colour Silver | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series R | ||
Panel Cutout Size 19.2 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Screw | ||
IP Rating IP65 | ||
Contact DC Voltage 48V | ||
Contact AC Voltage 250V | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Button | ||
Switch Configuration 1 NO | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
Switch Contact Current 2 A | ||
- COO (Country of Origin):
- FR

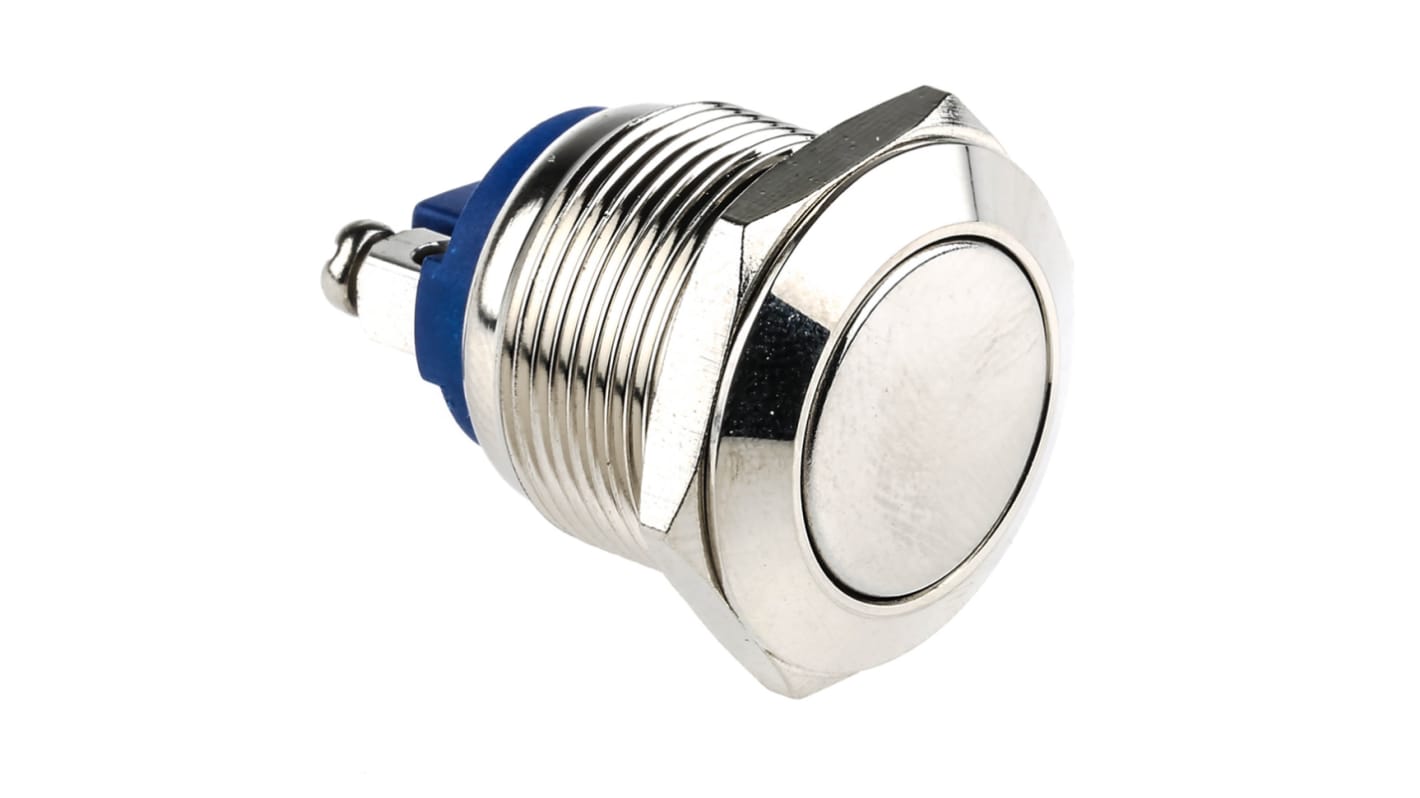

The R19FFNSTAG push button switch is a 19 mm, anti-vandal, momentary switch.
Features and Benefits
• Flush shaped push button – extremely robust and reliable.
• Nickel plated brass – creates a protective barrier preventing the brass from corroding.
• Non-illuminated.
• Screw terminal.
• Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
R Series Anti-vandal pushbutton (19 mm)
These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-
• Access Control systems.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
Features and Benefits
• Vandal Resistant push buttons.
• Shock resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Non-illuminated.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
