제조사부품번호

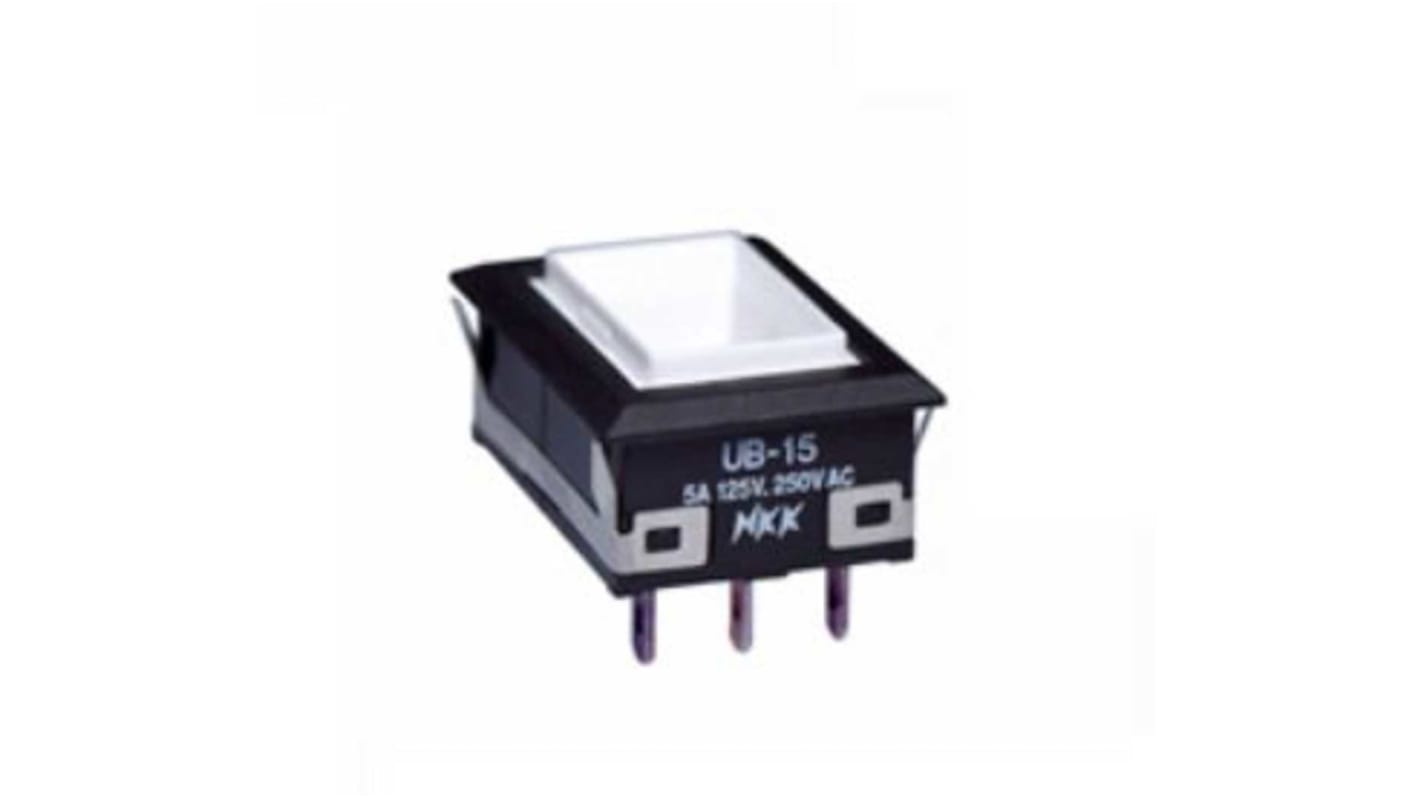

NKK Switches UB Series Push Button Switch, On-On, Through Hole, SPDT, 30 V dc 250 V ac

RS 제품 번호:: 195-9417
제조사 부품 번호:: UB15NKW01N
제조업체:: NKK Switches

NKK Switches UB Series Push Button Switch, On-On, Through Hole, SPDT, 30 V dc 250 V ac

Subtotal (1 unit)*

₩12,934.40

제조사가 재고 비축중

2026년 5월 25일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩12,934.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 195-9417
제조사 부품 번호:: UB15NKW01N
제조업체:: NKK Switches

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	NKK Switches
	Product Type	Push Button Switch
	Switch Operation	On-On
	Series	UB
	Mount Type	Through Hole
	Contact Configuration	SPDT
	Minimum Operating Temperature	-25°C
	Contact DC Voltage	30V dc
	Contact AC Voltage	250V ac
	Maximum Operating Temperature	50°C
	Switch Configuration	On-On
	Standards/Approvals	RoHS, CSA, UL

	모두 선택
	브랜드 NKK Switches
	Product Type Push Button Switch
	Switch Operation On-On
	Series UB
	Mount Type Through Hole
	Contact Configuration SPDT
	Minimum Operating Temperature -25°C
	Contact DC Voltage 30V dc
	Contact AC Voltage 250V ac
	Maximum Operating Temperature 50°C
	Switch Configuration On-On
	Standards/Approvals RoHS, CSA, UL

Datasheet - UB15NKW

COO (Country of Origin):: PH

The NKK Switches push button SPDT switch has On-(On) circuit configuration belongs to UB series. Phosphor bronze with silver and gold plating terminals are used for switch terminals and brass with silver plating for lamp terminals.

Combination of PCB mountability and short body allows use in compact application

Small behind panel dimensions for snap in mounting in a tight spaces

latch down mechanism, independent of switching mechanism, gives visible and tactile indication of circuit status

Terminals are epoxy sealed to lock out flux, solvents, and after contaminants.

NKK Switches UB Series Push Button Switch, On-On, Through Hole, SPDT, 30 V dc 250 V ac
