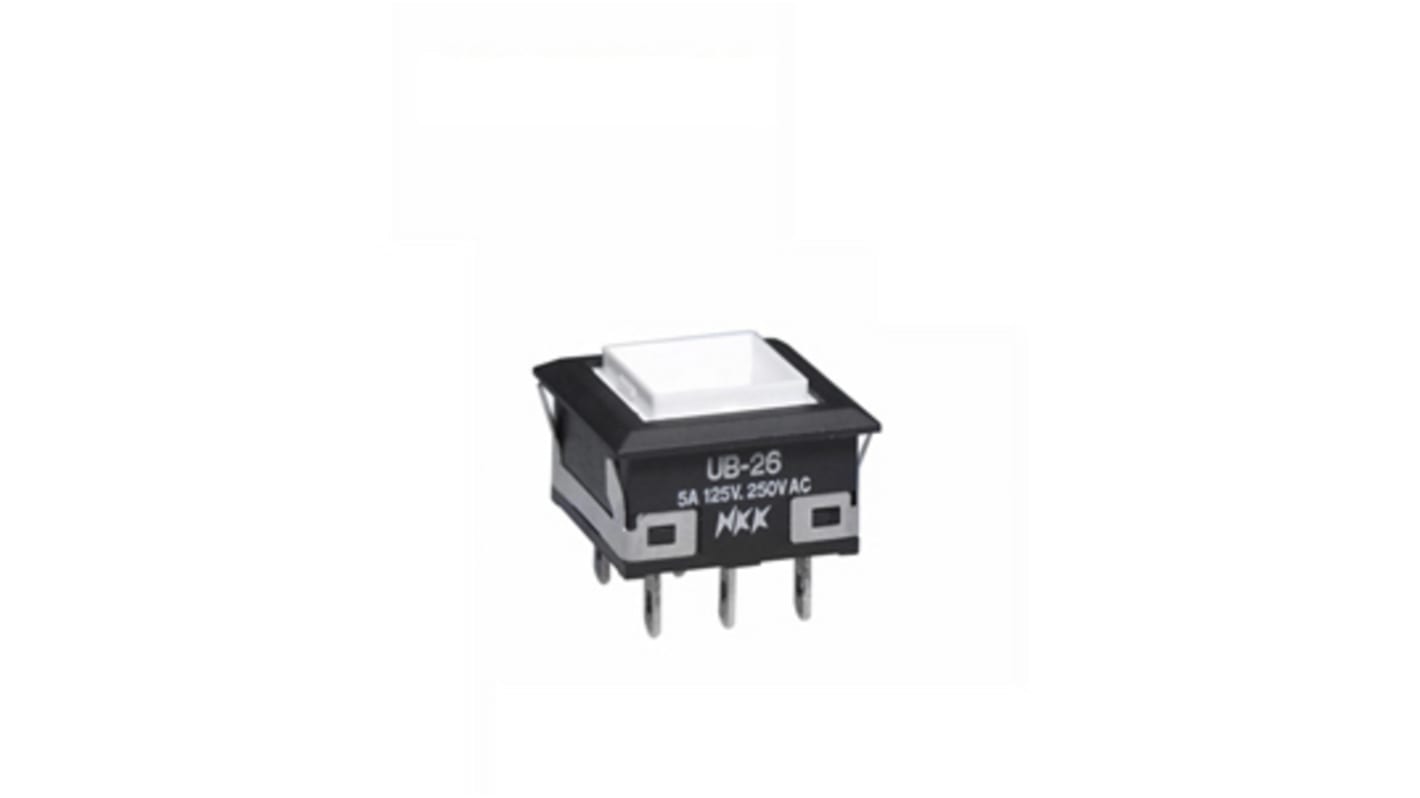

NKK Switches Push Button Switch, On-On, Panel Mount, DPDT
- RS 제품 번호:
- 181-7187
- 제조사 부품 번호:
- UB26NKW01N
- 제조업체:
- NKK Switches
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩18,480.40
일시적 품절
- 2026년 3월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩18,480.40 |
| 5 - 49 | ₩17,728.40 |
| 50 + | ₩16,995.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-7187
- 제조사 부품 번호:
- UB26NKW01N
- 제조업체:
- NKK Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NKK Switches | |
| Switch Operation | On-On | |
| Mounting Type | Panel Mount | |
| Contact Configuration | DPDT | |
| Push Button Style | Rectangular | |
| Contact Current Rating | 5 A | |
| Contact Material | Silver | |
| Contact AC Voltage Rating | 125 V, 250V | |
| Contact DC Voltage Rating | 30V | |
| Manufacturer Part No. | UB26NKW01N | |
| Terminal Type | Solder Lug | |
| Panel Cut Out Width | 22.4mm | |
| Panel Cut Out Height | 16.2mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 NKK Switches | ||
Switch Operation On-On | ||
Mounting Type Panel Mount | ||
Contact Configuration DPDT | ||
Push Button Style Rectangular | ||
Contact Current Rating 5 A | ||
Contact Material Silver | ||
Contact AC Voltage Rating 125 V, 250V | ||
Contact DC Voltage Rating 30V | ||
Manufacturer Part No. UB26NKW01N | ||
Terminal Type Solder Lug | ||
Panel Cut Out Width 22.4mm | ||
Panel Cut Out Height 16.2mm | ||
- COO (Country of Origin):
- PH
5A Power Level & 0.4VA Logic Level, Snap-in and PCB Mount, Single and Bicolour LED Illumination, Sculptured, Beveled and Flat Cap Options, Alternating Legend Options, UL, cULus
Wide selection of illumination effects is achieved with single and bicolour LEDs, in flat, beveled, or sculptured caps. LED colours include red, amber, green, white, blue, and orange.
Non-illuminated models available.
Combination of PCB mount ability and short body allows for use in compact applications.
Wide selection of illumination effects is achieved with single and bicolour LEDs, in flat, beveled, or sculptured caps. LED colours include red, amber, green, white, blue, and orange.
Non-illuminated models available.
Combination of PCB mount ability and short body allows for use in compact applications.
