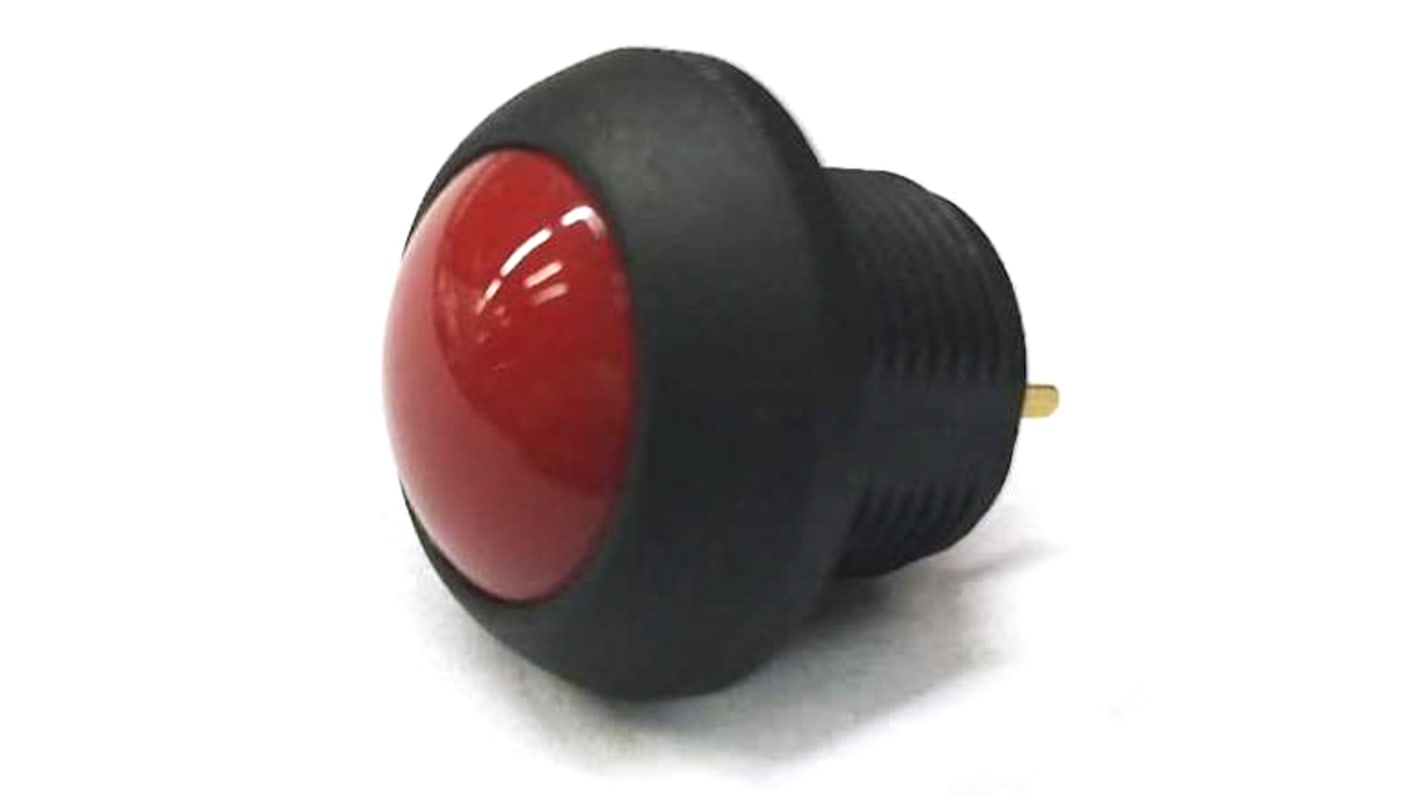

RS PRO Miniature Push Button Switch, Momentary, Panel, 13.6 mm Cutout, SPST, IP68, 36 V dc
- RS 제품 번호:
- 175-9508
- 제조업체:
- RS PRO
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 pack of 1 unit)*
₩7,180.00
재고있음
- 11 개 단위 배송 준비 완료
- 추가로 2027년 3월 23일 부터 140 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
팩 | 한팩당 |
|---|---|
| 1 + | ₩7,180.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 175-9508
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Miniature Push Button Switch | |
| Switch Operation | Momentary | |
| Series | RS PRO | |
| Panel Cutout Size | 13.6 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | PCB Pin | |
| IP Rating | IP68 | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 36V dc | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 125mA, 200mA, 400mA | |
| Standards/Approvals | RS | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Miniature Push Button Switch | ||
Switch Operation Momentary | ||
Series RS PRO | ||
Panel Cutout Size 13.6 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type PCB Pin | ||
IP Rating IP68 | ||
Actuator Style Round | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 36V dc | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 125mA, 200mA, 400mA | ||
Standards/Approvals RS | ||
- COO (Country of Origin):
- TW
Sub-Miniature Pushbutton Switches (PF Series)
IP67 rated. Available in function SPST, multiple options of cap and carved pattern customized in the near future. Shock resistant and withstand harsh environments, available in plastic housings.
The PF series sub-miniature pushbutton switches are also available in cable assemble, which brings it closer to the needs of the user.
Applications
Telecommunications, Networking equipment, Computers/serves, Performance audio and Instrumentation.
