Bulgin MMP0120 Series Push Button Switch, Momentary, Panel, 12 mm Cutout, SPST, Amber, Blue, Green, Orange, Red, Yellow

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩24,534.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 4월 13일 부터 30 개 단위 배송
  • 추가로 2026년 4월 15일 부터 8 개 단위 배송
  • 추가로 2026년 4월 20일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩24,534.00
10 - 24₩23,800.80
25 - 49₩23,067.60
50 - 99₩22,484.80
100 +₩22,090.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
127-8501
Distrelec 제품 번호:
303-88-951
제조사 부품 번호:
MMP0120/SSS67/S
제조업체:
Bulgin
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Bulgin

Product Type

Push Button Switch

Actuator Colour

Silver

Switch Operation

Momentary

Illuminated

No

Panel Cutout Size

12 mm

Series

MMP0120

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Screw

LED Colour

Amber, Blue, Green, Orange, Red, Yellow

IP Rating

IP67

Minimum Operating Temperature

-25°C

Contact AC Voltage

36V ac

Contact DC Voltage

36V dc

Actuator Style

Round

Switch Configuration

Push to Make

Maximum Operating Temperature

55°C

Switch Contact Current

2A

Standards/Approvals

RoHS

Legend

Blank

COO (Country of Origin):
CN

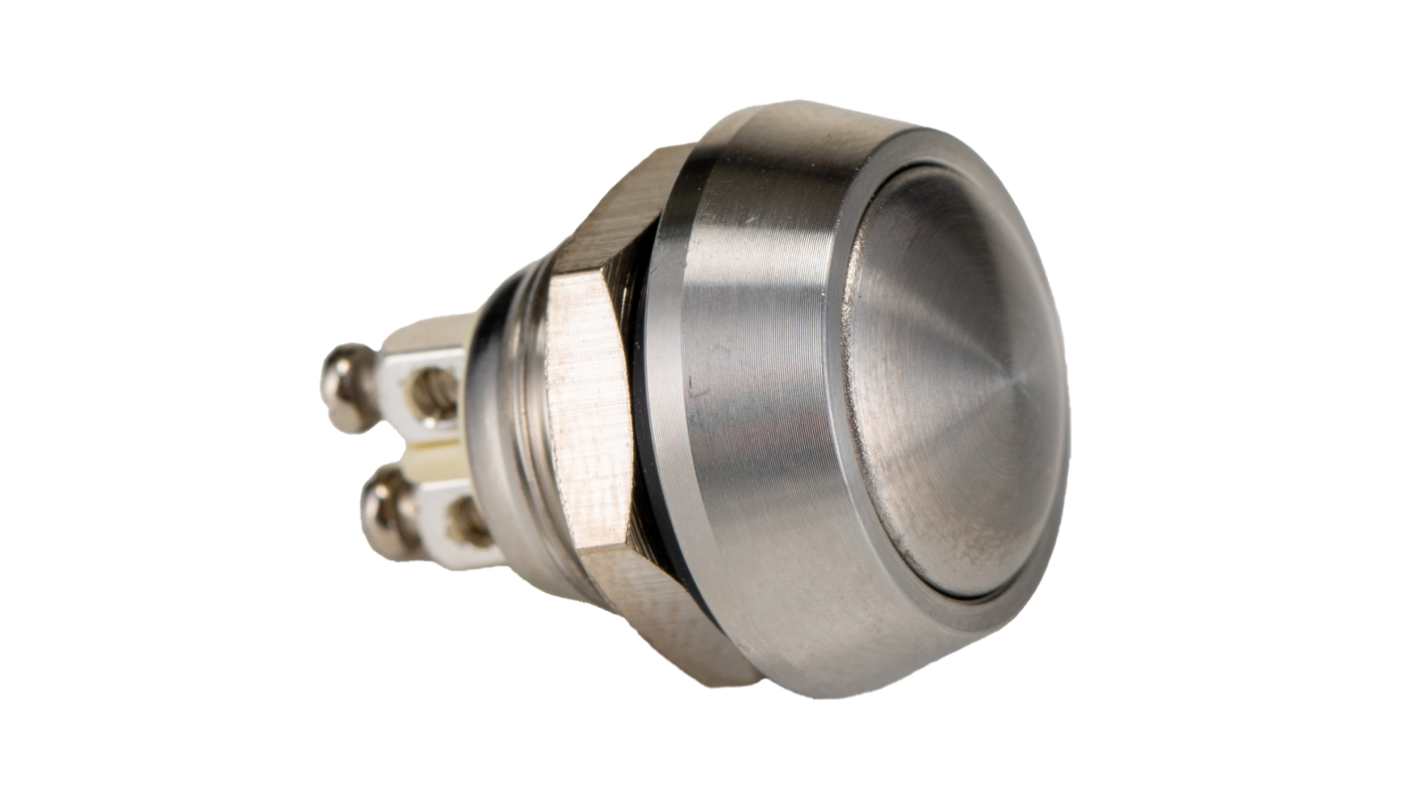

Bulgin MMP0120 Series Push Button Switch, 12mm Panel Cut Out Diameter, 2A Contact Current Rating - MMP0120/SSS67/S


This push button switch is a momentary panel mount switch designed for reliability in demanding environments. Featuring a 12mm diameter, it has a silver push button that enhances both aesthetics and functionality. The switch is constructed from stainless steel, ensuring durability and resistance against vandalism.

Features & Benefits


• Supports a voltage rating of 36V DC for versatile usage

• Compact design with a panel cut-out diameter of 12mm

• Silver alloy contacts provide reliable performance

• Operates effectively across a wide temperature range of -25°C to +55°C

• Equipped with screw terminals for easy installation

Applications


• Used in control panels for automation and machinery

• Ideal for outdoor equipment requiring waterproof switches

• Suitable for electronic devices in harsh environments

• Utilised in security systems for added durability

What is the operational lifecycle of the switch?


The switch is rated for a minimum of 500,000 mechanical operations and 200,000 electrical operations, providing longevity in use.

How does the IP67 rating benefit this device?


The IP67 rating ensures complete dust ingress protection and allows for immersion in water up to 1 metre deep, making it suitable for challenging environments.

What terminal types does this switch have?


The switch features screw terminals, which simplify the wiring process and support secure connections during installation.

Vandal Resistant Pushbutton Switches - MMP0120 Series


Features and Benefits

• 12mm diameter, raised domed profile

• Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)

• Illuminated versions

• Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals

• Choice of body material and button material, depending on part code:

- Stainless Steel body and button: /SSS

- Nickel Plated Brass body and button: /NNB

- Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black
