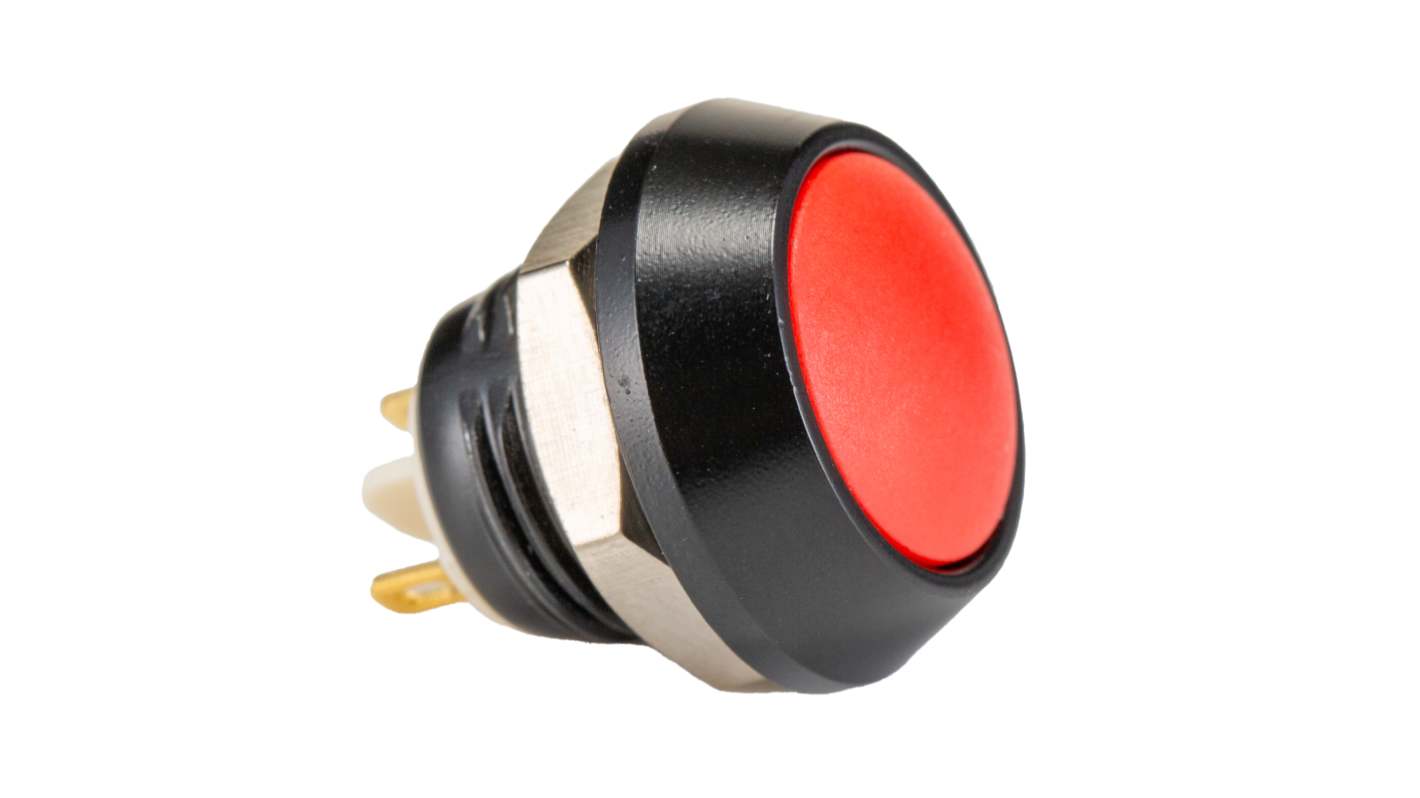

Bulgin MMP0120 Series Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 36V dc, IP67

모든 Push Button Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩18,311.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 7 개 단위 배송 준비 완료
  • 추가로 2026년 2월 23일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 9₩18,311.20
10 - 24₩17,766.00
25 - 49₩17,220.80
50 - 99₩16,807.20
100 +₩16,487.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
127-8494
Distrelec 제품 번호:
303-88-946
제조사 부품 번호:
MMP0120/ARDP
제조업체:
Bulgin
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Bulgin

Switch Operation

Momentary

Illuminated

No

Panel Cut Out Diameter

12mm

Series

MMP0120

Mounting Type

Panel Mount

Push Button Colour

Red

Contact Configuration

SPST

Voltage Rating

36V dc

Push Button Style

Round

IP Rating

IP67

Push Button Diameter

12.1mm

Contact Current Rating

2 A

Contact Material

Silver Alloy

Contact DC Voltage Rating

36V

Legend

(Blank)

Contact AC Voltage Rating

36V

Manufacturer Part No.

MMP0120/ARDP

Case Colour

Black

Minimum Operating Temperature

-25°C

Maximum DC Voltage

36V

Operating Temperature Range

-25 → +55°C

Maximum Operating Temperature

+55°C

Maximum AC Voltage

36V

Terminal Type

Solder Lug

COO (Country of Origin):
CN

Vandal Resistant Pushbutton Switches - MMP0120 Series


Features and Benefits

• 12mm diameter, raised domed profile
• Front Panel Sealed to IP65, some variants also available to IP67 (part codes containing 67)
• Illuminated versions
• Choice of Termination, depending on part code suffix: S - Screw Terminals, P - 2mm x 0.5mm Pin Terminals
• Choice of body material and button material, depending on part code:
- Stainless Steel body and button: /SSS
- Nickel Plated Brass body and button: /NNB
- Black Anodized Aluminium body: /A with PBT button in a choice of colour: RD - Red, GN - Green, BL - Blue, BK - Black

Bulgin MMP0120 Series Push Button Switch, 12 mm Panel Cut Out Diameter, 2A Contact Current Rating - MMP0120/ARDP


This push button switch is an essential component for various electrical applications, specifically designed for panel mount use. Featuring a 12mm diameter and a momentary action, it enables reliable performance in demanding environments. The switch is constructed from durable materials, ensuring longevity and resilience.

Features & Benefits


• Momentary action improves control in automation tasks
• SPST configuration enhances versatility in circuit design
• Red push button improves visibility in low-light conditions
• Silver alloy contacts ensure efficient electrical connectivity
• Operating temperature range of -25°C to +55°C enables use in extreme environments

Applications


• Used in industrial control panels for machinery
• Suitable for automation systems requiring immediate feedback
• Ideal for consumer electronics needing a compact switch
• Effective in marine for reliability against moisture
• Utilised in automotive control systems for enhanced user interaction

What is the maximum voltage rating this switch can handle?


The switch supports a maximum voltage rating of 36V for both AC and DC applications, making it suitable for various electronic configurations.

How does the IP67 rating benefit installation in challenging environments?


The IP67 rating ensures that the switch remains protected against dust ingress and can withstand immersion in water, ensuring reliable operation even in harsh conditions.

What type of termination does this switch offer for wiring connections?


It features solder lug terminals, facilitating secure and stable electrical connections during installation, which is critical for maintaining circuit integrity.
