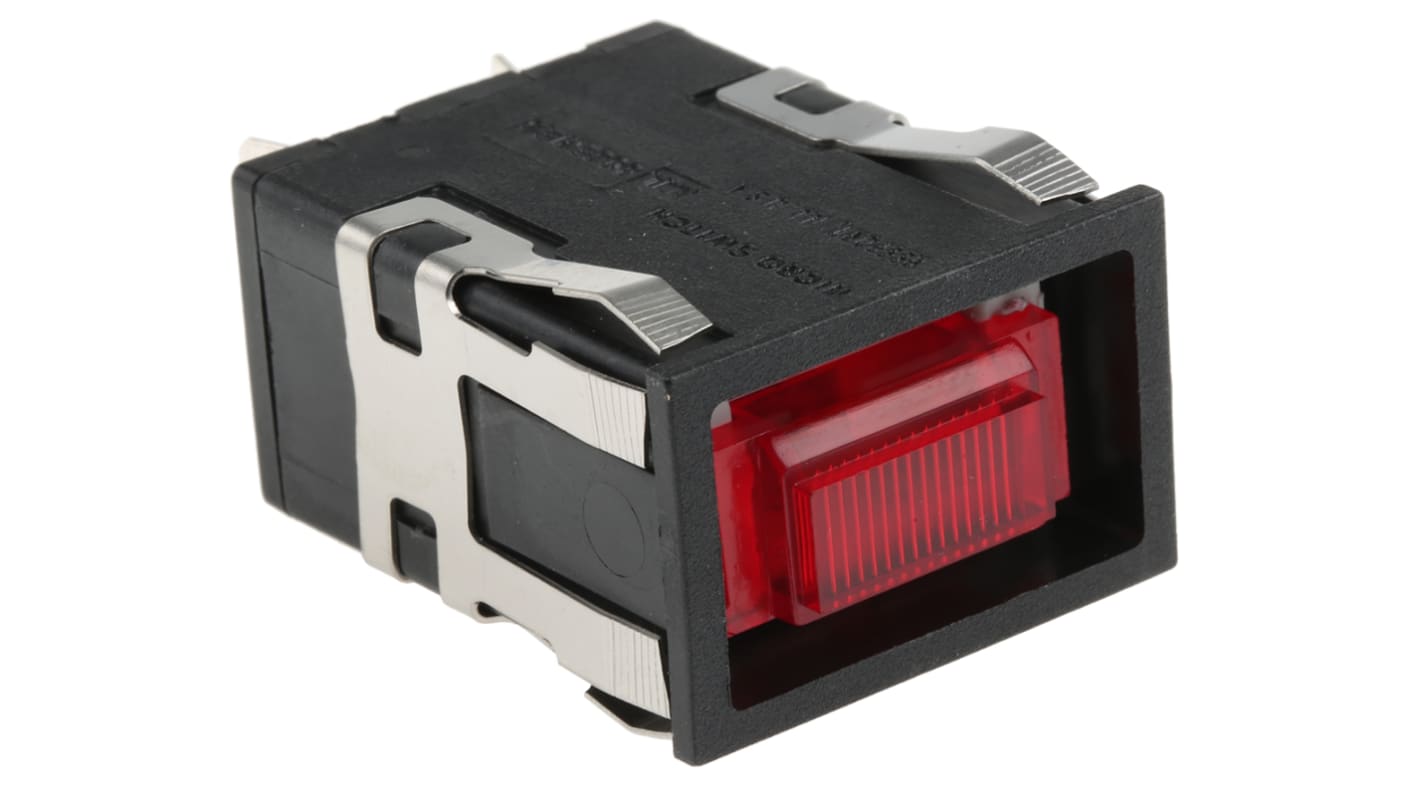

Honeywell AML32 Series Illuminated Push Button Switch, Front Panel Mount Red, 2PST, IP67

RS 제품 번호:: 664-171
제조사 부품 번호:: AML32FBC4AD
제조업체:: Honeywell

Honeywell AML32 Series Illuminated Push Button Switch, Front Panel Mount Red, 2PST, IP67

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩245,739.00

추가로 2026년 5월 11일 부터 181 개 단위 배송
추가로 2026년 5월 18일 부터 280 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩245,739.00
10 - 49	₩240,571.50
50 - 99	₩233,200.50
100 - 249	₩227,623.50
250 +	₩216,235.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 664-171
제조사 부품 번호:: AML32FBC4AD
제조업체:: Honeywell

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Honeywell
	Product Type	Push Button Switch
	Illuminated	Yes
	Series	AML32
	Push Button Actuation	Momentary
	Mount Type	Front Panel Mount
	Push Button Colour	Red
	Contact Configuration	2PST
	Push Button Style	Standard Bezel
	Push Button Shape	Rectangular
	Terminal Type	Solder
	IP Rating	IP67
	Illumination Voltage	250V ac
	Minimum Operating Temperature	0°C
	Push Button Material	Polycarbonate
	Maximum Operating Temperature	+55°C
	Standards/Approvals	UL, CSA
	Hazardous Area Certification	No
	Body Material	Glass Reinforced Polyester

	모두 선택
	브랜드 Honeywell
	Product Type Push Button Switch
	Illuminated Yes
	Series AML32
	Push Button Actuation Momentary
	Mount Type Front Panel Mount
	Push Button Colour Red
	Contact Configuration 2PST
	Push Button Style Standard Bezel
	Push Button Shape Rectangular
	Terminal Type Solder
	IP Rating IP67
	Illumination Voltage 250V ac
	Minimum Operating Temperature 0°C
	Push Button Material Polycarbonate
	Maximum Operating Temperature +55°C
	Standards/Approvals UL, CSA
	Hazardous Area Certification No
	Body Material Glass Reinforced Polyester

COO (Country of Origin):: US

Honeywell AML32 Series Push Button Switch, IP67, 250V AC Illumination Voltage - AML32FBC4AD

This push-button switch is a front-panel, momentary actuator designed for industrial control and human–machine Interfaces. It provides a compact, illuminated control input for electrical systems where a sealed, panel-mounted solution is required. Intended for integration into automation and electrical equipment, the unit combines a robust bezel and a tactile rectangular actuator to deliver a clear user Interface in operational environments.

Features and Benefits:

• IP67 sealing prevents ingress during washdown or outdoor use
• Illuminated at 250V AC for clear status indication
• Momentary operation for temporary control inputs
• 2PST contact arrangement supports dual-circuit switching
• Solder terminals enable secure wire connections
• Polycarbonate rectangular actuator resists impact and wear

Applications

• Suitable for control panels in factory automation systems
• Ideal for electrical distribution desks requiring illuminated controls
• Used with machine operator stations where momentary inputs are needed
• Can be used for emergency-stop indicator circuits with separate contacts
• Suitable for outdoor panel installations requiring waterproof switches

What materials ensure structural durability in the bezel and actuator?

The bezel is MADE from glass-reinforced PBT polyester for mechanical strength, while the actuator is polycarbonate to withstand repeated actuation.

What temperature range can the switch operate within?

It is specified to function between 0°C and +55°C, ensuring reliable performance in typical industrial ambient conditions.

How are electrical connections implemented for assembly?

Connections are provided via solder-type terminals designed for fixed wiring during panel installation.

Is the switch suitable for certified industrial installations?

It carries approvals from UL and CSA, indicating conformity with recognised North American safety standards.
