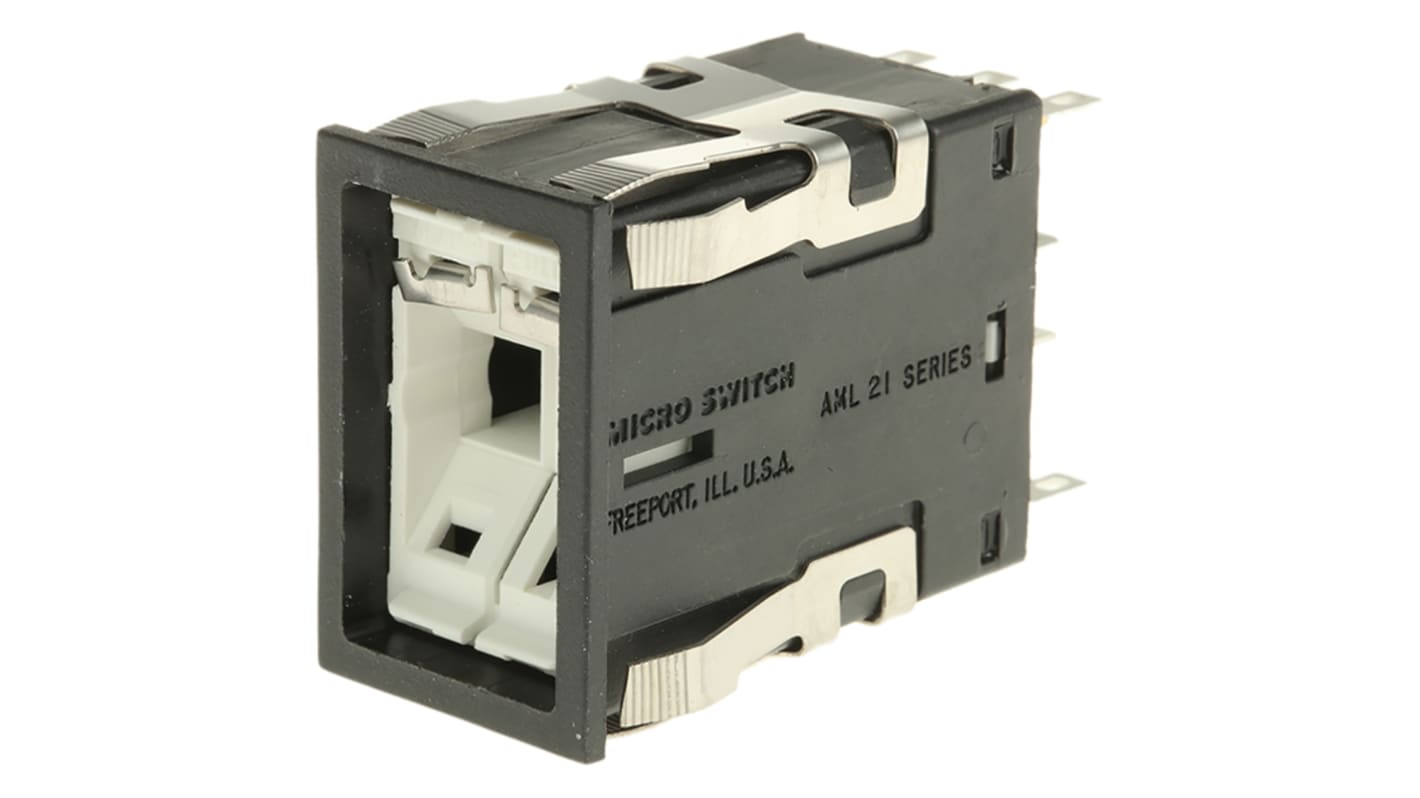

Honeywell AML Series Push Button Switch, Front Panel Mount Black, 2PDT, IP67

RS 제품 번호:: 664-008
제조사 부품 번호:: AML21GBA2AD
제조업체:: Honeywell

Honeywell AML Series Push Button Switch, Front Panel Mount Black, 2PDT, IP67

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩156,331.50

추가로 2026년 5월 11일 부터 43 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩156,331.50
10 - 49	₩151,651.50
50 - 99	₩146,991.00
100 - 249	₩143,793.00
250 +	₩140,653.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 664-008
제조사 부품 번호:: AML21GBA2AD
제조업체:: Honeywell

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Honeywell
	Product Type	Push Button Switch
	Illuminated	No
	Series	AML
	Push Button Actuation	Momentary
	Mount Type	Front Panel Mount
	Push Button Colour	Black
	Contact Configuration	2PDT
	Push Button Style	Standard Bezel
	Terminal Type	Solder
	Push Button Shape	Rectangular
	IP Rating	IP67
	Illumination Voltage	250V
	Minimum Operating Temperature	0°C
	Push Button Material	Polycarbonate
	Maximum Operating Temperature	+55°C
	Hazardous Area Certification	No
	Standards/Approvals	UL, CSA
	Body Material	Glass Reinforced Polyester

	모두 선택
	브랜드 Honeywell
	Product Type Push Button Switch
	Illuminated No
	Series AML
	Push Button Actuation Momentary
	Mount Type Front Panel Mount
	Push Button Colour Black
	Contact Configuration 2PDT
	Push Button Style Standard Bezel
	Terminal Type Solder
	Push Button Shape Rectangular
	IP Rating IP67
	Illumination Voltage 250V
	Minimum Operating Temperature 0°C
	Push Button Material Polycarbonate
	Maximum Operating Temperature +55°C
	Hazardous Area Certification No
	Standards/Approvals UL, CSA
	Body Material Glass Reinforced Polyester

COO (Country of Origin):: US

Honeywell AML Series Push Button Switch, IP67, Black - AML21GBA2AD

This push-button switch provides a compact, panel-mounted control solution for industrial systems, designed for momentary contact operation in demanding environments. It is intended for front-panel installation and offers a rectangular actuator in black polycarbonate to serve as a user input device where temporary actuation and reliable switching are required.

Features and Benefits:

• 2PDT configuration delivers dual-circuit switching for versatile control
• IP67 sealing allows operation in wet and dust-prone conditions
• Rated for illumination supply up to 250V enabling lamp-ready installations
• Operating range from 0–55°C supports typical indoor industrial sites
• Solder-style terminals permit low-profile, secure electrical connections
• Glass-reinforced PBT polyester body improves mechanical endurance

Applications

• Suitable for operator control panels in automated assembly lines
• Ideal for machine start/stop functions requiring momentary actuation
• Used with control cabinets where sealed user inputs are needed
• Can be used for field equipment requiring dust and water resistance

What actuation behaviour should I expect during use?

The actuator is momentary, so it returns to its rest position immediately after release to provide short-duration contact closure.

How is the switch secured to a control panel?

It is designed for front-panel mounting, allowing the bezel and actuator to SIT flush with the panel face for straightforward installation.

What materials contribute to mechanical robustness?

The enclosure is moulded from a glass-fibre-reinforced PBT polyester while the button cap is MADE from polycarbonate to resist impact and wear.

Are there recognised safety ratings for industrial deployments?

It carries approval marks from both UL and CSA, indicating conformity with established electrical safety assessment processes.

What Terminal type should my wiring process support?

The device uses solder terminals, so wiring methods should accommodate soldered connections for reliable contact.

Note

Lenses to be ordered separately, see stk no. 335-738 typically.

Approvals

UL; CSA; VDE
