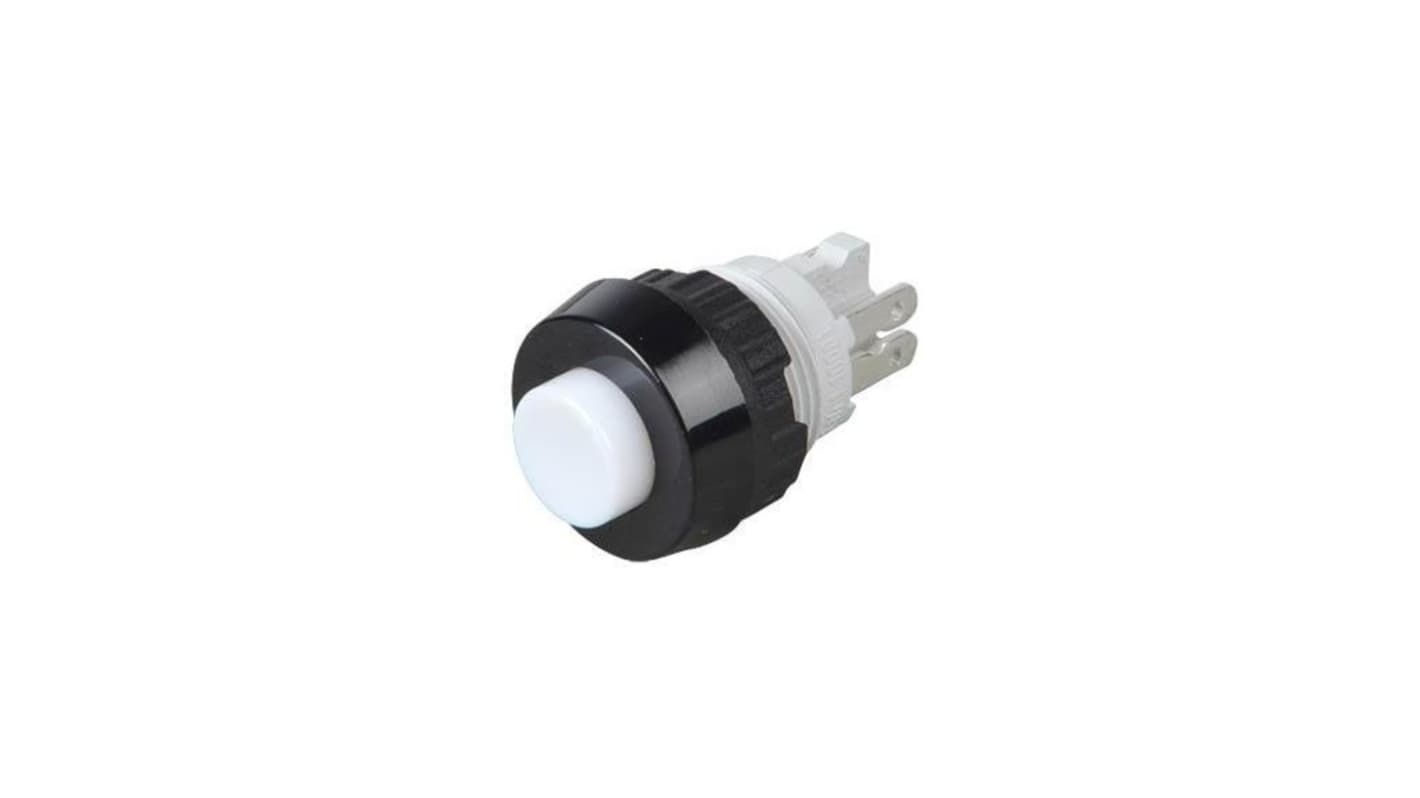

RAFI 1.1 Series Illuminated Push Button, Momentary, Through Hole, 15.2 mm Cutout, 1 NO, IP40, IP65 250 V ac
- RS 제품 번호:
- 524-615
- 제조사 부품 번호:
- 1.10.001.011/0205
- 제조업체:
- RAFI
Subtotal (1 Bag of 5 units)*
₩38,295.60
일시적 품절
- 2026년 6월 17일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Bag(s) | Per Bag | 한팩당* |
|---|---|---|
| 1 + | ₩38,295.60 | ₩7,659.12 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 524-615
- 제조사 부품 번호:
- 1.10.001.011/0205
- 제조업체:
- RAFI
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RAFI | |
| Actuator Colour | White | |
| Product Type | Illuminated Push Button | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | 1.1 | |
| Panel Cutout Size | 15.2 mm | |
| Mount Type | Through Hole | |
| Contact Configuration | 1 NO | |
| Terminal Type | Flat Quick Connect Terminal | |
| IP Rating | IP40, IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Round | |
| Switch Configuration | 1 NO | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH, RoHS | |
| Switch Contact Current | 0.7 A | |
| Height | 29.7mm | |
| Width | 19 mm | |
| Length | 19mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RAFI | ||
Actuator Colour White | ||
Product Type Illuminated Push Button | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series 1.1 | ||
Panel Cutout Size 15.2 mm | ||
Mount Type Through Hole | ||
Contact Configuration 1 NO | ||
Terminal Type Flat Quick Connect Terminal | ||
IP Rating IP40, IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact AC Voltage 250V ac | ||
Actuator Style Round | ||
Switch Configuration 1 NO | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH, RoHS | ||
Switch Contact Current 0.7 A | ||
Height 29.7mm | ||
Width 19 mm | ||
Length 19mm | ||
- COO (Country of Origin):
- HU
The RAFI Pushbutton features a quick connector and offers a momentary contact function. With an non-illuminable design, it is suitable for mechanical and system engineering, model construction, and home technology. It is equipped with versatile screw or flat plug terminal connections and ensures secure mounting with a threaded ring.
White bezel colour
Mounting hole 15.2 mm
IP65 and IP40 protection
Contact function 1 NO
RoHS and REACH compliant
