Eaton M22 Series Illuminated Push Button Light Switch, Maintained, Flush, 30.5 mm Cutout, Red LED, IP69K, IP67
- RS 제품 번호:
- 246-737
- 제조사 부품 번호:
- 182951 M30C-FDRL-R
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩45,462.16
일시적 품절
- 2026년 3월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩45,462.16 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-737
- 제조사 부품 번호:
- 182951 M30C-FDRL-R
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Push Button Light Switch | |
| Actuator Colour | Red | |
| Switch Operation | Maintained | |
| Illuminated | Yes | |
| Panel Cutout Size | 30.5 mm | |
| Series | M22 | |
| Mount Type | Flush | |
| LED Colour | Red | |
| IP Rating | IP69K, IP67 | |
| Actuator Style | Flat | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | Maintained, Latching | |
| Width | 46 mm | |
| Height | 30mm | |
| Length | 36mm | |
| Standards/Approvals | VDE 0660, UL NKCR, UL E9184, UL, IECEN 60947, GL IECEN 609475, DNV, CSA Class .: 110, CSAC. . 1405 and 94M91, CSA 0158, CSA, CE | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Push Button Light Switch | ||
Actuator Colour Red | ||
Switch Operation Maintained | ||
Illuminated Yes | ||
Panel Cutout Size 30.5 mm | ||
Series M22 | ||
Mount Type Flush | ||
LED Colour Red | ||
IP Rating IP69K, IP67 | ||
Actuator Style Flat | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration Maintained, Latching | ||
Width 46 mm | ||
Height 30mm | ||
Length 36mm | ||
Standards/Approvals VDE 0660, UL NKCR, UL E9184, UL, IECEN 60947, GL IECEN 609475, DNV, CSA Class .: 110, CSAC. . 1405 and 94M91, CSA 0158, CSA, CE | ||
Legend Blank | ||
제외
- COO (Country of Origin):
- DE

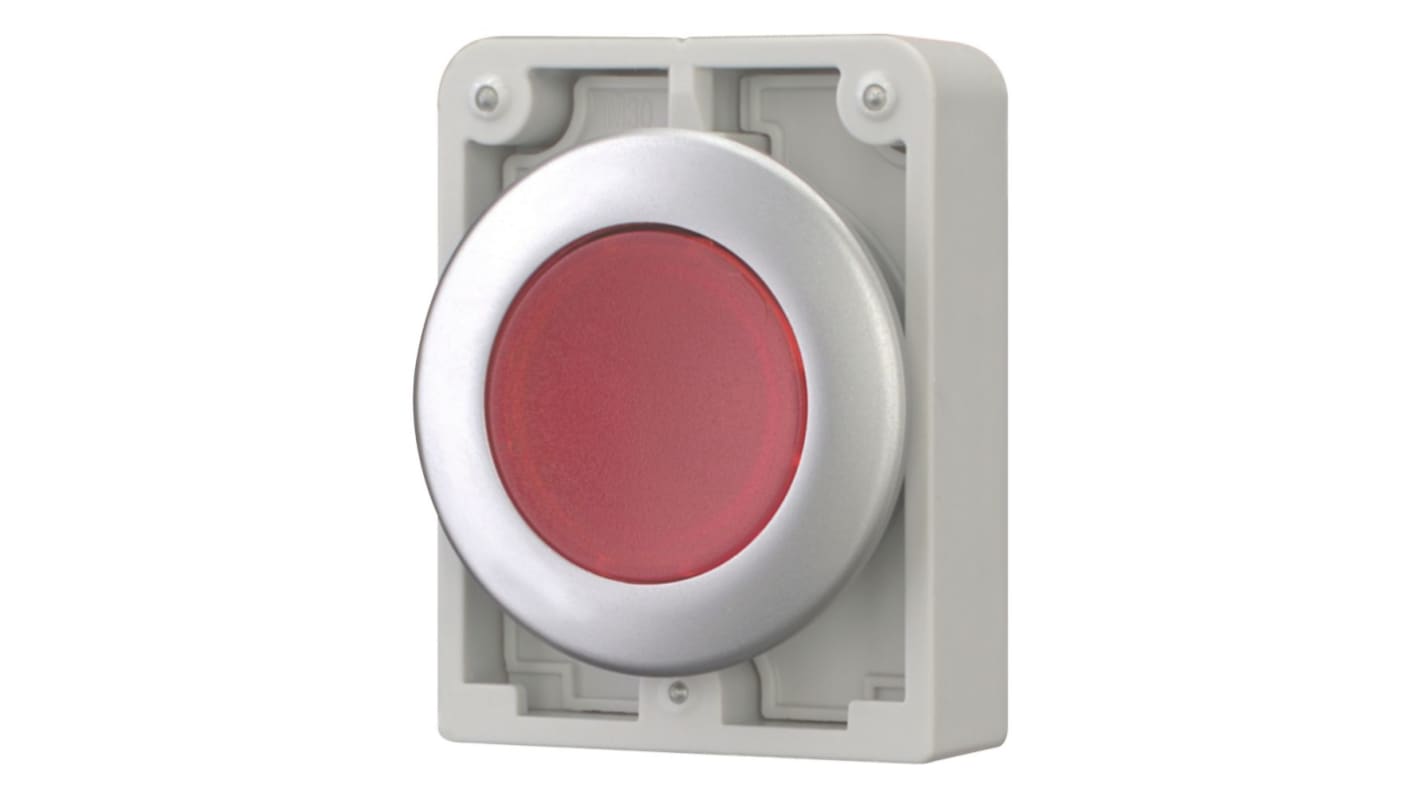

The Eaton illuminated pushbutton actuator from the M30 series is designed for optimal performance in demanding environments. With a flat design and a striking red colour, it not only captures attention but also enhances usability in various applications. Engineered with precision, this pushbutton actuator features a robust metal bezel that assures durability. Its versatility in connection, including SmartWire-DT compatibility, makes it suitable for a wide range of automation setups. Furthermore, the actuator showcases a choice between stay-put and spring-return functions, accommodating various operational needs. With superior protection ratings of IP66/67/69K, it is built to withstand tough conditions, ensuring reliability and safety in industrial settings.
Flat front design enhances usability and aesthetic appeal
Robust metal bezel construction ensures long-lasting durability
Versatile connection options provide flexibility in system integration
Stay-put or spring-return function allows for tailored operation
High protection ratings safeguard against environmental hazards
Lightweight design aids in easy installation and maintenance
Mechanical lifespan rated at 1,000,000 operations guarantees sustained performance
Compact dimensions fit conveniently in limited spaces
