Eaton C30 Series Illuminated Illuminated Push Button, Maintained, Screw, 30.5 mm Cutout, 1 NO, White LED, IP67, IP69K,
- RS 제품 번호:
- 246-655
- 제조사 부품 번호:
- 186007 C30C-FDRL-W-K10-24-P5
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩128,251.50
제조사가 재고 비축중
- 2026년 8월 24일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩128,251.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-655
- 제조사 부품 번호:
- 186007 C30C-FDRL-W-K10-24-P5
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Illuminated Push Button | |
| Actuator Colour | White | |
| Switch Operation | Maintained | |
| Illuminated | Yes | |
| Series | C30 | |
| Panel Cutout Size | 30.5 mm | |
| Mount Type | Screw | |
| Contact Configuration | 1 NO | |
| LED Colour | White | |
| Terminal Type | Screw | |
| IP Rating | IP67, IP69K | |
| Contact DC Voltage | 24V dc | |
| Contact AC Voltage | 24V ac | |
| Actuator Style | Flat | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Switch Configuration | Latching, Maintained | |
| Height | 46mm | |
| Standards/Approvals | IEC/EN 60947-5-1 VDE 0660, UL, CSA | |
| Width | 36mm | |
| Switch Contact Current | 4A | |
| Length | 1060mm | |
| Legend | Blank | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Illuminated Push Button | ||
Actuator Colour White | ||
Switch Operation Maintained | ||
Illuminated Yes | ||
Series C30 | ||
Panel Cutout Size 30.5 mm | ||
Mount Type Screw | ||
Contact Configuration 1 NO | ||
LED Colour White | ||
Terminal Type Screw | ||
IP Rating IP67, IP69K | ||
Contact DC Voltage 24V dc | ||
Contact AC Voltage 24V ac | ||
Actuator Style Flat | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Switch Configuration Latching, Maintained | ||
Height 46mm | ||
Standards/Approvals IEC/EN 60947-5-1 VDE 0660, UL, CSA | ||
Width 36mm | ||
Switch Contact Current 4A | ||
Length 1060mm | ||
Legend Blank | ||
제외
- COO (Country of Origin):
- DE

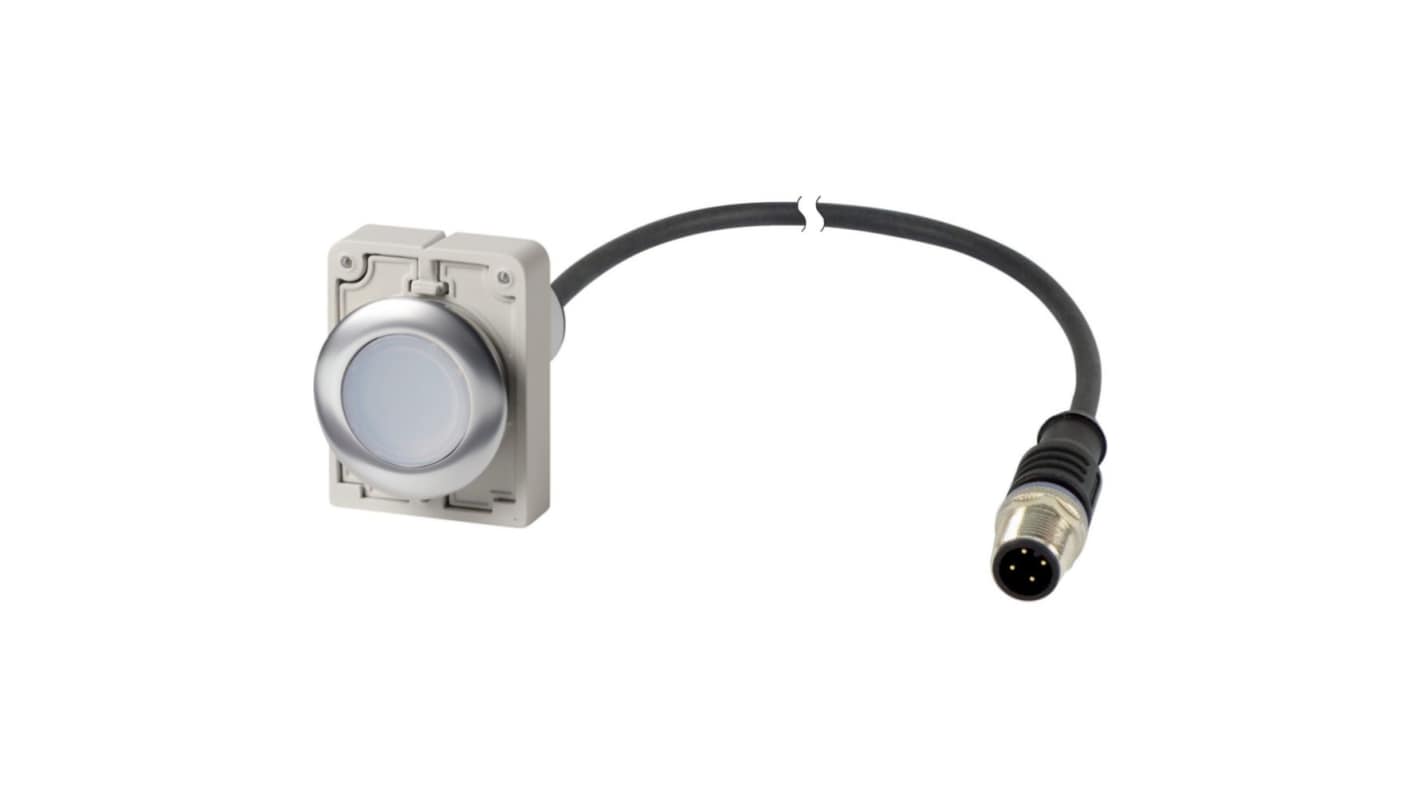

The Eaton illuminated pushbutton actuator is engineered to enhance user interactivity in various applications. Featuring a sleek flat design with a robust metal bezel, it provides a modern touch to control systems. Designed for durability, this actuator operates effectively in diverse environments, boasting an impressive lifespan and reliability. The actuator's white LED offers clear visibility, while its M12A plug connection ensures effortless installation. Additionally, its maintenance and latching switching functions cater to both standard and specialised operational needs, making it suitable for an extensive range of industrial applications.
Striking illuminated design for enhanced visibility and ease of use
Durable metal bezel ensures long-lasting performance in rugged environments
Flat actuator profile fits seamlessly into modern control panels
Wide operating temperature range allows for versatility in various settings
Designed for high reliability with impressive mechanical lifespan
Integrates easily with existing systems thanks to its M12A plug connection
Maintenance and latching functions provide flexibility for different applications
