Eaton White Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

RS 제품 번호:: 276-6585
제조사 부품 번호:: 216943 M22S-DL-W-X1
제조업체:: Eaton

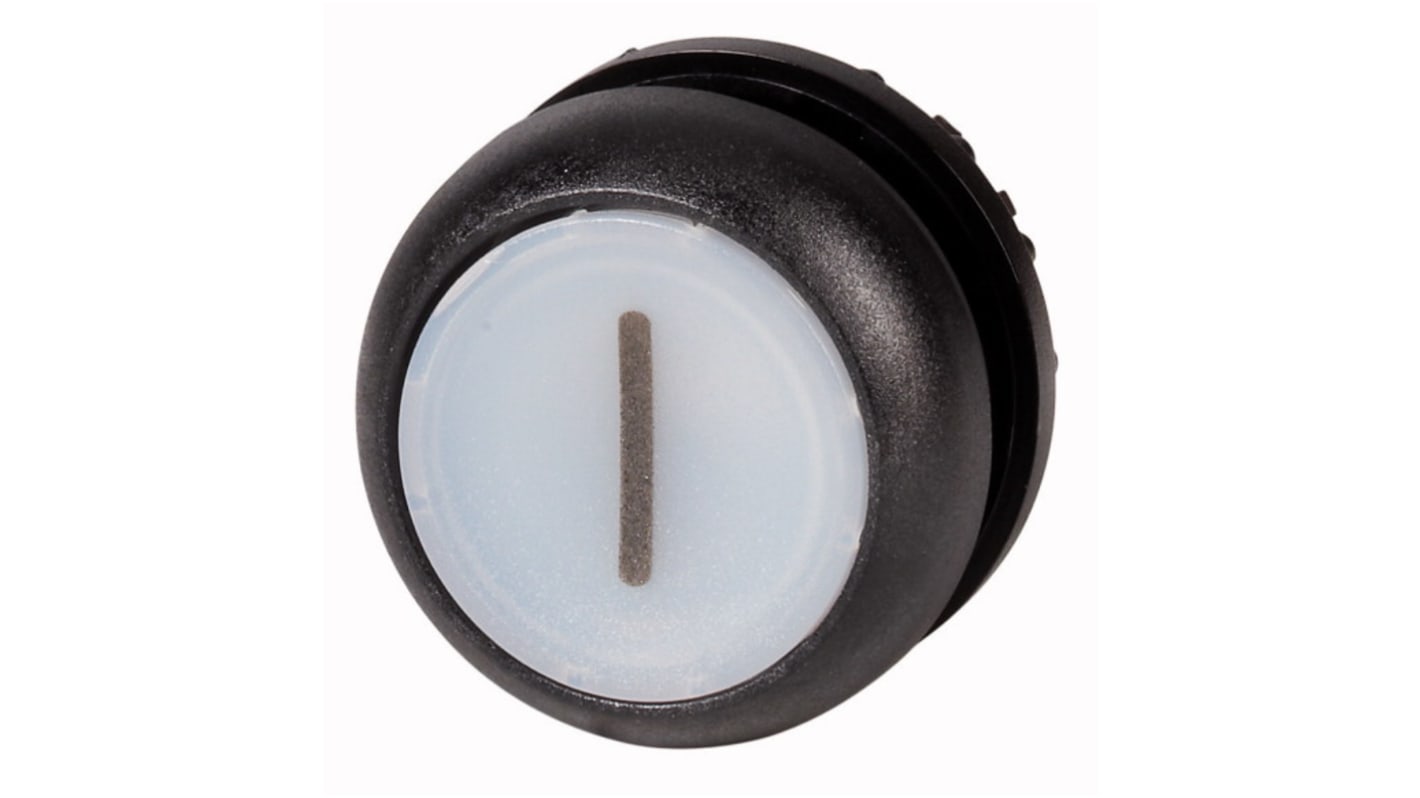

Eaton White Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩275,370.00

일시적 품절

2026년 10월 06일 부터 14 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 4	₩275,370.00
5 - 9	₩267,108.00
10 +	₩240,402.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 276-6585
제조사 부품 번호:: 216943 M22S-DL-W-X1
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Series	Eaton Moeller
	Product Type	Push Button Actuator
	Cutout Diameter	22.5mm
	Push Button Colour	White
	Push Button Shape	Round
	Push Button Actuation	Momentary Spring Return
	Push Button Style	Flat
	Push Button Material	Plastic
	IP Rating	IP66, IP67, IP69K
	Push Button Marking	I
	Push Button Diameter	29.7mm
	Standards/Approvals	CE, CSA, CSA-C22.2 No. 94-91, CSA Class No.:3211-03, CSA-C22.2 No. 14-05, CSA File No.:012528, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, RoHS, UL, UL 508, UL Category Control No.:NKCR, UL File No.:E29184, VDE 0660
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Series Eaton Moeller
	Product Type Push Button Actuator
	Cutout Diameter 22.5mm
	Push Button Colour White
	Push Button Shape Round
	Push Button Actuation Momentary Spring Return
	Push Button Style Flat
	Push Button Material Plastic
	IP Rating IP66, IP67, IP69K
	Push Button Marking I
	Push Button Diameter 29.7mm
	Standards/Approvals CE, CSA, CSA-C22.2 No. 94-91, CSA Class No.:3211-03, CSA-C22.2 No. 14-05, CSA File No.:012528, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, RoHS, UL, UL 508, UL Category Control No.:NKCR, UL File No.:E29184, VDE 0660
	Hazardous Area Certification No

Datasheet - 216943

COO (Country of Origin):: DE

Eaton Push Button Actuator, 29.7mm Diameter, IP66, IP67, IP69K - 216943 M22S-DL-W-X1

This push-button actuator is an illuminated, flush-mounted control element designed for industrial control panels and machinery. It provides a momentary, spring-return action with a labelled white round flat actuator set into a black bezel, suitable for harsh environments and integration with smartwire-DT connections.

Features and Benefits:

• 3600 operations/h rated operation frequency for repeated use
• IP66/IP67/IP69K ingress protection enabling harsh-environment installation
• Momentary spring return actuation for quick tactile feedback
• Plastic construction offering low-weight, corrosion-resistant front
• 5N actuating force for consistent manual operation
• Mechanical lifespan of 5,000,000 operations for long service intervals

Applications

• Suitable for industrial control pushbutton switch panels
• Used with smartwire-DT enabled switchgear systems
• Ideal for machinery operator stations requiring illumination
• Can be used for marine and offshore control enclosures
• Used for machine safety reset and momentary commands

What panel cut-out is required for installation?

It fits a 22.5 mm cut-out and mounts flush in standard control panels.

How is the actuator marked and finished for operator recognition?

The lens is inscribed with the marking I and finished in white within a black bezel.

What approvals support use in regulated installations?

It carries IEC/EN 60947, UL, CSA, VDE and various classification society approvals.

How does the device handle thermal and mechanical stresses?

It meets thermal stability and insulating-material resistance tests and withstands 30 g mechanical shock.

What connectivity and Interface features are available?

It supports connection to smartwire-DT systems via SWD-RMQ interfaces.
