Eaton Orange Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

RS 제품 번호:: 276-6520
제조사 부품 번호:: 167429 M22-DL-A
제조업체:: Eaton

Eaton Orange Momentary Spring Return Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

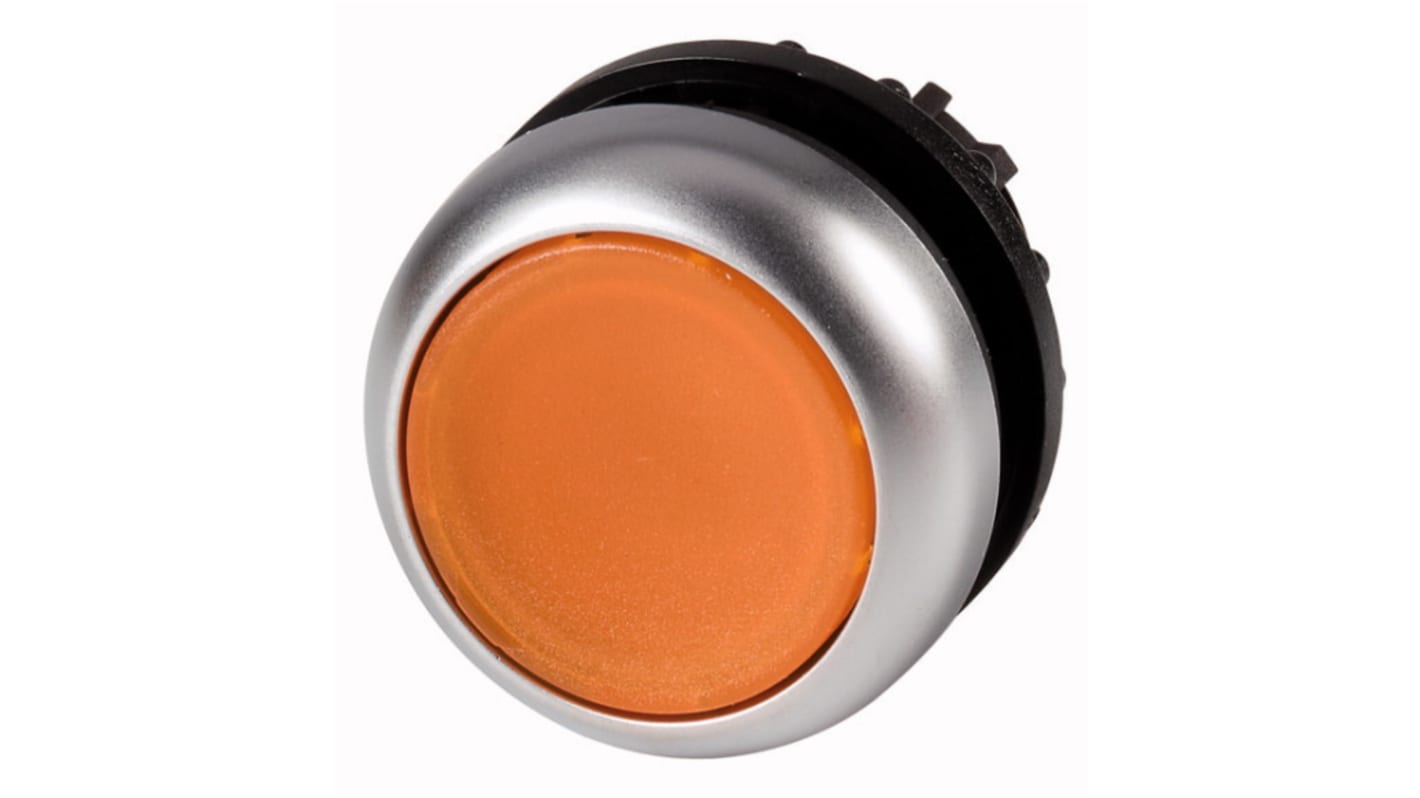

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩249,048.00

추가로 2026년 9월 29일 부터 2 개 단위 배송
추가로 2026년 10월 06일 부터 32 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 4	₩249,048.00
5 - 9	₩241,576.00
10 +	₩217,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 276-6520
제조사 부품 번호:: 167429 M22-DL-A
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Push Button Actuator
	Series	Eaton Moeller
	Cutout Diameter	22.5mm
	Push Button Colour	Orange
	Push Button Shape	Round
	Push Button Actuation	Momentary Spring Return
	Push Button Style	Flat
	Push Button Material	Plastic
	IP Rating	IP66, IP67, IP69K
	Push Button Marking	Blank
	Push Button Diameter	22.5mm
	Standards/Approvals	VDE 0660, RoHS, GL, IEC/EN 60947, LR, DNV
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Product Type Push Button Actuator
	Series Eaton Moeller
	Cutout Diameter 22.5mm
	Push Button Colour Orange
	Push Button Shape Round
	Push Button Actuation Momentary Spring Return
	Push Button Style Flat
	Push Button Material Plastic
	IP Rating IP66, IP67, IP69K
	Push Button Marking Blank
	Push Button Diameter 22.5mm
	Standards/Approvals VDE 0660, RoHS, GL, IEC/EN 60947, LR, DNV
	Hazardous Area Certification No

Datasheet - 167429

COO (Country of Origin):: DE

Eaton Push Button Actuator, 22.5mm Cutout Diameter, Orange - 167429 M22-DL-A

This push button actuator provides an illuminated, momentary control Interface for industrial panels, designed for flush mounting and frequent operator use. It delivers a spring-return actuation in an orange, flat, round plastic form and is suited to control installations requiring a sealed front and clear Visual indication.

Features and Benefits:

• IP66/IP67/IP69K waterproof push-button protects against harsh washdowns
• Momentary spring-return push-button ensures immediate reset after actuation
• 22.5mm push-button actuator matches standard panel cut-out 22.5mm
• IEC 60947 push-button actuator meets relevant switchgear mechanical requirements
• VDE RoHS certified push-button demonstrates compliance with listed standards
• Blank-marked 22.5mm actuator provides a NEUTRAL front for custom labelling

Applications

• Suitable for assembly-line control stations requiring washdown resistance
• Ideal for food-processing panels needing IP69K ingress protection
• Used with smartwire connections for networked operator devices
• Can be used for machine stop/start interfaces with momentary action
• Suitable for marine or offshore control cabinets requiring listed approvals

What temperatures can it operate within?

It functions between -25°C and 70°C ambient temperatures.

Which materials form the bezel and actuator?

The bezel and actuator are produced from plastic materials.

How is it mounted in a control panel?

It mounts flush into a 22.5 mm opening with a front-ring fitting.

Does it include inscriptions or legends on the button?

The front element is supplied blank without any marking.

What degree of mechanical shock resistance does it offer?

It meets sinusoidal shock resistance tests to IEC/EN 60068-2-27.
