Eaton RMQ-Titan Series Orange Maintained Push Button Actuator, 30.5 mm Cutout, IP66, IP67, IP69K

RS 제품 번호:: 274-1140
제조사 부품 번호:: 182949 M30C-FDRL-A
제조업체:: Eaton

Eaton RMQ-Titan Series Orange Maintained Push Button Actuator, 30.5 mm Cutout, IP66, IP67, IP69K

Subtotal (1 unit)*

₩54,900.00

제조사가 재고 비축중

2026년 11월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩54,900.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 274-1140
제조사 부품 번호:: 182949 M30C-FDRL-A
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Series	RMQ-Titan
	Product Type	Push Button Actuator
	Cutout Diameter	30.5mm
	Push Button Colour	Orange
	Push Button Shape	Flat
	Push Button Actuation	Maintained
	Push Button Style	Illuminated
	Push Button Material	Metal
	IP Rating	IP66, IP67, IP69K
	Push Button Marking	Blank
	Push Button Diameter	30.5mm
	Standards/Approvals	IEC/EN 60947, VDE 0660
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Series RMQ-Titan
	Product Type Push Button Actuator
	Cutout Diameter 30.5mm
	Push Button Colour Orange
	Push Button Shape Flat
	Push Button Actuation Maintained
	Push Button Style Illuminated
	Push Button Material Metal
	IP Rating IP66, IP67, IP69K
	Push Button Marking Blank
	Push Button Diameter 30.5mm
	Standards/Approvals IEC/EN 60947, VDE 0660
	Hazardous Area Certification No

COO (Country of Origin):: DE

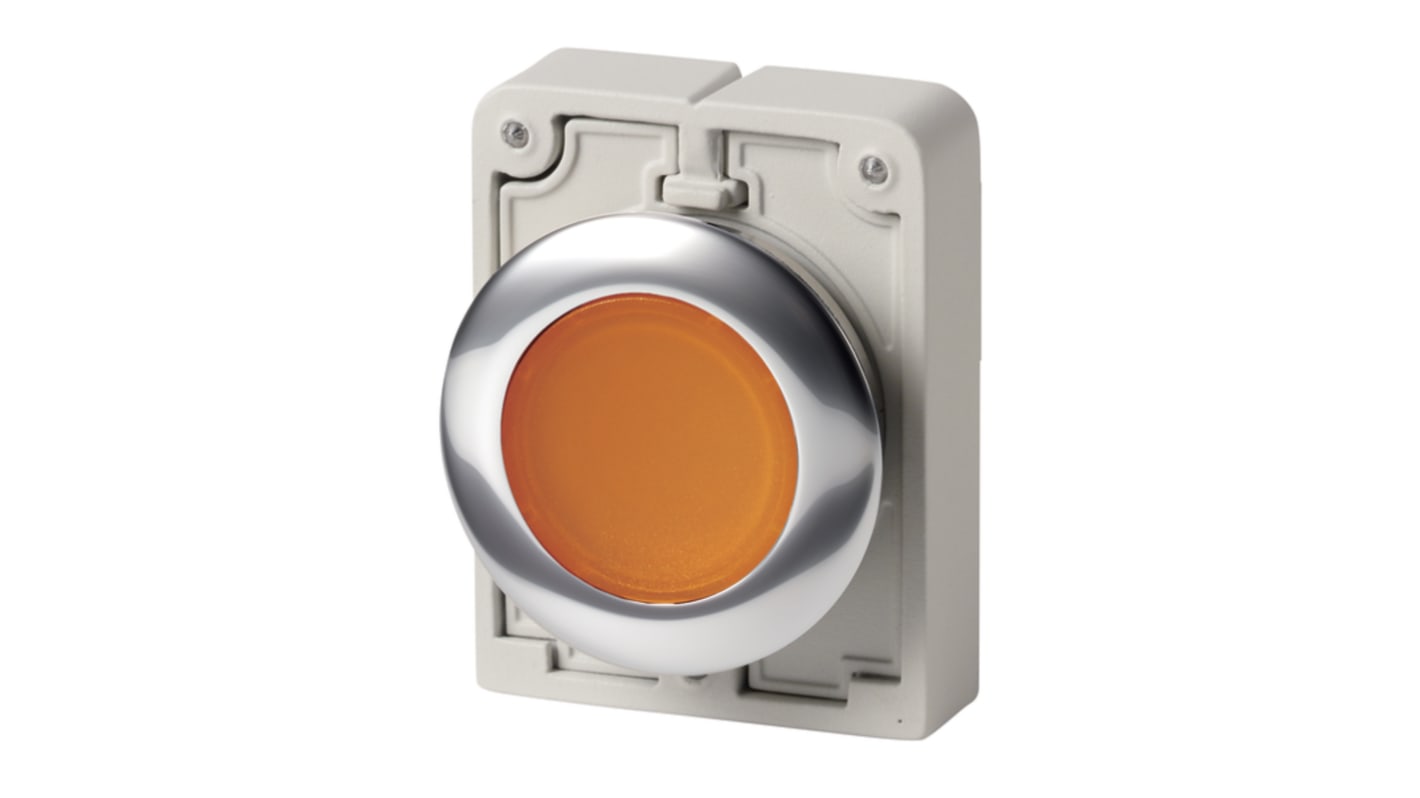

Eaton Push Button Actuator, 30.5mm Cutout Diameter, Orange - 182949 M30C-FDRL-A

This push button actuator is an illuminated, flat-front control designed for maintained actuation in industrial panels. It provides a visible switching Interface with a metal bezel and an Orange lens, suitable for environments requiring a sealed front and Durable manual operation.

Features and Benefits:

• IP66/IP67/IP69K sealing protects against water and dust ingress
• Maintained actuation delivers a latching switching function
• Metal bezel offers robust front-side resistance to impact
• 5N actuation force enables consistent user engagement
• Mechanical life of 1,000,000 operations supports long service intervals

Applications

• Suitable for heavy-duty panel-mount push button installations
• Ideal for control stations in damp or washdown environments
• Can be used for operator panels requiring illuminated indication
• Appropriate for systems needing a single command position

What front protection level does it provide?

The front element is rated to IP67 and IP69K to withstand water jets and temporary immersion.

How does the device perform under temperature extremes?

It operates between -25°C and 70°C for a wide ambient range.

What mechanical stress can it tolerate?

It meets sinusoidal shock requirements of 15g with an 11ms duration.

How is illumination supported electrically?

The actuator is designed for illumination and is compatible with SWD-RMQ smartwire-DT connections.
