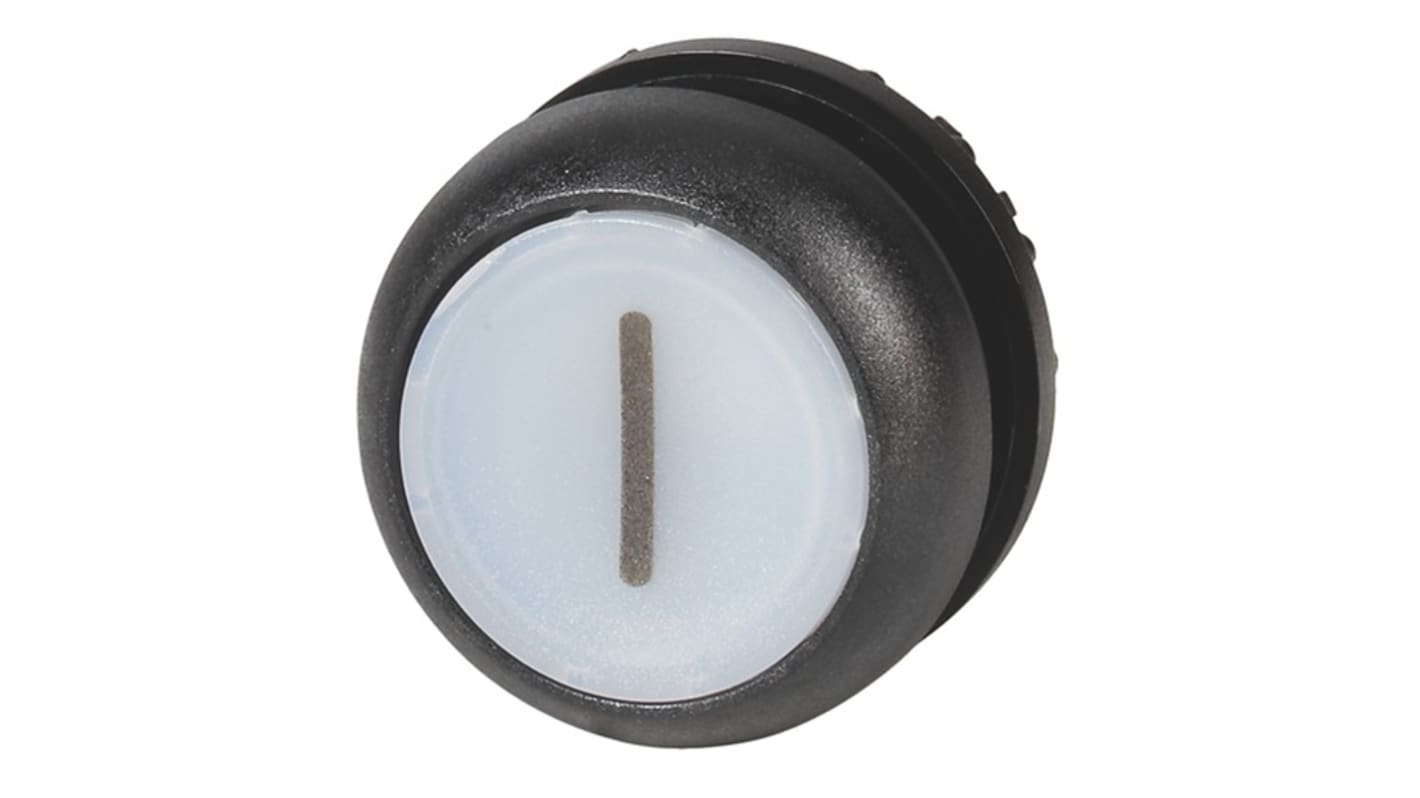

Eaton White Switching Function Latching Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

RS 제품 번호:: 272-2270
제조사 부품 번호:: 216964 M22S-DRL-W-X1
제조업체:: Eaton

Eaton White Switching Function Latching Push Button Actuator, 22.5 mm Cutout, IP66, IP67, IP69K

Subtotal (1 unit)*

₩40,340.00

제조사가 재고 비축중

2026년 11월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩40,340.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 272-2270
제조사 부품 번호:: 216964 M22S-DRL-W-X1
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Series	Eaton Moeller
	Product Type	Push Button Actuator
	Cutout Diameter	22.5mm
	Push Button Colour	White
	Push Button Shape	Round
	Push Button Actuation	Switching Function Latching
	Push Button Style	Flush
	Push Button Material	Plastic
	IP Rating	IP66, IP67, IP69K
	Push Button Marking	Inscribed
	Push Button Diameter	29.7mm
	Standards/Approvals	UL 508, UL Category Control No.: NKCR, LR DNV GL, VDE 0660, IEC/EN 60947-5, CSA IEC/EN 60947, CSA File No.: 012528, UL File No.: E29184, CSA Class No.: 3211-03, CSA-C22.2 No. 94-91, CE, UL CSA-C22.2 No. 14-05
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Series Eaton Moeller
	Product Type Push Button Actuator
	Cutout Diameter 22.5mm
	Push Button Colour White
	Push Button Shape Round
	Push Button Actuation Switching Function Latching
	Push Button Style Flush
	Push Button Material Plastic
	IP Rating IP66, IP67, IP69K
	Push Button Marking Inscribed
	Push Button Diameter 29.7mm
	Standards/Approvals UL 508, UL Category Control No.: NKCR, LR DNV GL, VDE 0660, IEC/EN 60947-5, CSA IEC/EN 60947, CSA File No.: 012528, UL File No.: E29184, CSA Class No.: 3211-03, CSA-C22.2 No. 94-91, CE, UL CSA-C22.2 No. 14-05
	Hazardous Area Certification No

COO (Country of Origin):: DE

Eaton Push Button Actuator, 22.5mm Cutout Diameter, White - 216964 M22S-DRL-W-X1

This pushbutton actuator is an illuminated, maintained control element designed for industrial control panels and machinery. It provides a labelled, flat-front element for operator input and is constructed for panel mounting with a 22.5 mm cut-out. The device is suitable for use where a stay‑put switching function is required and accepts smartwire‑DT connectivity with compatible connections.

Features and Benefits:

• IP66, IP67, IP69K ingress protection for harsh environments
• Latching pushbutton switch offers maintained actuation functionality
• Inscribed white round flush pushbutton for clear operator marking
• 1,800 operations/h mechanical duty supports frequent use
• Ambient operating range from -25 °C to 70 °C for varied climates

Applications

• Suitable for heavy‑duty washdown environments requiring IP69K protection
• Ideal for control panels needing UL 508 certified pushbutton components
• Used with smartwire‑DT systems for distributed signalling integration
• Can be used on machinery requiring IEC 60947‑5 compliant control devices
• Suitable for panels where a 29.7 mm pushbutton diameter is preferred

What material is used for the front bezel and lens?

The bezel and lens are MADE from plastic to provide corrosion‑resistant surfaces.

How is the device protected against mechanical shock?

It is rated to IEC/EN 60068‑2‑27 with 30 g sinusoidal shock resistance.

What is the expected mechanical lifespan under AC operation?

The mechanism is specified for 1,000,000 operations when AC operated.

How does the device accommodate panel labelling requirements?

The actuator is inscribed and supplied labelled to meet standard inscription needs.

What connection option exists for digital communication integration?

It supports connection to smartwire‑DT using the appropriate SWD‑RMQ interfaces.
