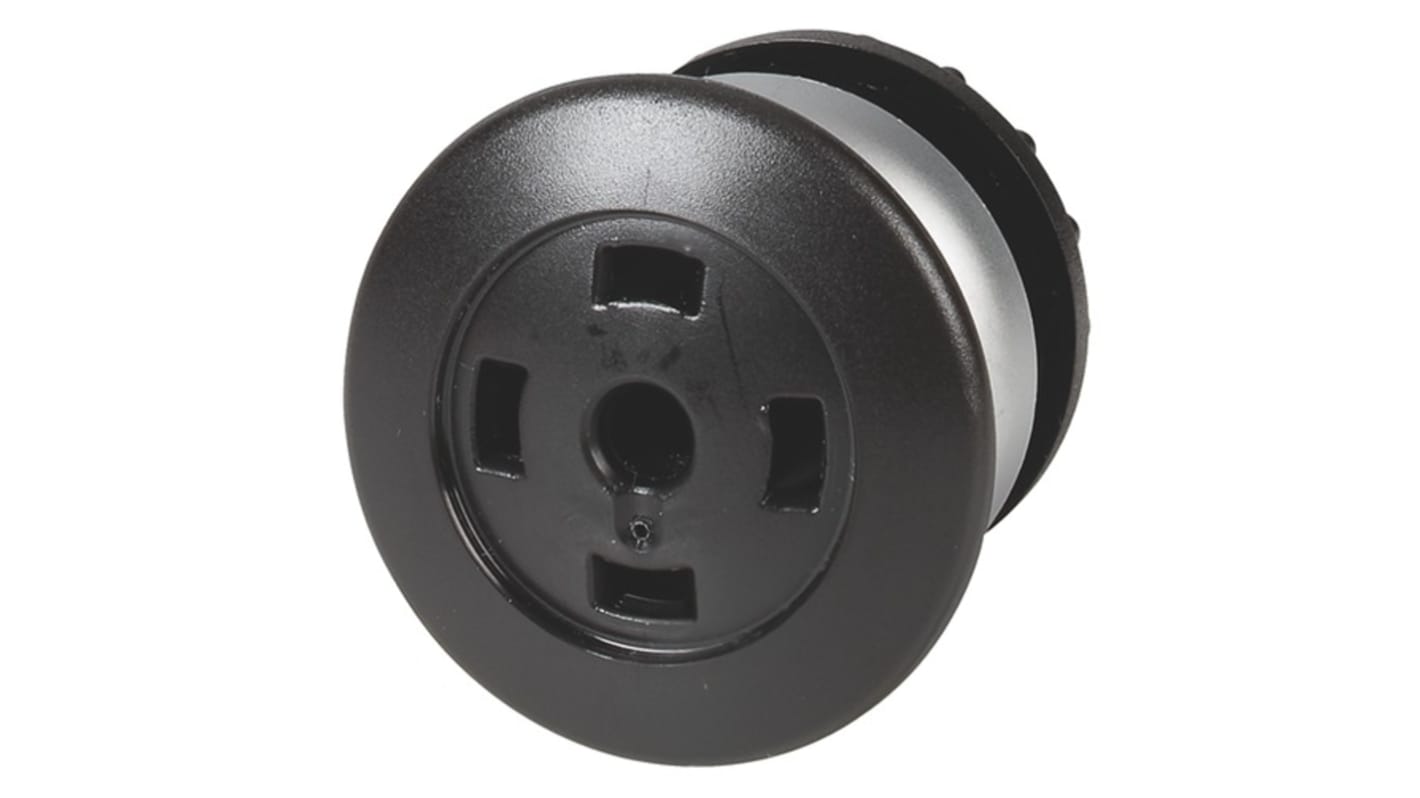

Eaton M22 Series Black Switching Function Latching Push Button Actuator, 22.5 mm Cutout, IP67, IP69K

RS 제품 번호:: 272-2209
제조사 부품 번호:: 216759 M22-DRP-S-X
제조업체:: Eaton

Eaton M22 Series Black Switching Function Latching Push Button Actuator, 22.5 mm Cutout, IP67, IP69K

Subtotal (1 unit)*

₩38,620.00

제조사가 재고 비축중

2026년 11월 16일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩38,620.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 272-2209
제조사 부품 번호:: 216759 M22-DRP-S-X
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Push Button Actuator
	Series	M22
	Cutout Diameter	22.5mm
	Push Button Colour	Black
	Push Button Shape	Mushroom Shaped
	Push Button Actuation	Switching Function Latching
	Push Button Style	Flat
	Push Button Material	Plastic
	IP Rating	IP67, IP69K
	Push Button Marking	Blank
	Push Button Diameter	36.5mm
	Standards/Approvals	CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, NKCR, UL, UL 508, VDE 0660
	Hazardous Area Certification	No

	모두 선택
	브랜드 Eaton
	Product Type Push Button Actuator
	Series M22
	Cutout Diameter 22.5mm
	Push Button Colour Black
	Push Button Shape Mushroom Shaped
	Push Button Actuation Switching Function Latching
	Push Button Style Flat
	Push Button Material Plastic
	IP Rating IP67, IP69K
	Push Button Marking Blank
	Push Button Diameter 36.5mm
	Standards/Approvals CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, NKCR, UL, UL 508, VDE 0660
	Hazardous Area Certification No

COO (Country of Origin):: DE

Eaton Push Button Actuator, 36.5mm Diameter, IP67 - 216759 M22-DRP-S-X

This push-button actuator is a maintained mushroom-headed control element designed for industrial panels, providing a Durable manual Interface for switching operations in machinery and control systems. It is intended for environments requiring ingress protection and conforms to recognised international equipment standards for electrical control devices.

Features and Benefits:

• Latching switching function offers secure maintained operation
• IP67 and IP69K protection enables washdown and dustproof use
• 5N actuating force provides consistent tactile operation
• Mechanical lifespan of 1,000,000 operations supports long service life
• Compatible with SmartWire‑DT connections for integrated wiring
• Front bezel in titanium‑coloured plastic resists standard industrial stress

Applications

• Suitable for food processing washdown stations requiring IP69K
• Ideal for machine control panels needing latching switches
• Used with automated systems where 1800 operations/h rate applies
• Can be used in maritime rated switchgear per marine approvals
• Suitable for control enclosures needing NEMA4X and NEMA13 protection

What cut-out is required for panel mounting?

A circular panel opening of 22.5 mm diameter is required.

What temperatures can it withstand during operation?

It operates between -25°C and 70°C ambient temperatures.

What approvals support use in certified installations?

It carries CE, CSA, UL 508 and IEC/EN 60947/60947‑5 approvals.

How is shock resistance specified for harsh environments?

It meets IEC/EN 60068‑2‑27 with 30 g sinusoidal shock for 11 ms.

What colour and material are used for the actuator cap?

The cap is black plastic with a 36.5 mm diameter.
