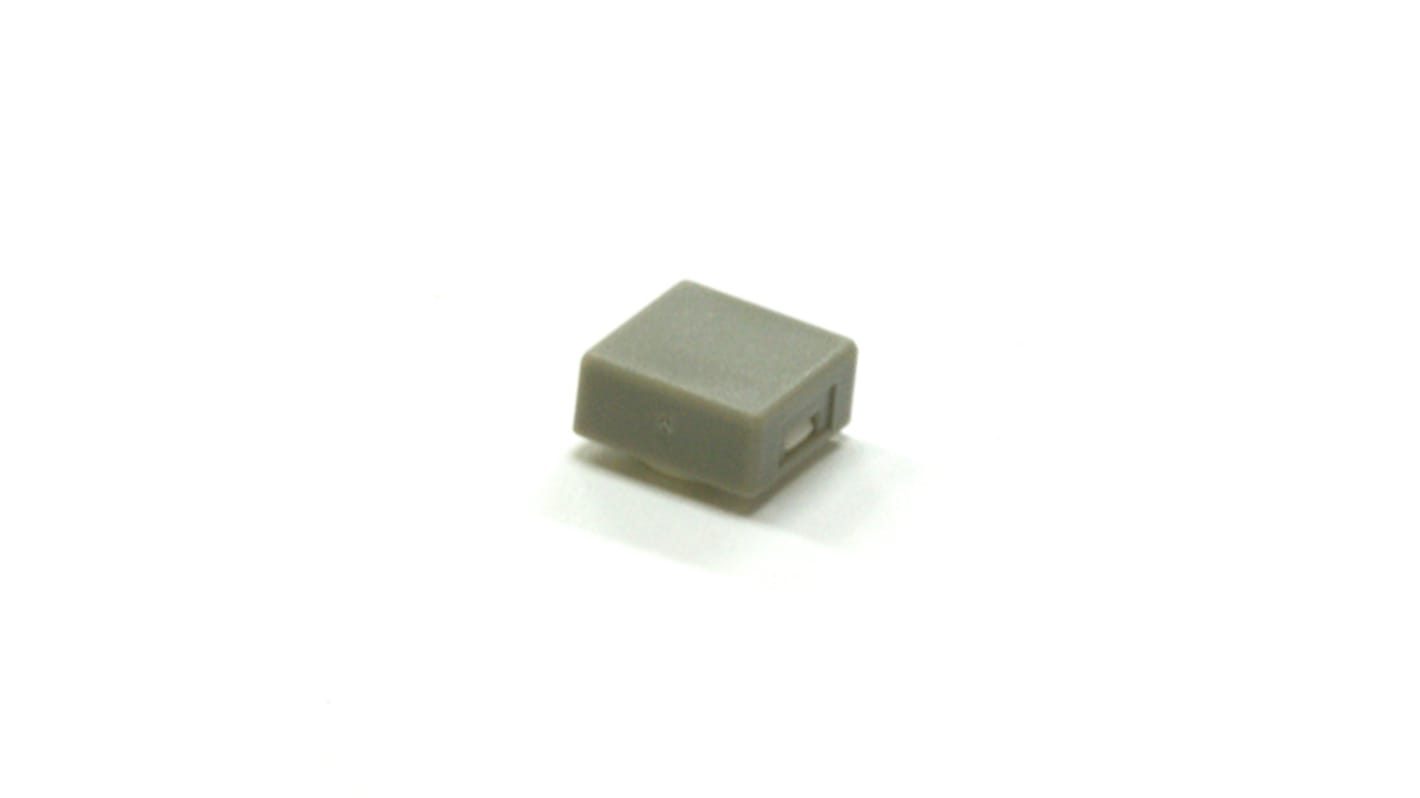

Nidec Components Push Button Cap for Use with TP and TPL Series Ultra-Miniature Pushbutton Switch
- RS 제품 번호:
- 180-6914
- 제조사 부품 번호:
- 140007480235
- 제조업체:
- Nidec Components
대량 구매 할인 기용 가능
Subtotal (1 Bag of 10 units)*
₩10,377.60
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 10 - 140 | ₩1,037.76 | ₩10,383.24 |
| 150 - 490 | ₩996.40 | ₩9,967.76 |
| 500 + | ₩955.04 | ₩9,554.16 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 180-6914
- 제조사 부품 번호:
- 140007480235
- 제조업체:
- Nidec Components
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Nidec Components | |
| Accessory Type | Push Button | |
| For Use With | TP and TPL Series Ultra-Miniature Pushbutton Switch | |
| 모두 선택 | ||
|---|---|---|
브랜드 Nidec Components | ||
Accessory Type Push Button | ||
For Use With TP and TPL Series Ultra-Miniature Pushbutton Switch | ||
- COO (Country of Origin):
- JP
The Copal Electronics grey TP & TPL series button for use with TP & TPL series ultra-miniature pushbutton switch has high contact reliability. It has dielectric strength of 500V AC 1 minute and minimum insulation resistance of 100MΩ. It has operating temperature ranging between -10℃ to +70℃.
Long travel
High contact reliability - Clip type contact mechanism ensures high reliability
PC board mount - Terminal pitch is in inches (multiples of 2.54 mm). The unique terminal shape prevents the terminal pins from coming loose from the PC board during dip soldering
Epoxy sealed terminals prevent ingress of flux
Unified mounting height
High contact reliability - Clip type contact mechanism ensures high reliability
PC board mount - Terminal pitch is in inches (multiples of 2.54 mm). The unique terminal shape prevents the terminal pins from coming loose from the PC board during dip soldering
Epoxy sealed terminals prevent ingress of flux
Unified mounting height
