Nidec Components Push Button Cap for Use with TR and TM Series Ultra-Miniature Illuminated Pushbutton Switch

모든 Push Button Caps 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Bag of 10 units)*

₩19,627.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 3월 25일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
Per Bag*
10 - 140₩1,962.72₩19,627.20
150 - 490₩1,885.64₩18,856.40
500 +₩1,806.68₩18,066.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
180-6886
제조 부품 번호:
140000480720
제조업체:
Nidec Components
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Nidec Components

Accessory Type

Button

For Use With

TR and TM Series Ultra-Miniature Illuminated Pushbutton Switch

COO (Country of Origin):
JP

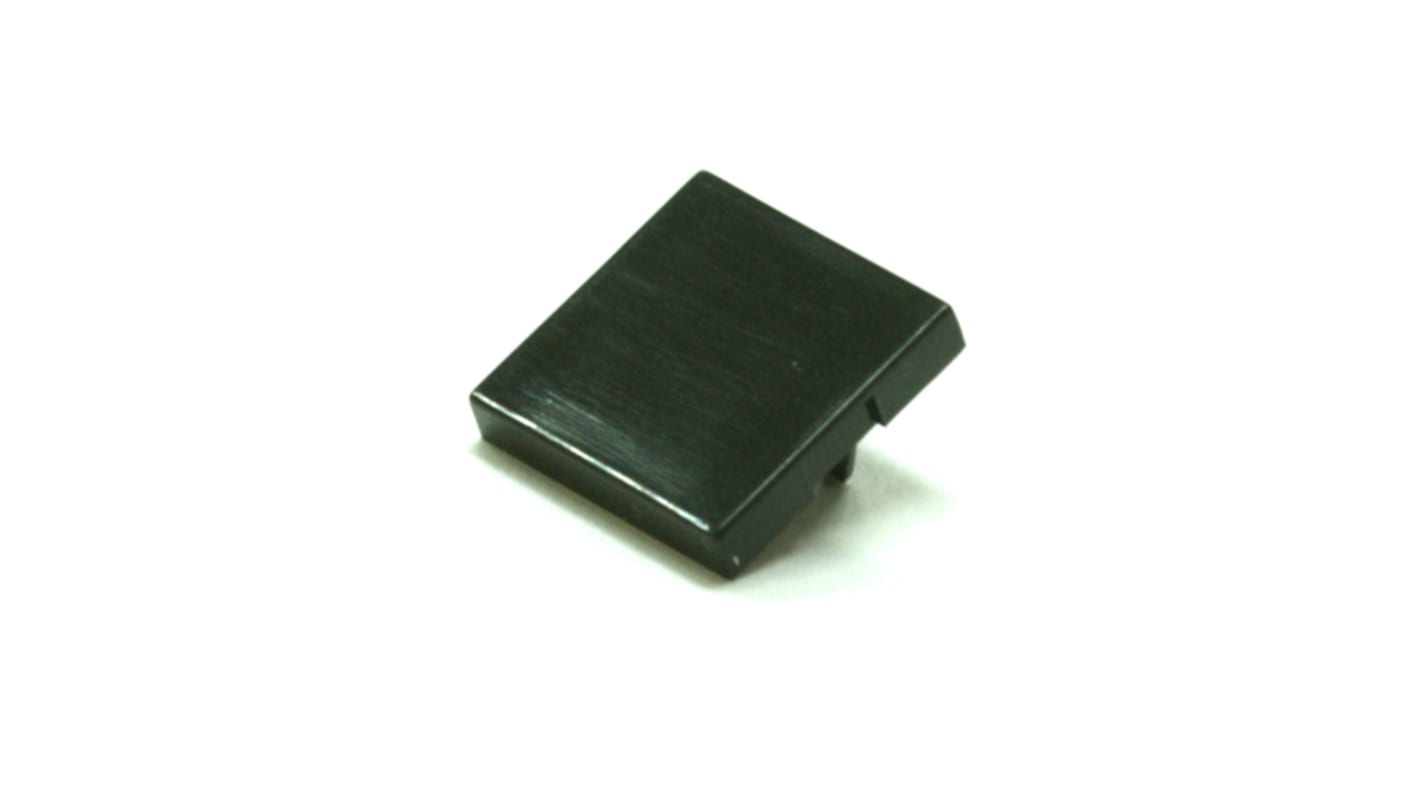

The Copal Electronics dark grey TM & TR series button for use with TR and TM Series Ultra-Miniature illuminated pushbutton switch. It has dielectric strength of 250V AC 1 minute and minimum insulation resistance of 100MΩ. It has operating temperature ranging between -20℃ to +70℃.

Two types of contact - TR series: Conductive rubber contact for soft tactile feel, TM series: Metal contact for sharp tactile feel
PC board mount - Terminal pitch is in inches (multiples of 2.54 mm). The unique terminal shape prevents the terminal pins from coming loose from the PC board during dip soldering
Enhanced resistance - Improved terminal structure protects the contacts from soldering heat. In addition, each pole has two terminals which can be used as a jumper wire
Ultra-Miniature Switch with LED - LED is built into miniature housing
Compatible With Lead-Free Soldering (TM Series) - Heat-resistant resin for lead-free soldering
