Eaton Mounting Plate for use with Push Buttons, 216542 M22-EY1

RS 제품 번호:: 229-9406
제조사 부품 번호:: 216542 M22-EY1
제조업체:: Eaton

Eaton Mounting Plate for use with Push Buttons, 216542 M22-EY1

Subtotal (1 pack of 5 units)*

₩246,870.00

제조사가 재고 비축중

2026년 12월 18일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 +	₩49,374.00	₩246,872.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 229-9406
제조사 부품 번호:: 216542 M22-EY1
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Mounting Plate
	For Use With	Push Buttons
	Standards/Approvals	UL File No.: E29184, CSA, CSA, Class No.: 3211-03, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, UL, UL 508, CSA File No.: 012528, CE, UL Category Control No.: NKCR, IEC/EN 60947-5

	모두 선택
	브랜드 Eaton
	Product Type Mounting Plate
	For Use With Push Buttons
	Standards/Approvals UL File No.: E29184, CSA, CSA, Class No.: 3211-03, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, UL, UL 508, CSA File No.: 012528, CE, UL Category Control No.: NKCR, IEC/EN 60947-5

COO (Country of Origin):: DE

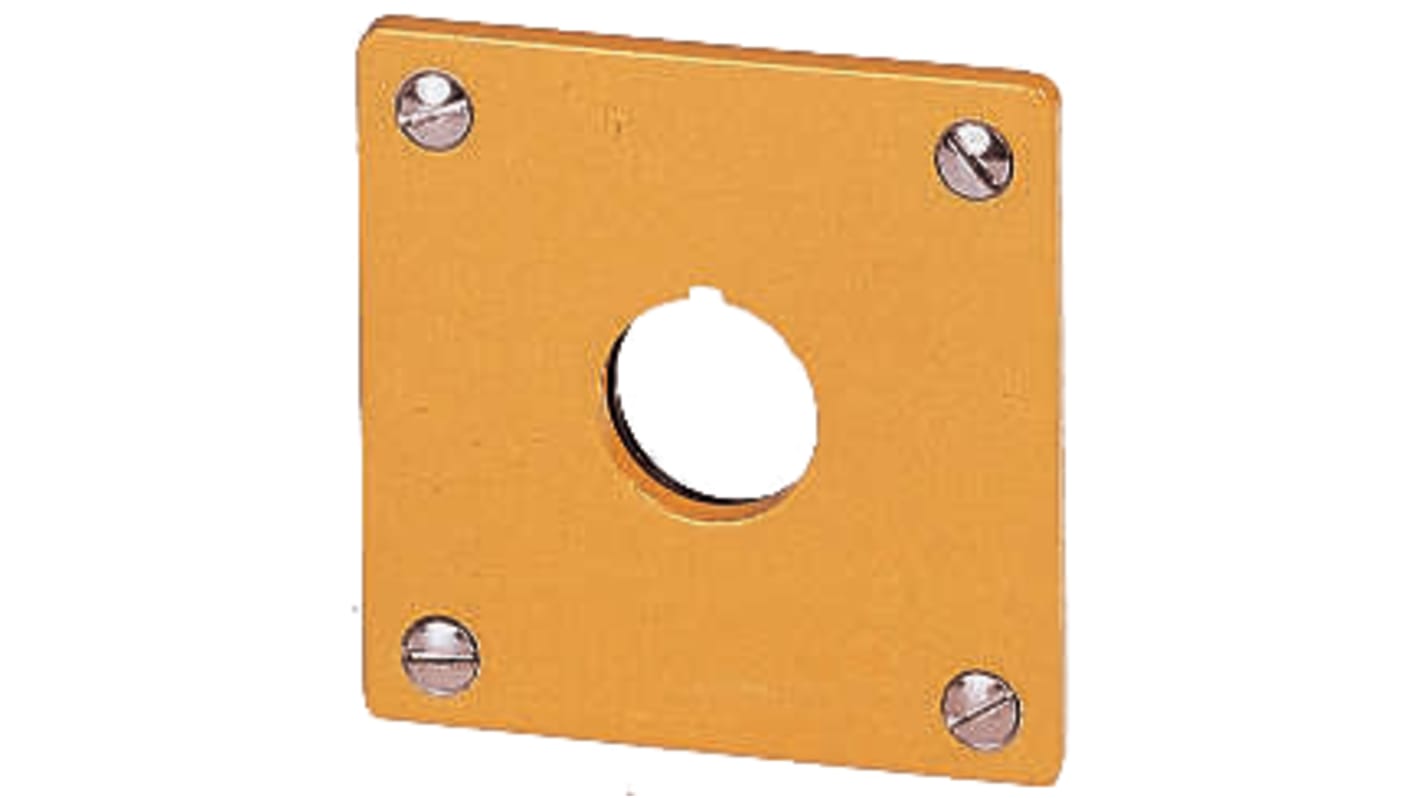

Eaton Mounting Plate, 1 Location, Yellow - 216542 M22-EY1

This mounting plate provides a single-location flush Interface for push buttons in control panels. Constructed with an aluminium actuator component, it is intended for panel builders and control-room installers requiring a metal control panel mounting plate that supports industrial push button mounting plate installations while maintaining protection when used with a suitable enclosure.

Features and Benefits:

• IP65 Degree of Protection ensures sealed installations
• Operates between -25°C and 70°C for wide ambient ranges
• 22mm Opening Diameter accepts standard pushbutton cut-outs
• Aluminium actuator offers Durable mechanical Interface
• NEMA 4X,13 rating supports harsh indoor environments

Applications

• Used with push buttons in machine control panels
• Suitable for retrofit of control enclosures requiring a flush plate
• Ideal for industrial push button mounting plate assemblies
• Used for control stations requiring Compact single-location mounting

What approvals confirm compatibility with international control standards?

It holds UL File No. E29184, UL 508 and IEC/EN 60947-5 approvals.

Which certifications indicate North American regulatory acceptance?

The product is CSA listed with CSA File No. 012528 and CSA Class No. 3211-03.

How should it be installed to achieve IP65 protection?

IP65 is achieved only when mounted correctly into a suitable enclosure with proper sealing.

What is the product's physical footprint?

The plate measures 72mm height and 72mm width with a 3mm depth.

What must panel builders verify regarding electrical integration?

Short-circuit rating, connections for external conductors and internal circuit integrity remain the panel builder’s responsibility.

Note

Eaton formerly known as Moeller
