RS PRO Process Pump Controller for Brushless Micropump, 6 → 28V
- RS 제품 번호:
- 125-3567
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩125,726.88
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩125,726.88 |
| 5 + | ₩103,471.44 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 125-3567
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Compatible Pump Type | Brushless Micropump | |
| Supply Voltage | 12 → 30 V dc | |
| Connection | 2 Screw Terminal (Input), 3 Screw Terminal (Output) | |
| IP Rating | IP20 | |
| Maximum Output Pressure | 10bar | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Compatible Pump Type Brushless Micropump | ||
Supply Voltage 12 → 30 V dc | ||
Connection 2 Screw Terminal (Input), 3 Screw Terminal (Output) | ||
IP Rating IP20 | ||
Maximum Output Pressure 10bar | ||
- COO (Country of Origin):
- GB

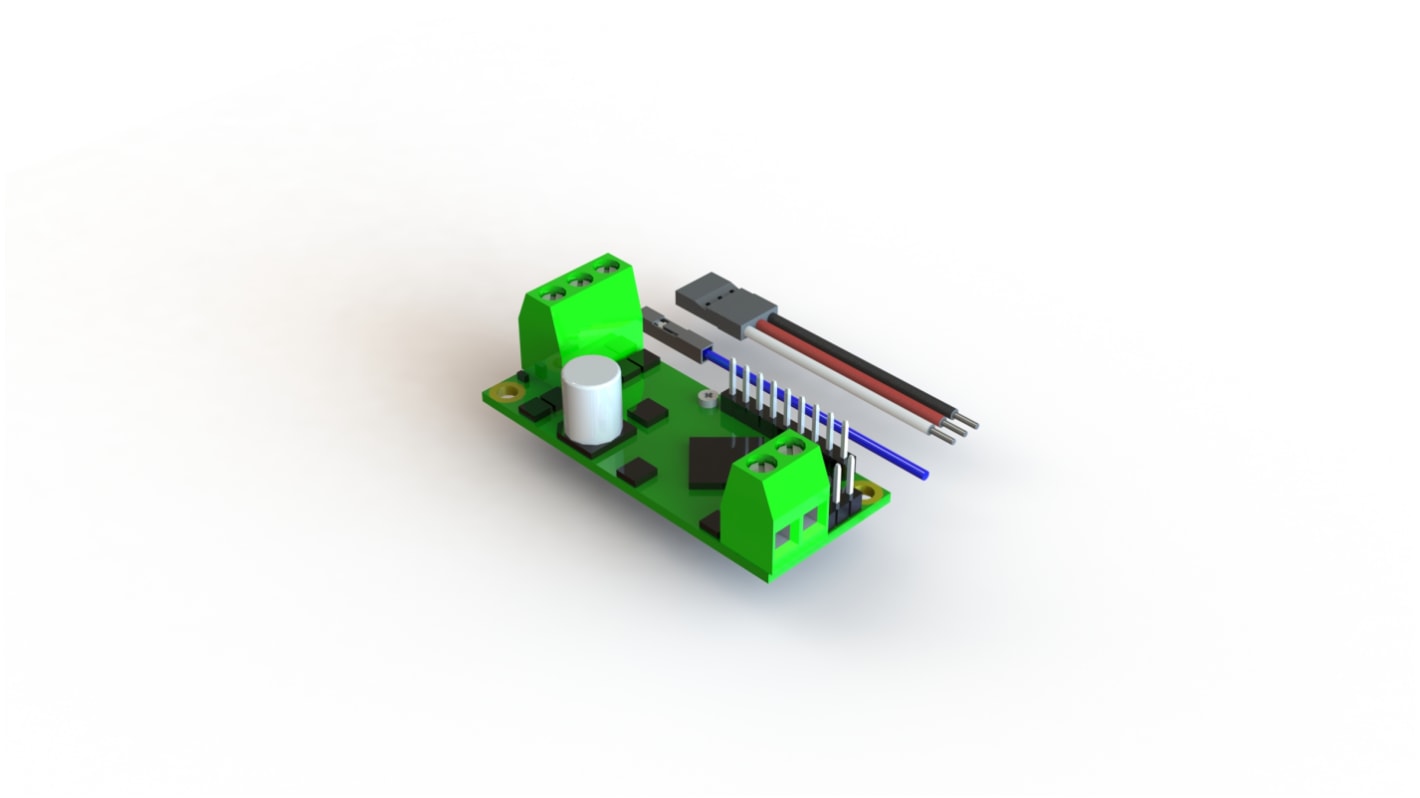

Brushless Micro Pump Controller
A compact and highly efficient motor controller for the RS Pro range of centrifugal micro-pumps.
The EQi controller accepts and input voltage of up to 30 volts and pump speed can be controlled from a potentiometer on the board or via a 0-5v external signal. With voltages above 12v the controller works to maintain a constant flow despite the increase in back pressure helping to provide a flatter flow – pressure curve.
Installation is easy, simply wire the two input terminals, attach the three outputs to the micro-pump and set the jumper position for on board speed control or control via an external 0-5v signal.
The EQi controller accepts and input voltage of up to 30 volts and pump speed can be controlled from a potentiometer on the board or via a 0-5v external signal. With voltages above 12v the controller works to maintain a constant flow despite the increase in back pressure helping to provide a flatter flow – pressure curve.
Installation is easy, simply wire the two input terminals, attach the three outputs to the micro-pump and set the jumper position for on board speed control or control via an external 0-5v signal.
Applications
The EQi controller's compact dimensions, ease of installation and efficency make it suitable for a broad range of applicatiosn including
• Research and development
• Laboratory equipment
• Prototyping
• Production equipment
• Research and development
• Laboratory equipment
• Prototyping
• Production equipment
