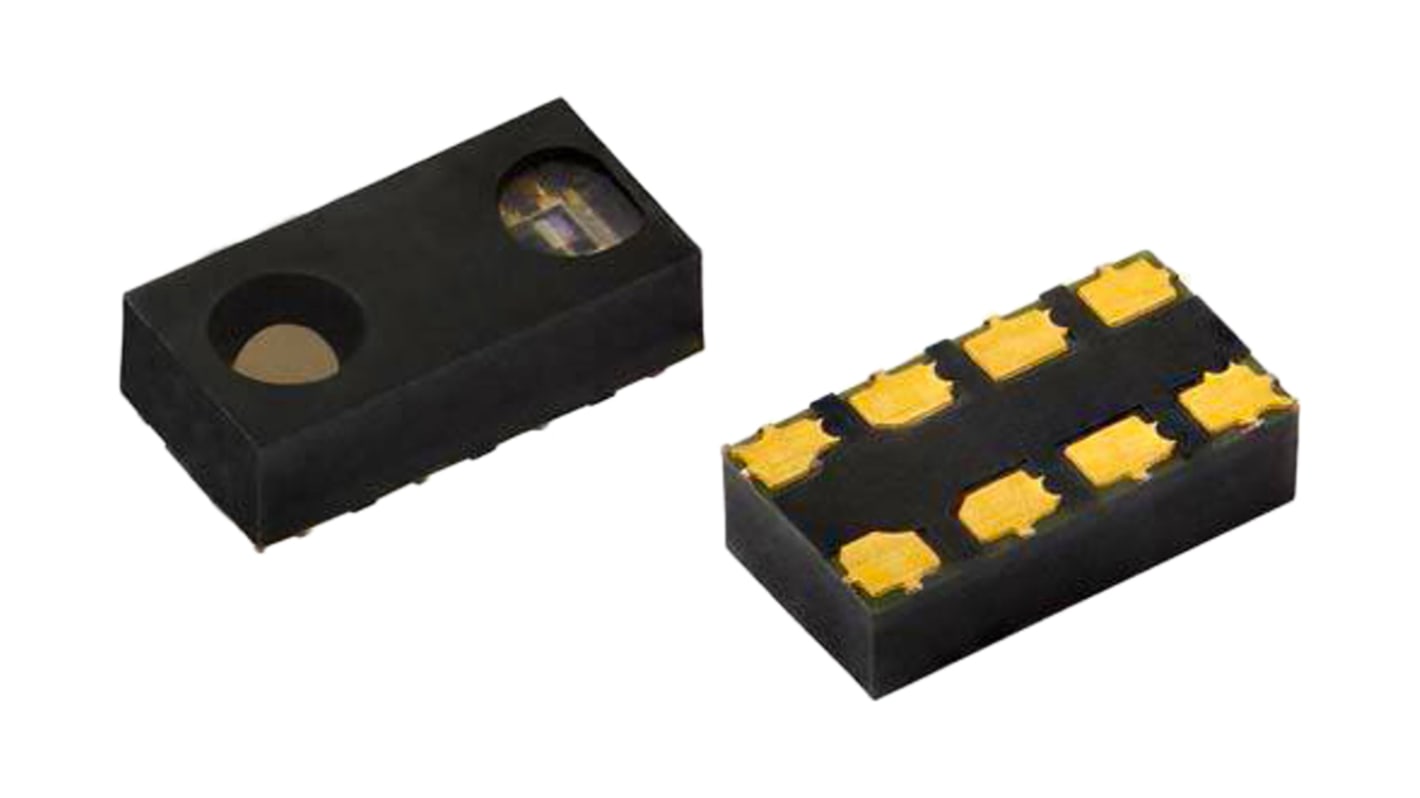

Vishay VCNL4040 Proximity Light Sensor 200 mm 2.5 V 3.6V 8 8-Pin Molding

Name: Vishay VCNL4040 Proximity Light Sensor 200 mm 2.5 V 3.6V 8 8-Pin Molding
Brand: Vishay
SKU: 122-6795
Availability: InStock

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 pack of 10 units)*

₩20,760.00

마지막 RS 재고

* 참고 가격: 실제 구매가격과 다를 수 있습니다

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Vishay
	Product Type	Proximity Light Sensor
	Maximum Switching Frequency	400kHz
	Maximum Output Current	200mA
	Sensing Distance	200mm
	Output Type	Digital, Open Drain
	Mount Type	Surface
	Package Type	8-Pin Molding
	Pin Count	8
	Length	4mm
	Width	2mm
	Height	1.1mm
	Minimum Supply Voltage	2.5V
	Series	VCNL4040
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C
	Maximum Supply Voltage	3.6V
	Automotive Standard	No

	모두 선택
	브랜드 Vishay
	Product Type Proximity Light Sensor
	Maximum Switching Frequency 400kHz
	Maximum Output Current 200mA
	Sensing Distance 200mm
	Output Type Digital, Open Drain
	Mount Type Surface
	Package Type 8-Pin Molding
	Pin Count 8
	Length 4mm
	Width 2mm
	Height 1.1mm
	Minimum Supply Voltage 2.5V
	Series VCNL4040
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C
	Maximum Supply Voltage 3.6V
	Automotive Standard No

The VCNL4040 is a fully integrated Proximity and Ambient Light Sensor. An Infrared emitter is included in the package.

I²C serial communication interface

16-Bit effective resolution

Robust background light cancellation (including sunlight)

Programmable interrupt function output

Operation voltage from 2.5 V to 3.6 V
