Skyworks Solutions Inc Power-over-Ethernet PSE Controller 38-Pin QFN

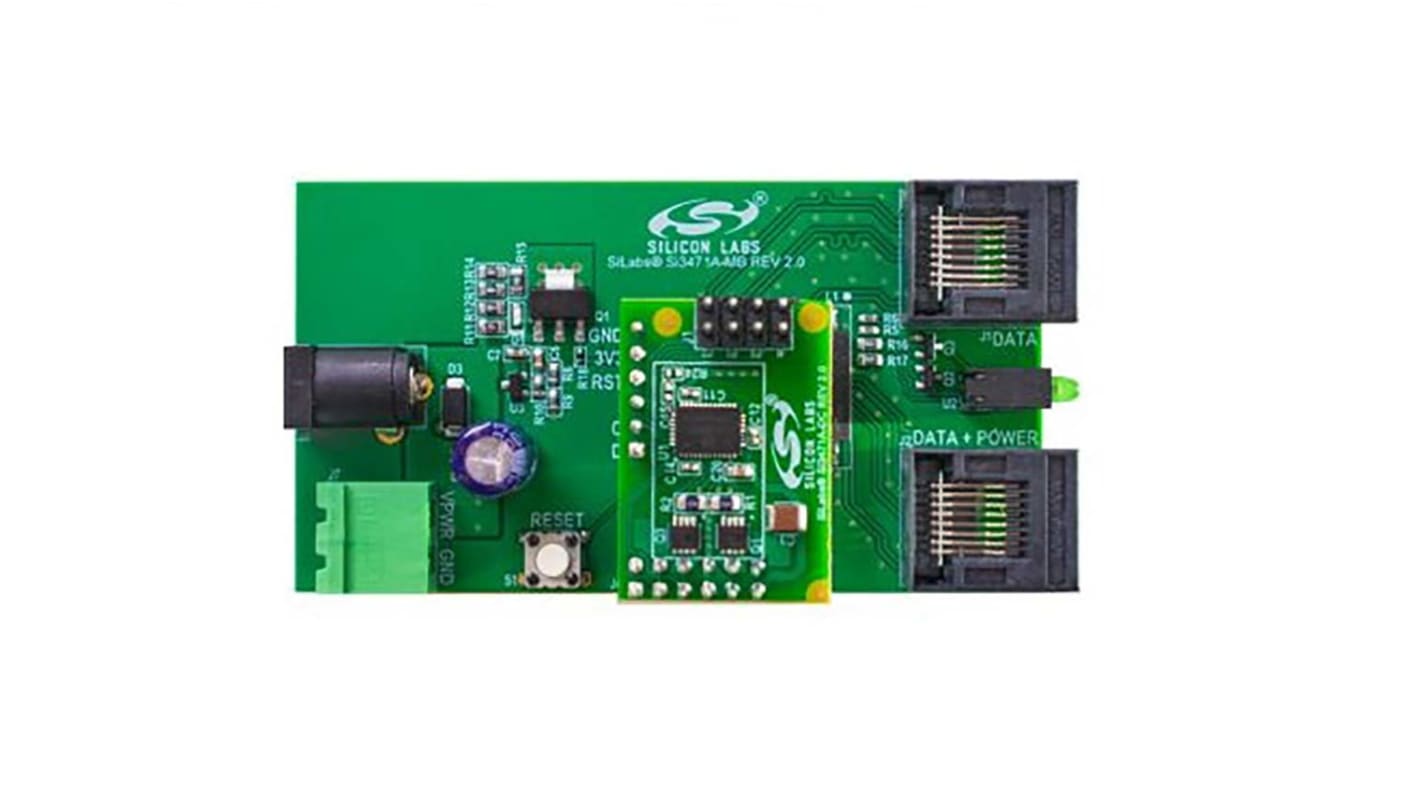

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Power over Ethernet 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 31 units)*

₩178,932.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 3,162 개 unit(s)이 배송 준비 됨

수량
한팩당
Per Tube*
31 - 31₩5,772.00₩178,914.45
62 - 93₩5,627.70₩174,447.00
124 +₩5,539.95₩171,756.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
200-3697
제조사 부품 번호:
Si3471A-A01-IM
제조업체:
Skyworks Solutions Inc
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Skyworks Solutions Inc

Product Type

Power-over-Ethernet PSE Controller

Minimum Supply Voltage

44V

Maximum Supply Voltage

57V

Height

0.85mm

Standards/Approvals

No

Length

7mm

Pin Count

38

Package Type

QFN

PoE Standard

802.3bt

Number of PSE Ports

2

Minimum Operating Temperature

-40°C

PoE Controller Type

Power Sourcing Equipment (PSE)

Power at Powered Device

90W

Maximum Operating Temperature

85°C

Mount Type

Surface

Automotive Standard

No

Supply Current

25mA

The Silicon Lab Si3471 is a fully autonomous Power over Ethernet (PoE) Power Sourcing Equipment (PSE) device. It is fully IEEE 802.3bt compliant and compatible with IEEE 802.3af and 802.3at. It is optimized for use in PSE mid-spans and injectors that do not require a host or MCU. The Si3471 integrates one Ethernet port with the IEEE-required powered device (PD) detection and classification functionality. In addition, it features powered device (PD) disconnect using dc sense algorithms and a robust multipoint detection algorithm. Intelligent protection circuitry includes input under voltage detection, output current limit, and short-circuit protection.

Single Ethernet port PoE Power Sourcing Equipment (PSE) device

IEEE 802.3bt compliant

IEEE 802.3af and 802.3at compatible

Multi-point detection
