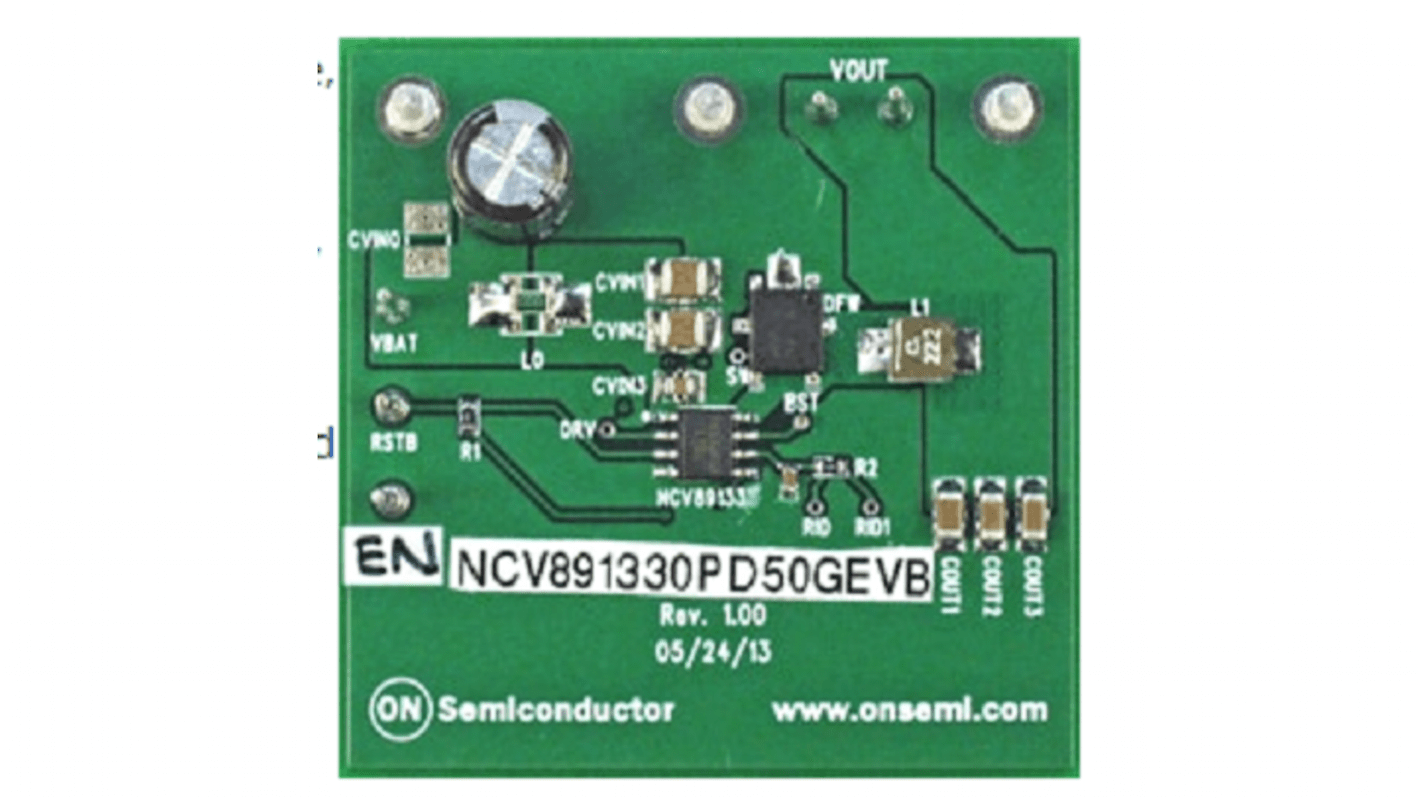

onsemi Step Down Regulator Step Down Regulator for NCV891330 for Audio
- RS 제품 번호:
- 248-5399
- 제조사 부품 번호:
- NCV891330PD50GEVB
- 제조업체:
- onsemi
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 248-5399
- 제조사 부품 번호:
- NCV891330PD50GEVB
- 제조업체:
- onsemi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | onsemi | |
| Product Type | Evaluation Board | |
| Power Management Function | Step Down Regulator | |
| For Use With | Audio | |
| Kit Classification | Evaluation Board | |
| Featured Device | NCV891330 | |
| Kit Name | Step Down Regulator | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 onsemi | ||
Product Type Evaluation Board | ||
Power Management Function Step Down Regulator | ||
For Use With Audio | ||
Kit Classification Evaluation Board | ||
Featured Device NCV891330 | ||
Kit Name Step Down Regulator | ||
Standards/Approvals RoHS | ||
The On Semiconductor Dual Mode regulator intended for Automotive, battery−connected applications that must operate with up to a 45 V input supply, , it operates either as a PWM Buck Converter or as a Low Drop−Out Linear Regulator, and is suitable for systems with low noise and Low Quiescent Current requirements often encountered in automotive driver information systems and also provides several protection features expected in automotive power supply systems such as current limit, short circuit protection, and thermal shutdown.
3.0 A Maximum output current in PWM Mode
Internal N−channel power switch
VIN operating range 3.7 V to 36 V
Withstands load dump to 45 V
Logic level enable pin can be tied to battery
Fixed output voltage of 5.0 V, or 3.3 V
2 MHz free−running switching frequency
±2 percent output voltage accuracy
