MikroElektronika Multi Stepper Click - TB67S209 Stepper Motor Driver for TB67S209FTG for Stepper Motor

본 제품군 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩55,520.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 10월 05일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 4₩55,520.00
5 +₩53,880.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
247-5788
제조사 부품 번호:
MIKROE-5042
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Power Management Function

Stepper Motor Driver

Product Type

Motor & Robotic Development Tool

For Use With

Stepper Motor

Kit Classification

Add On Board

Featured Device

TB67S209FTG

Kit Name

Multi Stepper Click - TB67S209

Standards/Approvals

RoHS

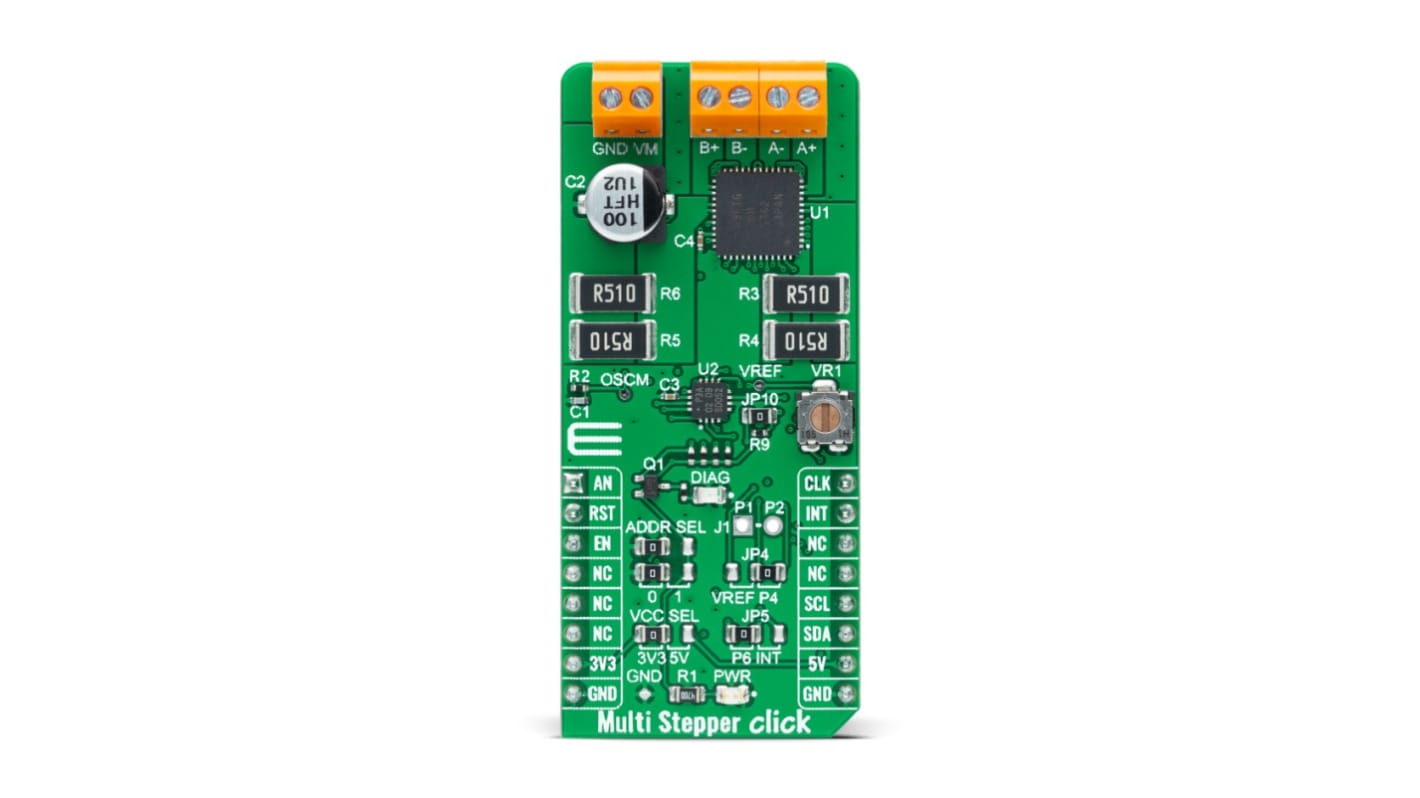

The MikroElektronika Multi Stepper Click is a compact add on board that contains a bipolar stepper motor driver. This board features the TB67S209FTG which is a Clock in controlled bipolar stepping motor driver from Toshiba Semiconductor. It supports a PWM constant current control drive, selectable mixed decay mode, and allows from full step up to 1 to 32 steps resolution for less motor noise and smoother control. It has a wide operating voltage range of 10V to 47V with an output current capacity of 2.8A in addition to several built in error detection circuits. This Click board makes the perfect solution for stepping motors in various applications such as office automation, commercial, and industrial equipment.

Low power consumption

Capable of controlling 1 bipolar stepping motor

From full step up to 1/32 steps resolution

Built in clock decoder

Selectable mixed decay mode

Integrated error detection circuits
