MikroElektronika Stepper 17 Click Stepper Motor Driver for TB67S539FTG for mikroBUS Socket

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩45,796.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩45,796.80
5 +₩44,875.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
247-5625
제조사 부품 번호:
MIKROE-4547
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Power Management Function

Stepper Motor Driver

Product Type

Motor & Robotic Development Tool

For Use With

mikroBUS Socket

Kit Classification

Add On Board

Featured Device

TB67S539FTG

Kit Name

Stepper 17 Click

Standards/Approvals

RoHS

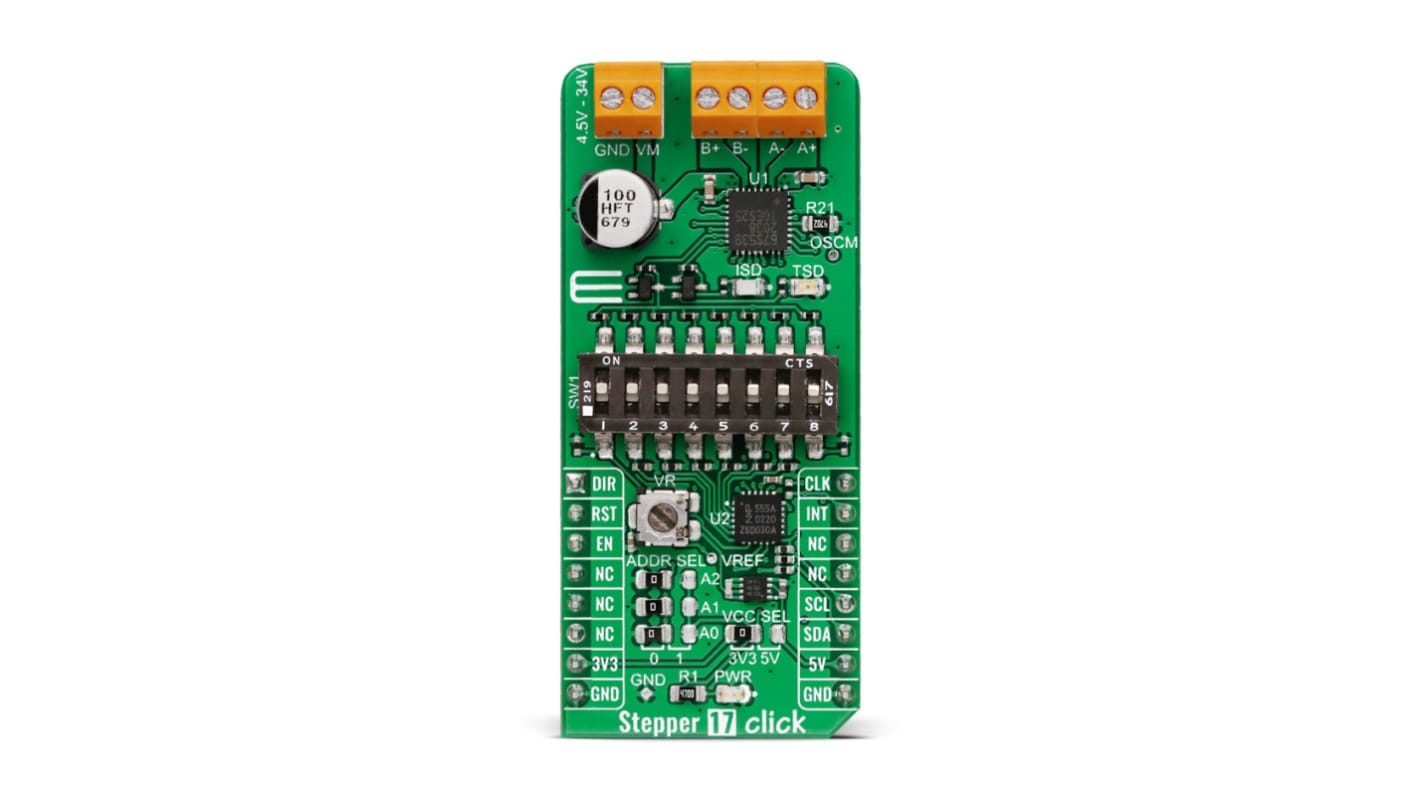

The MikroElektronika Stepper 17 Click is a compact add on board that contains a bipolar stepper motor driver. This board features the TB67S539FTG, a two phase bipolar stepping motor driver using a PWM chopper from Toshiba Semiconductor. It supports a PWM constant current control drive without a current sense resistor for motor current detection and full step to 1 to 32 steps resolution for less motor noise and smoother control. It has a wide operating voltage range of 4.5V to 34V with an output current capacity of 1.8A maximum in addition to several anomaly detection indicators. This Click board makes the perfect solution for small stepping motors in a wide range of applications such as office automation, commercial and industrial equipment.

Low power consumption

Capable of controlling bipolar stepping motor

PWM controlled constant current drive

Operational in full, half, quarter, 1/8, 1/16, and 1/32 step resolutions

Built in a mixed decay mode

Anomaly detection function
