MikroElektronika DC Motor 18 Click DC Motor Driver for TB9051FTG for mikroBUS Socket

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩27,466.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 9 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩27,466.80
5 +₩26,921.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
247-5705
제조사 부품 번호:
MIKROE-4786
제조업체:
MikroElektronika
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MikroElektronika

Power Management Function

DC Motor Driver

Product Type

Motor & Robotic Development Tool

For Use With

mikroBUS Socket

Kit Classification

Add On Board

Featured Device

TB9051FTG

Kit Name

DC Motor 18 Click

Standards/Approvals

RoHS

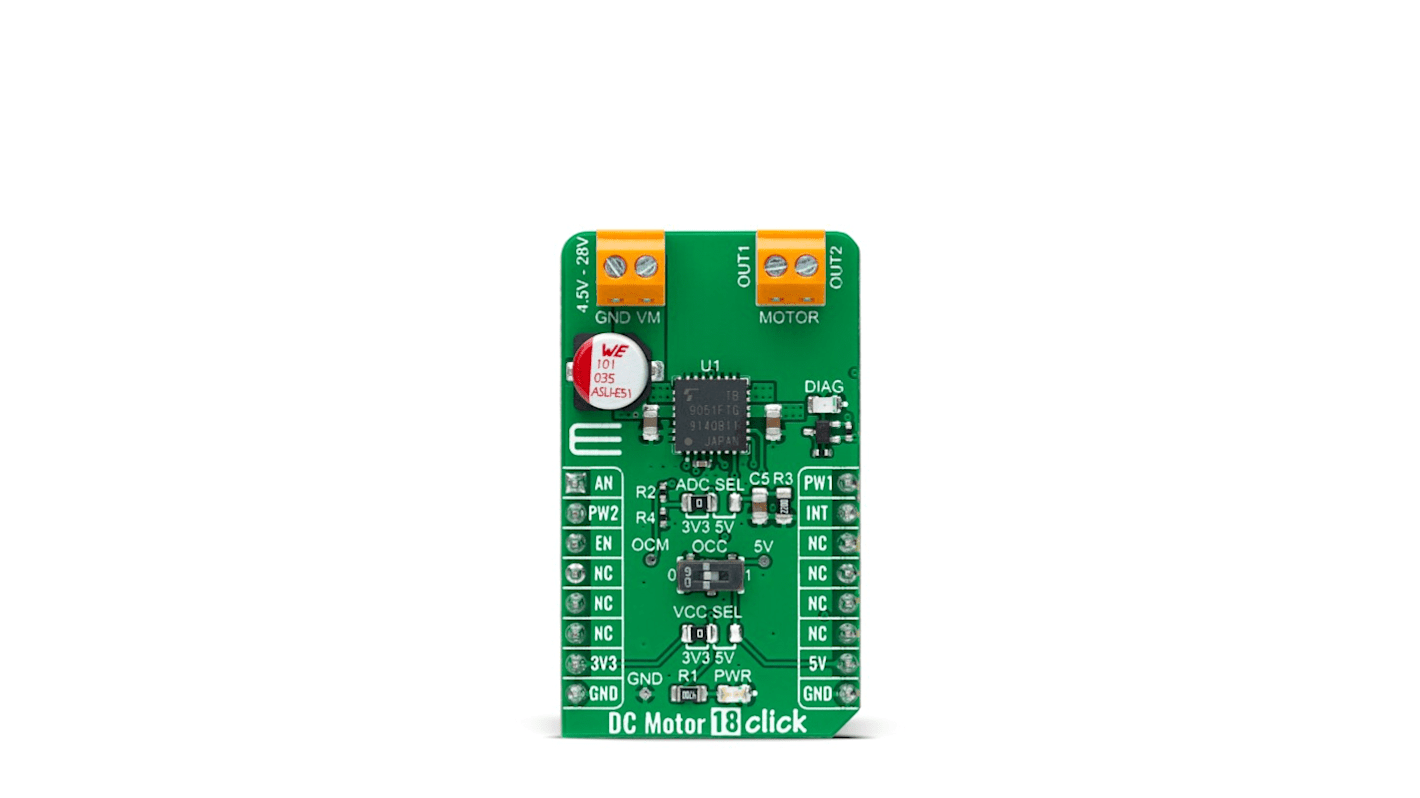

The The MikroElektronika's DC Motor 18 Click is a compact add on board that contains a brushed DC motor driver. This board features the TB9051FTG, an automotive PWM type single channel H Bridge DC brushed motor driver from Toshiba Semiconductor. The Forward, Reverse, Brake mode can be selected according to PWM control signals, while the motor operation and stop mode can be chosen by an enable pin. It has a wide operating voltage range of 4.5V to 28V with an output current capacity of 5A max. Besides, it also features built in protection against under voltage, overcurrent, and over temperature conditions. This Click board is suitable for various automotive applications such as throttle and valve control, various engine bulbs, storing of door mirrors, and seat positioning.

Key Features Low power consumption

Ultra low on resistance

Anomaly detection features

Selectable motor operation

PWM control

High side current monitoring

Diagnosis indicator
