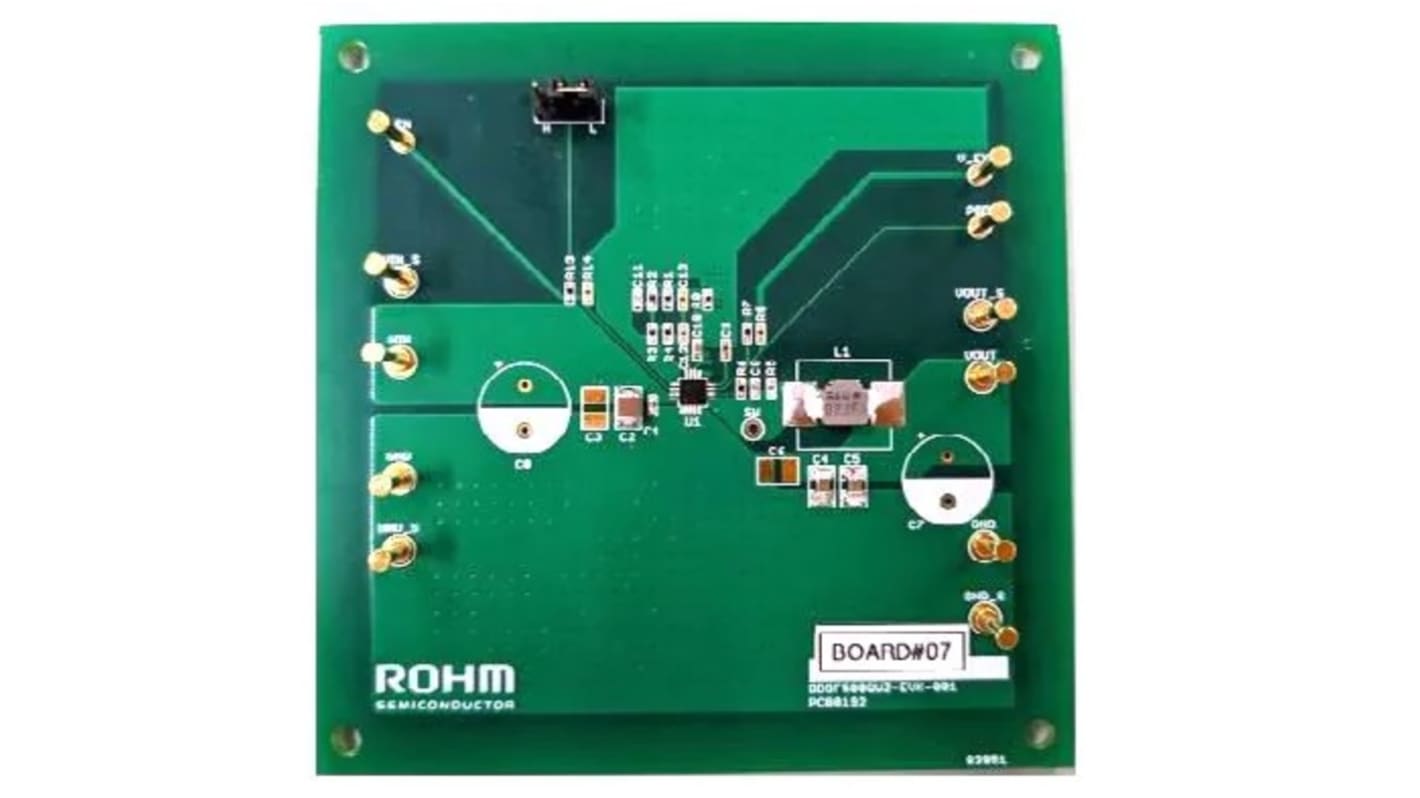

ROHM Evaluation Board of BD9F500QUZ Buck Converter for BD9F500QUZ

RS 제품 번호:: 235-2600
제조사 부품 번호:: BD9F500QUZ-EVK-001
제조업체:: ROHM

ROHM Evaluation Board of BD9F500QUZ Buck Converter for BD9F500QUZ

Subtotal (1 unit)*

₩65,330.00

마지막 RS 재고

최종적인 4 개 unit(s)이 배송 준비 됨

수량	한팩당
1 +	₩65,330.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 235-2600
제조사 부품 번호:: BD9F500QUZ-EVK-001
제조업체:: ROHM

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ROHM
	Power Management Function	Buck Converter
	Product Type	Evaluation Board
	For Use With	BD9F500QUZ
	Kit Classification	Evaluation Board
	Kit Name	Evaluation Board of BD9F500QUZ
	Standards/Approvals	No

	모두 선택
	브랜드 ROHM
	Power Management Function Buck Converter
	Product Type Evaluation Board
	For Use With BD9F500QUZ
	Kit Classification Evaluation Board
	Kit Name Evaluation Board of BD9F500QUZ
	Standards/Approvals No

Datasheet - BD9F500QUZ-EVK-001

The ROHM BD9F500QUZ evaluation board which has input voltage from 4.5V to 36V and the output voltage is configurable from 0.6V to 14 with external resistors. The operating frequency is configurable between 600 kHz, 1 MHz and 2.2 MHz. It is a fixed on-time controlled DC/DC converter that provides fast transient response. The light-load mode control improves efficiency at light loads which makes it ideal for devices that require less standby power.

Soft start function which prevents inrush current at start-up

Under voltage lock out

Thermal shutdown detection

Over current protection

Short circuit protection

ROHM Evaluation Board of BD9F500QUZ Buck Converter for BD9F500QUZ
