STMicroelectronics Evaluation Board for L99ASC03G Three-Phase Pre-Driver for L99ASC03 for L99ASC03G Three-Phase

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩591,448.00

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩591,448.00
5 +₩579,604.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
175-1100
제조사 부품 번호:
EVAL-L99ASC03
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

For Use With

L99ASC03G Three-Phase Pre-Driver

Kit Classification

Evaluation Board

Featured Device

L99ASC03

Kit Name

Evaluation Board for L99ASC03G Three-Phase Pre-Driver

COO (Country of Origin):
IT

STMicroelectronics Evaluation Board

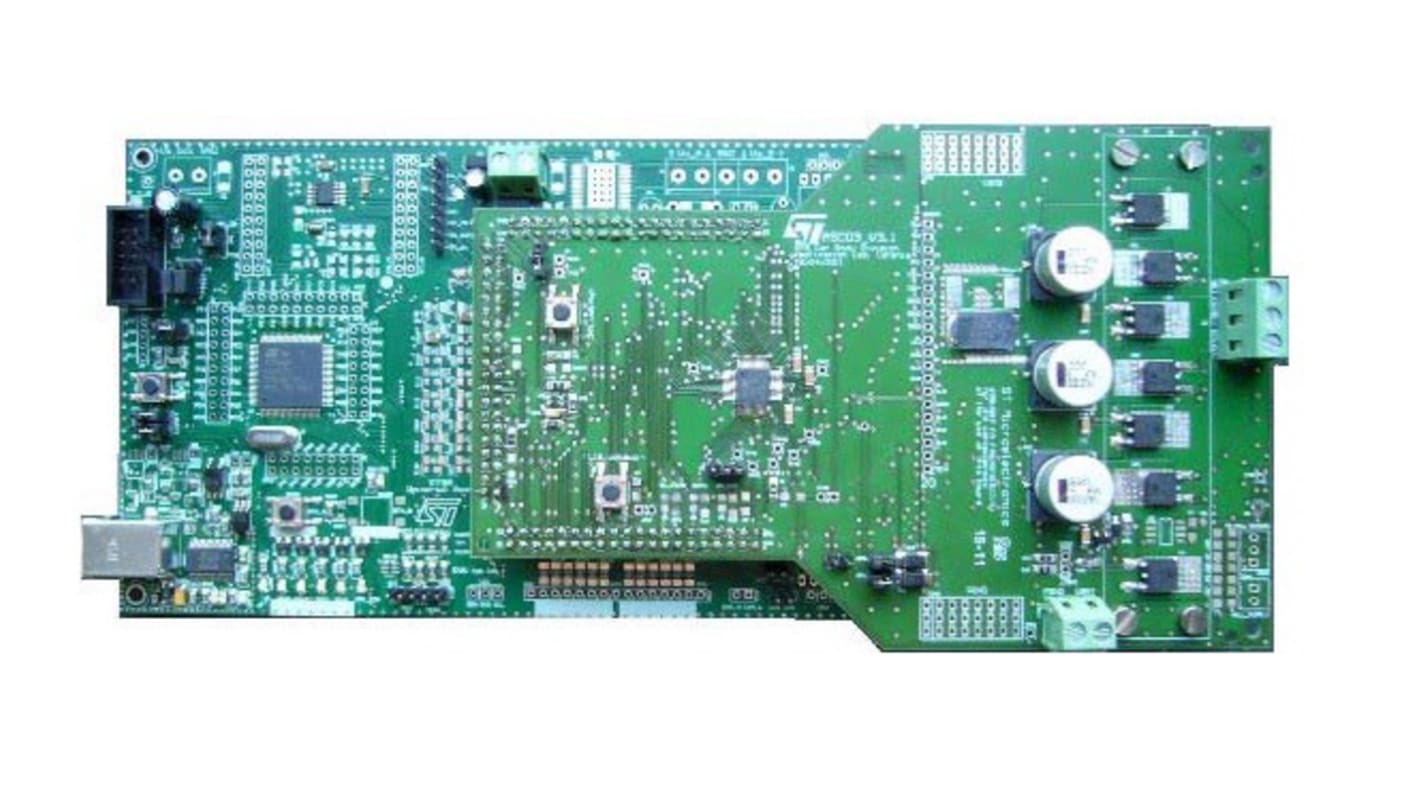

The STMicroelectronics evaluation board is designed for sensorless 3Phase BLDC motor control and composed by a motherboard and a daughterboard with pre-assembled L99ASC03 IC. This system enhanced power management power supply functionalities including various standby modes. It is based on STM8 microcontroller, provides the logic section for monitoring and driving the IC.

Features and Benefits:


• Compatible with external power boards

• Current reference comparator

• Flash mode configurable

• Hall sensors connector and conditioning circuit

• INH_wake up button

• Microcontroller configured to be supplied by L99ASC03 5V LDO

• PCB temperature sensor

• Pulse protection (not soldered)

• Reverse polarity protection available on each battery voltage input: Vs, VSREG, power stage

• Two separated and signal shielded stages: driver and power
