STMicroelectronics STSPIN32F0A Advanced 3-Phase BLDC Driver Brushless DC Motor for STEVAL-SPIN3202 for STM32 PMSM FOC

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩88,190.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 14 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 - 4₩88,190.80
5 +₩86,423.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
164-6955
제조 부품 번호:
STEVAL-SPIN3202
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Evaluation Board

Power Management Function

Brushless DC Motor

For Use With

STM32 PMSM FOC

Kit Classification

Evaluation Board

Featured Device

STEVAL-SPIN3202

Kit Name

STSPIN32F0A Advanced 3-Phase BLDC Driver

Standards/Approvals

RoHS

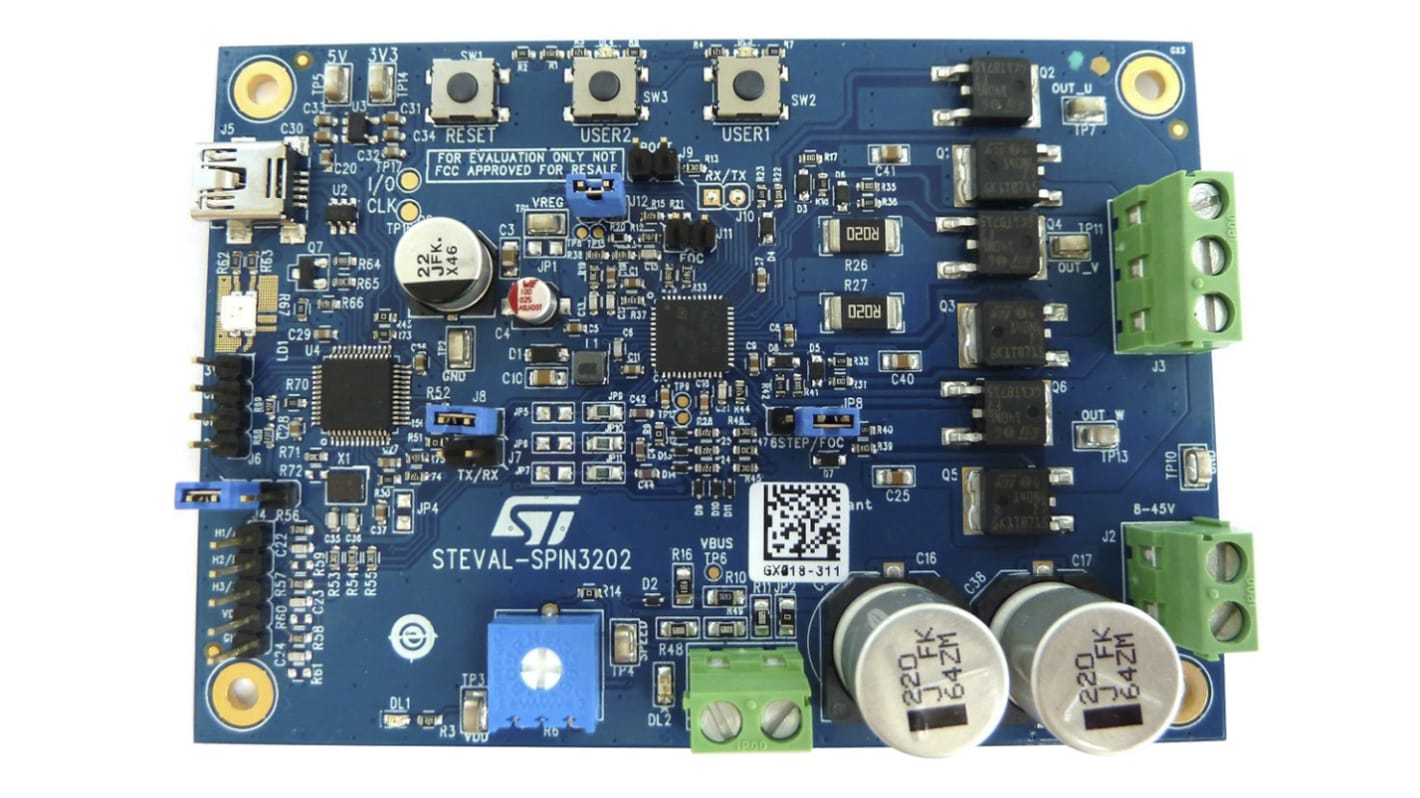

The STEVAL-SPIN3202 three-phase brushless DC motor driver board is an evaluation board based on the STSPIN32F0A and STD140N6F7 MOSFETs. It provides an affordable and easy-to-use solution for the implementation of low voltage motor driving applications. The board is designed for sensored or sensorless vector control - FOC and six-step algorithms with single shunt sensing.

Input voltage from 7 V to 45 V

Output current up to 15 Arms

Power stage based on STD140N6F7 MOSFETs

Embedded 3.3 V buck regulator

Embedded 12 V LDO regulator

Single shunt current sensing

Digital Hall sensors and encoder input

Overcurrent comparator

Bus voltage sensing

Fully compatible with STM32 PMSM FOC software development kit

6-step sensorless and sensored firmware supported

Embedded ST-LINK/V2-1

Easy user interface with buttons and trimmer

STM32 FW boot loader supported
