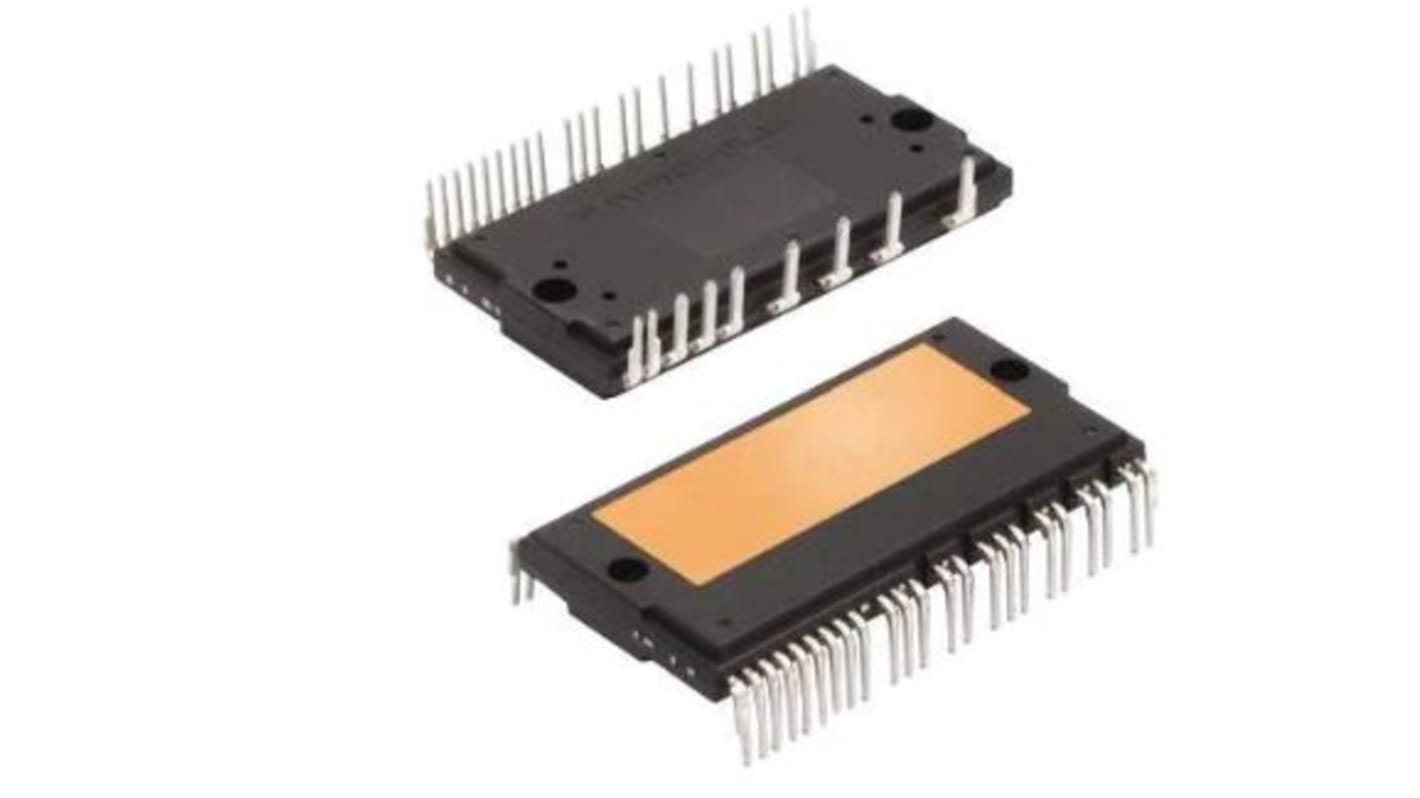

onsemi, Power Factor Pre-Regulator Circuit IC 20 kHz 32-Pin, S32EA 253Vrms

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Power Factor Correction 열람하기
대량 구매 할인 받기

24개 더 담고 1% 할인 받기

View bulk pricing options

Subtotal 12 units (supplied in a tube)*

₩569,280.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 38 개 unit(s)이 배송 준비 됨

수량
한팩당
절감
12 - 23₩47,440.00-
24 +₩46,740.001%

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
181-1941P
제조사 부품 번호:
FPAM30LH60
제조업체:
onsemi
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

onsemi

Product Type

Power Factor Pre-Regulator Circuit IC

Sub Type

Power Factor Pre-Regulator Circuit

Switching Frequency

20kHz

Maximum Sink Current

1mA

Supply Current

2.65mA

Zero Power Detection

No

Mount Type

Through Hole

Package Type

S32EA

Pin Count

32

Minimum Supply Voltage

187Vrms

Maximum Supply Voltage

253Vrms

Minimum Operating Temperature

-40°C

Standards/Approvals

No

Series

FPAM30LH

Height

7.3mm

Length

60.5mm

Maximum Operating Temperature

125°C

Automotive Standard

No

COO (Country of Origin):
CN
The FPAM30LH60 is a PFC SPM® 2 module providing a fully-featured, high-performance Interleaved PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature a fullwave rectifier and high-performance output diodes for additional space savings and mounting convenience.

600 V - 30 A 2-Phase Interleaved PFC with Integral Gate Driver and Protection

Very Low Thermal Resistance Using Al2O3 DBC Substrate

Full-Wave Bridge Rectifier and High-Performance Output Diode

Optimized for 20kHz Switching Frequency

Built-in NTC Thermistor for Temperature Monitoring

Isolation Rating: 2500 Vrms/min

Motion Control - Home Appliance/Industrial Motor
