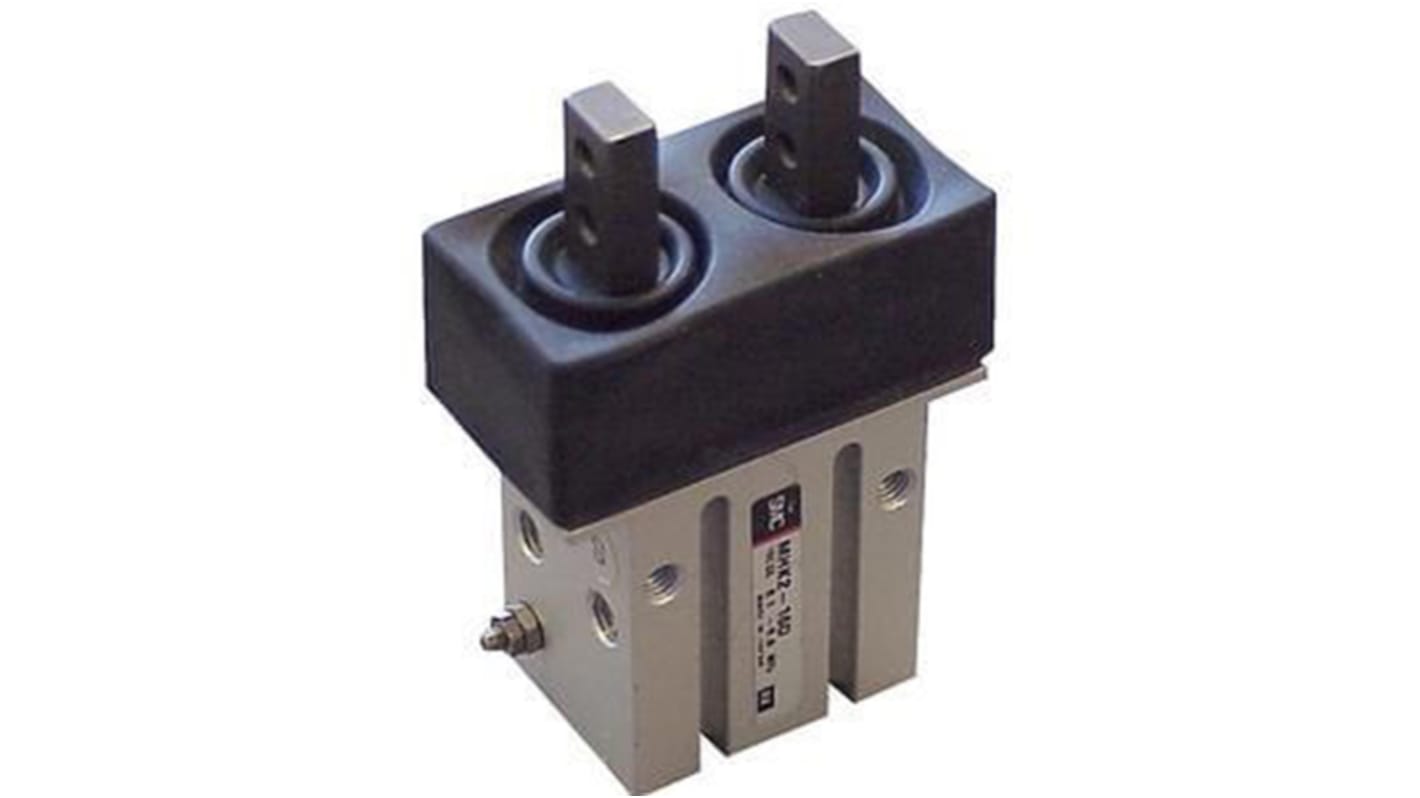

SMC 2 Finger Double Acting Action Pneumatic Gripper, MHKL2-20D, Parallel Gripping Type
- RS 제품 번호:
- 235-3293
- 제조사 부품 번호:
- MHKL2-20D
- 제조업체:
- SMC
Subtotal (1 unit)*
₩1,150,420.00
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,150,420.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 235-3293
- 제조사 부품 번호:
- MHKL2-20D
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Bore Diameter | 20mm | |
| Gripping Type | Parallel | |
| Stroke Length | 18mm | |
| Action Type | Double Acting | |
| Series | MHK | |
| Port Size | M5 x 0.8 | |
| Weight | 312g | |
| Minimum Operating Temperature | -10°C | |
| Open Width | 34mm | |
| Closed Width | 16mm | |
| Gripping Force - External | 45N | |
| Gripping Force - Internal | 53N | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Width | 46mm | |
| Length | 100mm | |
| Height | 27.6mm | |
| Maximum Operating Frequency | 90cpm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Bore Diameter 20mm | ||
Gripping Type Parallel | ||
Stroke Length 18mm | ||
Action Type Double Acting | ||
Series MHK | ||
Port Size M5 x 0.8 | ||
Weight 312g | ||
Minimum Operating Temperature -10°C | ||
Open Width 34mm | ||
Closed Width 16mm | ||
Gripping Force - External 45N | ||
Gripping Force - Internal 53N | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Width 46mm | ||
Length 100mm | ||
Height 27.6mm | ||
Maximum Operating Frequency 90cpm | ||
- COO (Country of Origin):
- JP
The SMC MHK2 series parallel gripper was designed to accommodate applications that require a high degree of accuracy in a wide range of environments. The finger action accuracy is accomplished through the use of a wedge cam mechanism, which allows repeat ability to +/-0.01mm and yields much higher axial load characteristics which permits use in insert press procedures. The gripper body is enhanced by a rear centring hole +/-0.1mm and two location pin holes with H9 tolerance. The MHK2 gripper is standard with a dust cover for protection against direct exposure to harsh environments (available in Chloroprene, Flouro, and Silicone Rubber) and has optional stainless steel fingers.
Bore size 20mm
Action D
Finger material carbon steel
