SKF SYJ 45 TF Pillow Block Bearing -, 45 mm ID
- RS 제품 번호:
- 216-4839
- 제조사 부품 번호:
- SYJ 45 TF
- 제조업체:
- SKF
Subtotal (1 unit)*
₩165,480.00
일시적 품절
- 2026년 10월 21일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩165,480.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 216-4839
- 제조사 부품 번호:
- SYJ 45 TF
- 제조업체:
- SKF
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SKF | |
| Inside Diameter | 45mm | |
| Product Type | Pillow Block Bearing | |
| Material | Steel | |
| Centre Height | 54mm | |
| Static Load Rating | 21.6kN | |
| Locking Type | Set Screw | |
| Mount Hole Size | 17 mm | |
| Length | 190mm | |
| Dynamic Load Rating | 33.2kN | |
| Depth | 52mm | |
| End Type | Open | |
| Mount Hole Centre-to-Centre | 143.5mm | |
| Number of Bolts | 2 | |
| Bore Type | Cylindrical | |
| Height | 107.5mm | |
| Series | SYJ | |
| Standards/Approvals | No | |
| Limiting Speed | 4300rpm | |
| 모두 선택 | ||
|---|---|---|
브랜드 SKF | ||
Inside Diameter 45mm | ||
Product Type Pillow Block Bearing | ||
Material Steel | ||
Centre Height 54mm | ||
Static Load Rating 21.6kN | ||
Locking Type Set Screw | ||
Mount Hole Size 17 mm | ||
Length 190mm | ||
Dynamic Load Rating 33.2kN | ||
Depth 52mm | ||
End Type Open | ||
Mount Hole Centre-to-Centre 143.5mm | ||
Number of Bolts 2 | ||
Bore Type Cylindrical | ||
Height 107.5mm | ||
Series SYJ | ||
Standards/Approvals No | ||
Limiting Speed 4300rpm | ||
- COO (Country of Origin):
- IT

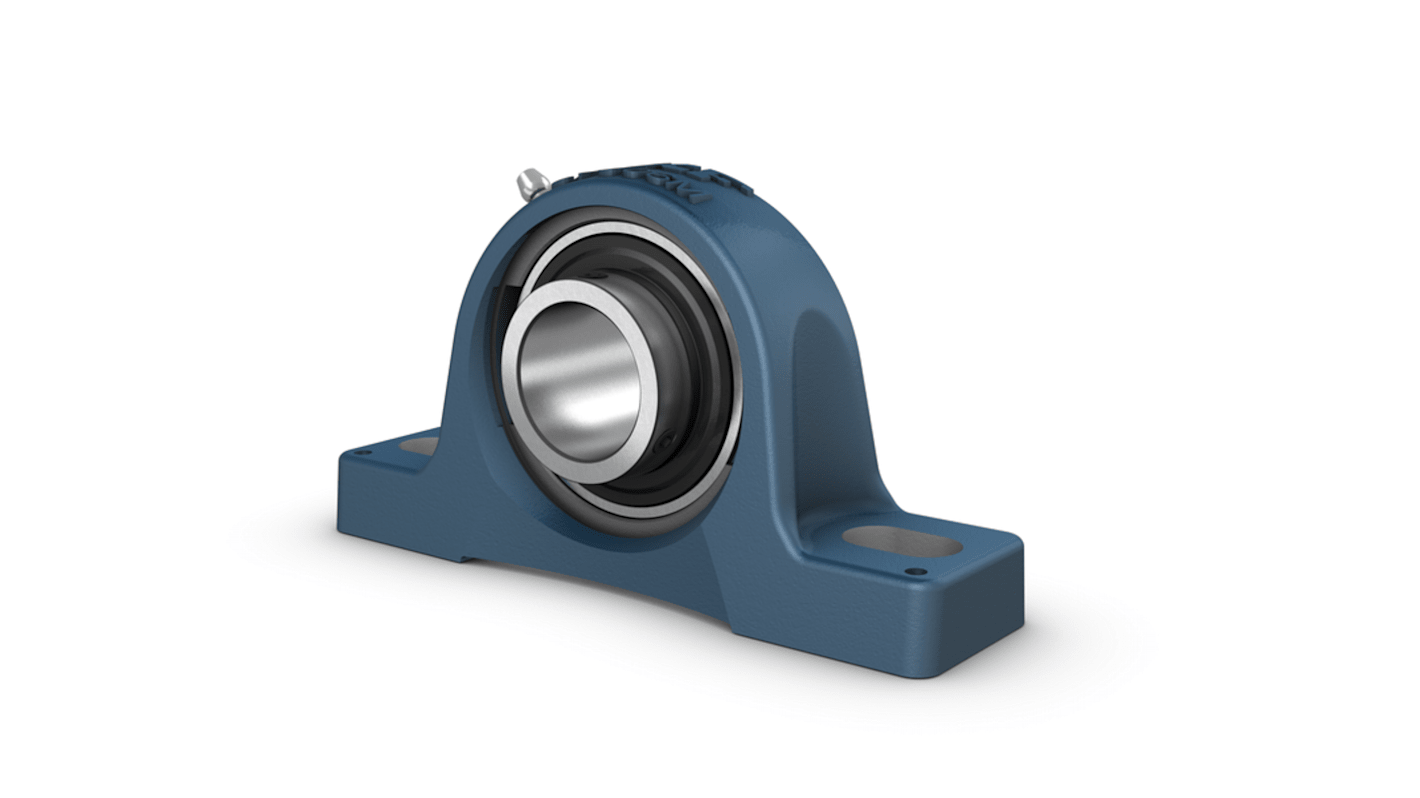

The SKF SY design short base pillow block ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 45mm inside diameter and 190mm overall length. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.
Can withstand sufficient torque as per the industry standards for mounting purposes
Availability of appropriate seals and end covers
Dimensions are as per the suitable application as prescribed by the manufacturer
Uses Bearing Steel as material
Has a cylindrical type bore
