SKF SY 510 M Pillow Block -, 90 mm ID

RS 제품 번호:: 213-2054
제조사 부품 번호:: SY 510 M
제조업체:: SKF

본 제품군 열람하기

Subtotal (1 unit)*

₩78,960.00

재고있음

8 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩78,960.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 213-2054
제조사 부품 번호:: SY 510 M
제조업체:: SKF

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SKF
	Inside Diameter	90mm
	Product Type	Pillow Block
	Material	Cast Iron
	Centre Height	57.2mm
	Mount Hole Size	18 mm
	Length	219mm
	Depth	54mm
	End Type	Open
	Mount Hole Centre-to-Centre	157mm
	Number of Bolts	2
	Bore Type	Cylindrical
	Series	SY
	Standards/Approvals	No
	Height	114mm

	모두 선택
	브랜드 SKF
	Inside Diameter 90mm
	Product Type Pillow Block
	Material Cast Iron
	Centre Height 57.2mm
	Mount Hole Size 18 mm
	Length 219mm
	Depth 54mm
	End Type Open
	Mount Hole Centre-to-Centre 157mm
	Number of Bolts 2
	Bore Type Cylindrical
	Series SY
	Standards/Approvals No
	Height 114mm

COO (Country of Origin):: IT

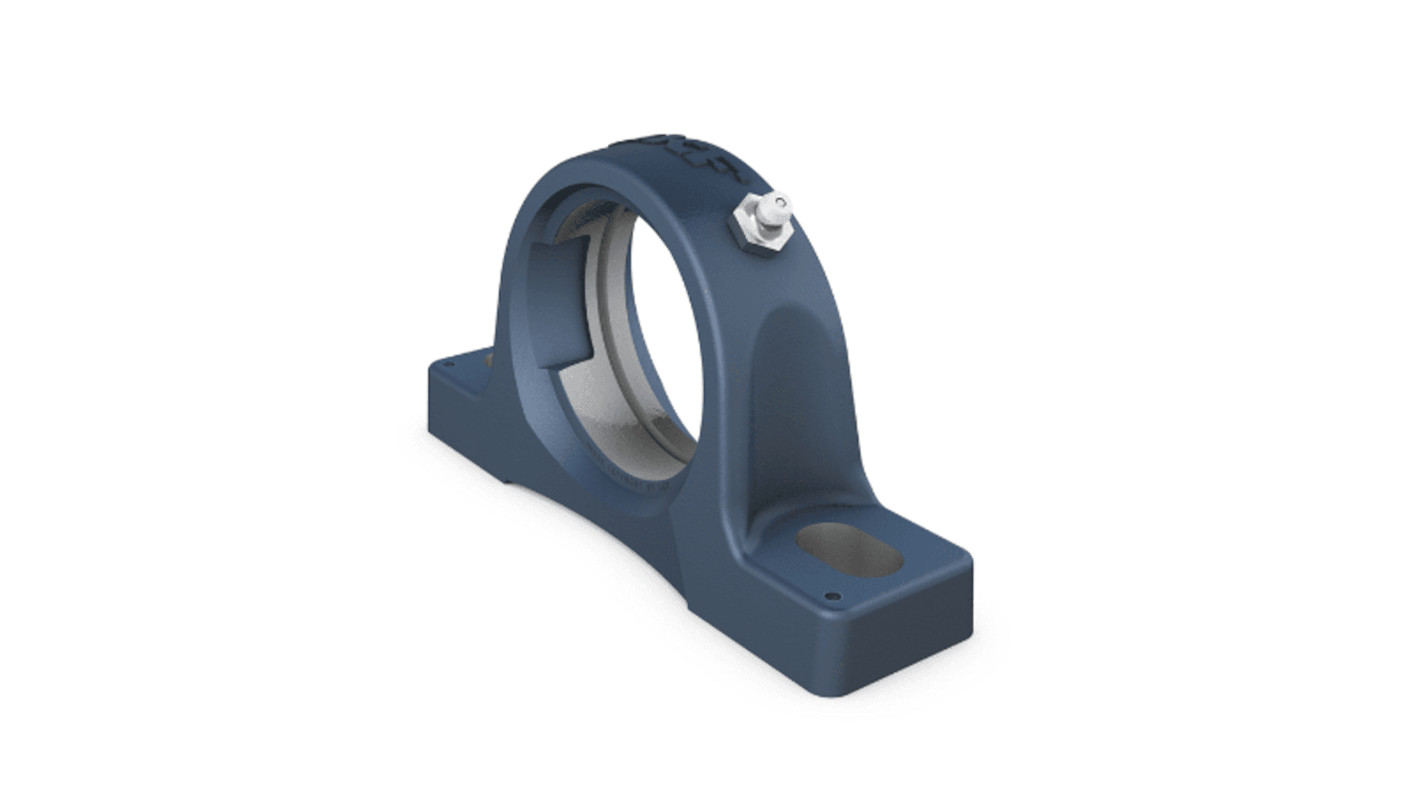

SKF Pillow Block Housing, Y Bearing, 90mm ID, 203mm Length - SY 510 M

Looking for a sturdy, smooth-running support for your 90mm bearing? This pillow block housing from SKF accommodates insert bearings that run in different directions to suit your needs. Thanks to the cast iron construction material that's resistant to mechanical wear and corrosion, this unit is a reliable option for use with heavy-duty applications in damp conditions. Two plain hole fasteners make it easy to install it by bolting it directly onto a flat surface. A weight of 1.9kg means the housing offers stability without putting excess strain on your setup.

• Relubrication nipple and hole makes it easy to grease the installed bearing without needing to dismantle it

• Plain standard bolt hole fasteners make installation easy

• 45° position suits angular contact bearings and their loads

Applications

• Packaging systems

• Agricultural machinery

• Manufacturing facilities

What size attachment bolts does this pillow block need?

You should use 16mm diameter attachment bolts to secure this unit to a stable surface.

What size is this pillow block housing?

The compact block has a centre height of 57.2mm and a length of 219mm.
